823621 Alcoa 22.5 x 12.25 Polished Aluminum Wheel 2.75" offset


Free Shipping!
Add your review

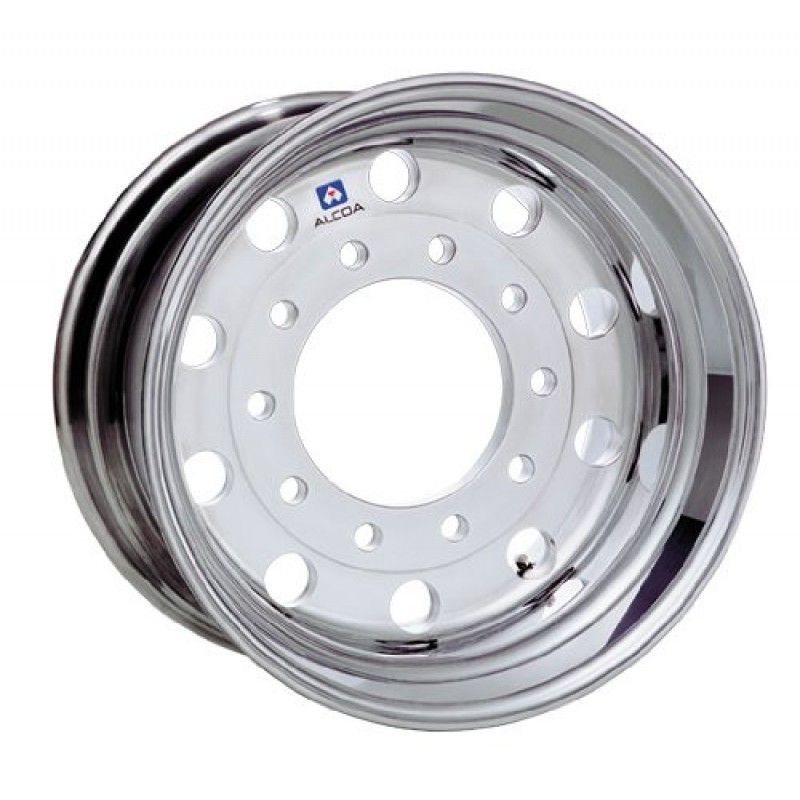

22.5" x 12.25" Hub Pilot 10 Lug Alcoa Super-Single Float 2.75" offset Wheel. Part Number 823621 fits new Peterbilt Heavy Haul & Kenworth Dump Trucks
Vendor: Alcoa
SKU: 823621

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.


If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 823621
Size: 22.5 x 12.25

Finish: High Polish
Position: Front Only
Installed Valve: TR553E
10-Hole, 11.25in Bolt Circle, 8.72in Bore
Wheel Offset: 2.75"
Weight: 62 Lbs
Max Load: 11400lbs @ 125psi

Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

Replaces Part Number:  823651

Approved Tire Size:
  • 385/65R22.5
  • 425/65R22.5

Typical Applications:
    • Cement & Concrete Mixers
    • Waste, Refuse, & Trash Trucks
    • Dump Trucks
    • Heavy Haul Trucks
