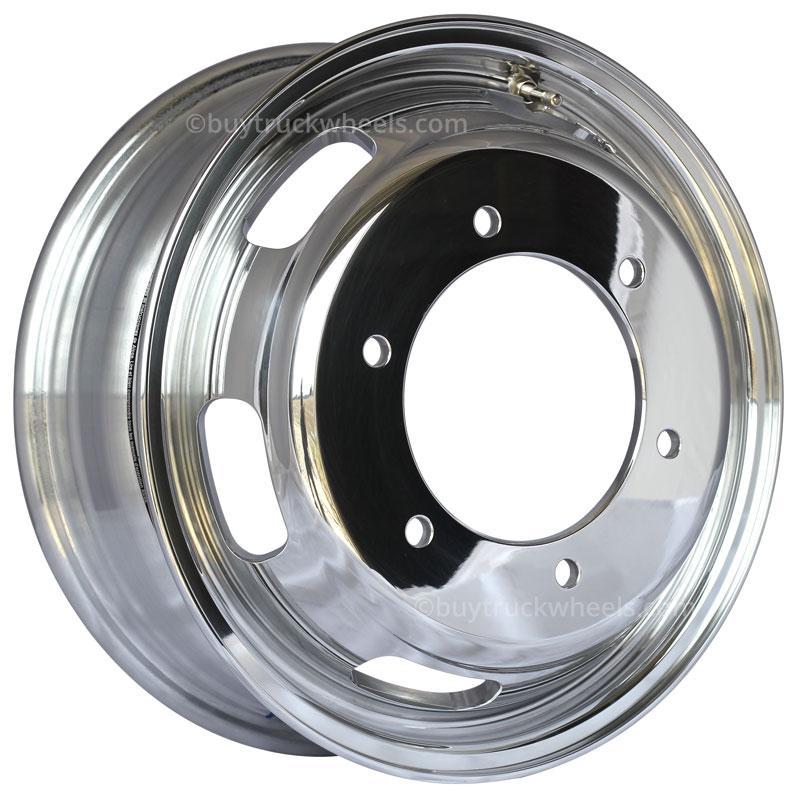

16x5.5 Alcoa 6x205mm Sprinter 3500 Mirror Polished Front

Alcoa Wheels
251801

$329.00

Free Shipping on All Orders!

Transform your RV or Motorhome with a 16" Alcoa Mirror Polished aluminum wheel for Mercedes Sprinter. This Alcoa Hub Piloted / Unimount wheel will fit the front axle of your Mercedes-Benz Sprinter 3500 DRW. Aluminum wheels are bound to lighten the weight and efficiency of your vehicle.

Customers are Viewing this Product
16x5.5 Alcoa 6x205mm Sprinter 3500 Mirror Polished Front

This new M-Series™ wheel is designed for the Sprinter 3500. It'll improve your styling and exterior design options for RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis. This fully forged aluminum wheel provides corrosion resistance, lighter weight and improved heat management for extended brake and tire life. In addition aluminum wheels enhance the resale value of used vehicles at trade-in.

The 16 x 5.5 J type wheel features 6 elongated hand holes, providing optimal venting in combination with the excellent heat dissipation properties of aluminum. This attractive fully forged aluminum wheel weighs 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the service for which the Sprinter 3500 is known.

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Mirror Polished
Position: *Front Only*
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16" x 5.5"
Bolt Pattern: 6x205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 - Elongated
Wheel Offset: 4.94"
Backspacing: N/A
Disc Thickness: .36"
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00
Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van

Replaces Part:
250801

Need an Enitre Wheel Kit?



Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
