22.5 x 10.5 Hub Pilot Alcoa Dura Bright
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all US orders*

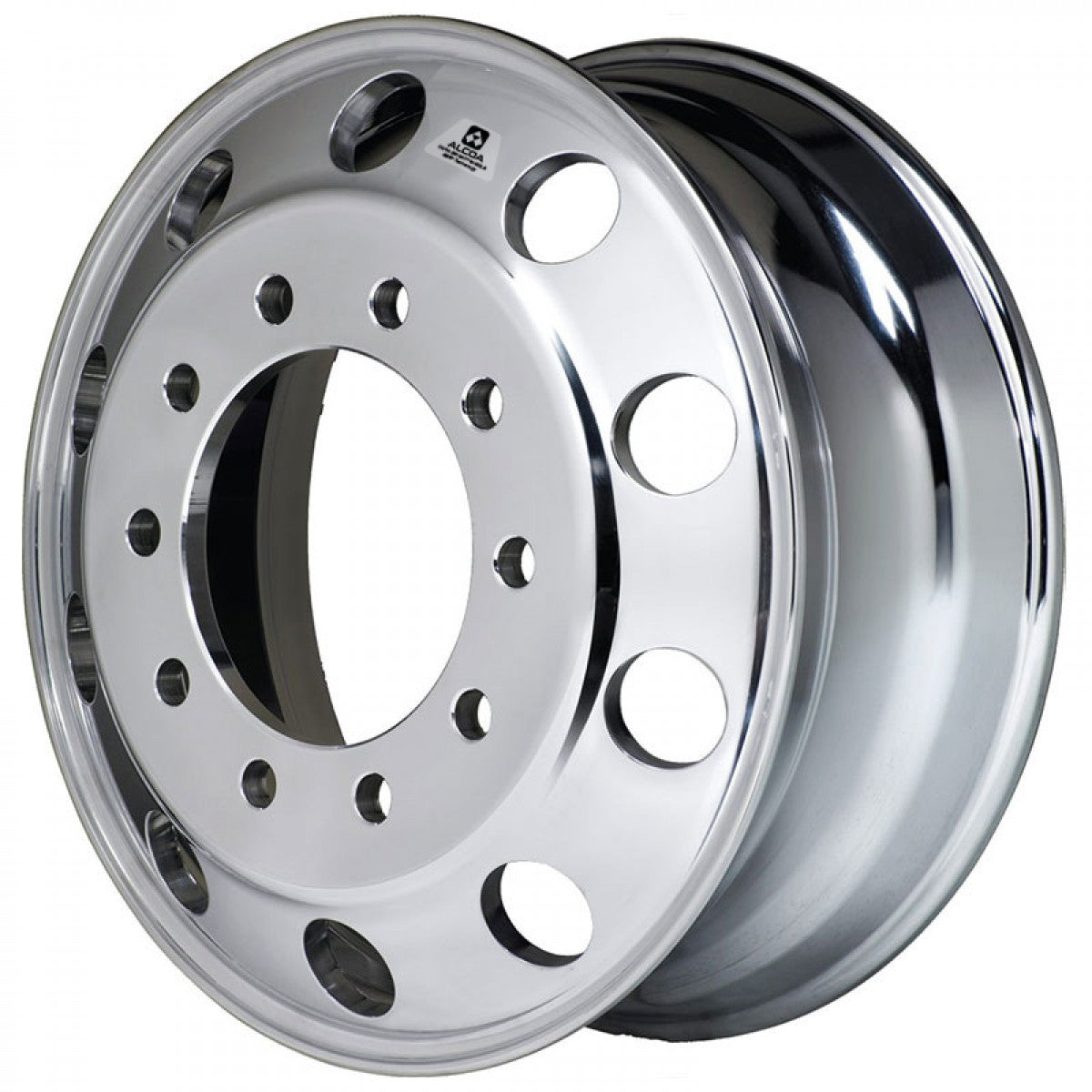

22.5x10.5 10x285mm Hub Pilot Alcoa Polished Outside Dura-Bright EVO

Alcoa Wheels
In Stock - Free Shipping


Free Shipping on All Orders!

22.5" x 10.5" Hub-Pilot 10 Lug Alcoa Durabright Aluminum Wide Wheel. Part# 803601 Fits Steer Position on most newer Motor Coach & Class A Homes with 365/70R 22.5's.

Customers are Viewing this Product
22.5x10.5 10x285mm Hub Pilot Alcoa Polished Outside Dura-Bright EVO
*Must ship to commercial address with forklift
    • Alcoa's newest surface treatment EVO replaces Alcoa's XBR Technology. The treatment penetrates the aluminum and becomes an part of the wheel. It will not chip, crack, peel or corrode, like conventional coatings do.

      Dura-Bright Wheels will not need to be polished you will just be able to wash off with soap and water and they will keep their shine for years.

      Wheel Specs:
      Finish: Dura-Bright EVO Surface Treatment
      Position: Front Position & Pusher Axle Wheel
      Mounting Set Up: Hub Pilot Dual-Mounting
      Wheel Size: 22.5" x 10.5"
      Bolt Pattern: 10x285.75
      Hub Bore Diameter: 220mm
      Hand/Vent Holes: 10 @ 2.60"
      Wheel Outset: 5.50"
      Disc Thickness: N/A
      Bolt Hole Diameter: 26mm
      Weight: 68 lbs
      Max Load & Inflation: 10500lbs @ 130psi
      Installed Valve Stem: TR553

      Warranty Info: Warranty for Alcoa Wheels
      File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

      Replaces Part:
      • 883641DB
      • 883621DB

      Approved Tire Size:
      • 365/70R22.5

      Typical Applications:
      • Prevost Motorhome
      • Newell Coach
      • Tiffin Motorhomes
      • Fleetwood RV
      • Monaco Coach
      • Newmar Motorhomes
