22.5 x 12.25 Hub Pilot Alcoa 10 x 285mm Flat Face Wheel 4.75" offset

$475.00

Add your review

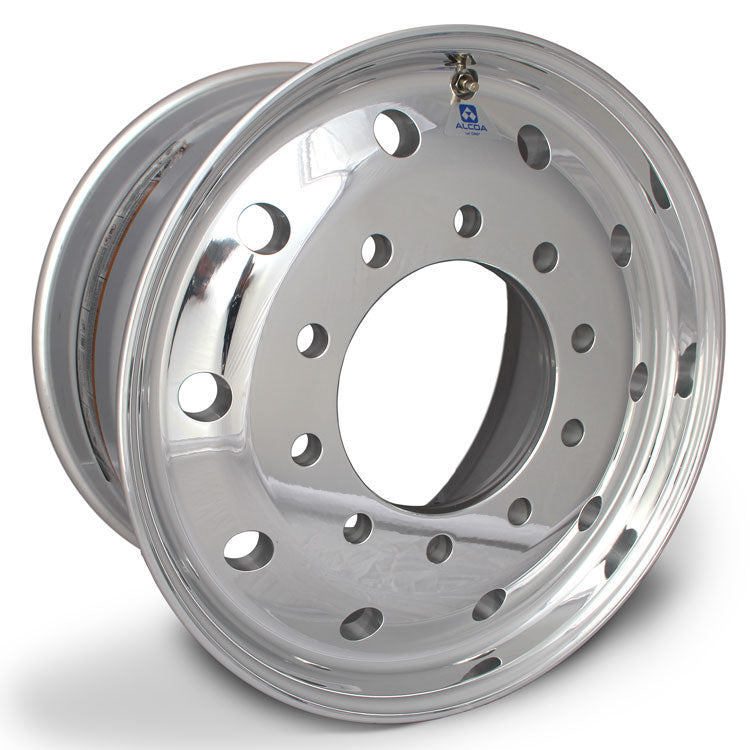

22.5" x 12.25" Hub Pilot 10 Lug Alcoa Polished Flat Face Float 4.75" offset Wheel. Part # 824621 fits new Kenworth & Peterbilt Heavy Haul and Dump Trucks.
Vendor: Alcoa
Part#: 824621
Title
Quantity
or

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.



If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 824621
Size: 22.5 x 12.25

Finish: High Polish
Position: Front Only

Installed Valve: TR545E
10-Hole, 285.75mm Bolt Circle, 220mm Bore
Wheel Offset: 4.75"

Disc Thickness: 1.125"
Weight: 66 Lbs
Max Load: 11000lbs @ 131psi


Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form



Replaces Part Number:
  • 823641
  • 823641
  • 823661


Approved Tire Size:
  • 385/65R22.5
  • 425/65R22.5

Typical Applications:
    • Cement & Concrete Mixers
    • Waste, Refuse, & Trash Trucks
    • Dump Trucks
