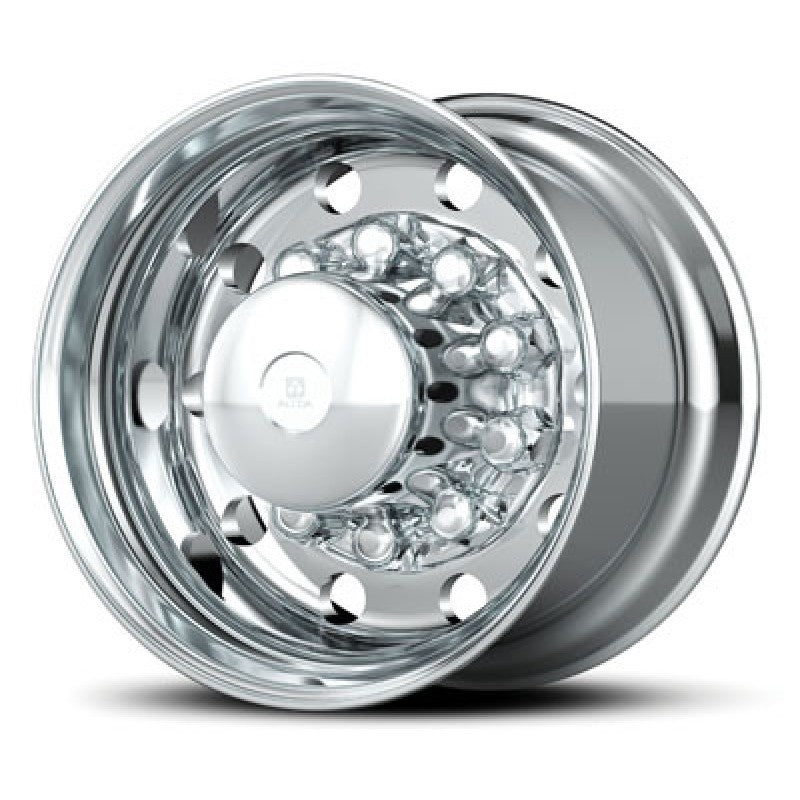

22.5x14.00 Alcoa 10x285mm Hub Pilot DuraBright EVO (2" Offset)

22.5x14.00 Alcoa 10x285mm Hub Pilot DuraBright EVO (2" Offset)

Vendor: Alcoa Wheels
SKU: 84U642DB
Availability: In Stock

Free Shipping on All Orders!

Alcoa Part Number: 84U622 Size: 22.5 x 14.00 Finish: High Polish (Video) Position: Rear or Trailer Pre Installed Valve Stem : TR553E 10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore Outset: 2.00" Backspacing: N/A Disc Thickness: .98" Weight: 52 Lbs Max Load: 12800 Lbs @ 130 PSI Bolt Hole Diameter: 26mm Decorative Outer Vent Hole Size (Hand Hole): N/A Warranty Info: Warranty for Alcoa Wheels File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form Replaces Part: 843622 840622 841672 Approved Tire Size: 445/50R22.5 455/55R22.5 Typical Applications: Class 8 Trucks Kenworth Peterbilt Freightliner Volvo International Mack Sterling Semi Trailers
$806.55
$849.00
$806.55

Subtotal: $806.55

PRODUCT SPECS

Wheel Diameter
22.5, Wheel
Wheel Diameter
22.5 Wheel
Wheel Width
14.00 Wide
Material
Aluminum (6061 Fully Forged)
Finish
Dura-Bright® EVO
Bolt Pattern
10 x 285.75mm
Hub Bore Dia.
220mm
Vent/Hand Holes
10
Wheel Offset
2.00"
Max Load
12800 lbs
Max Inflation
130 psi
Valve Stem
TR553E
Weight
52 lbs
