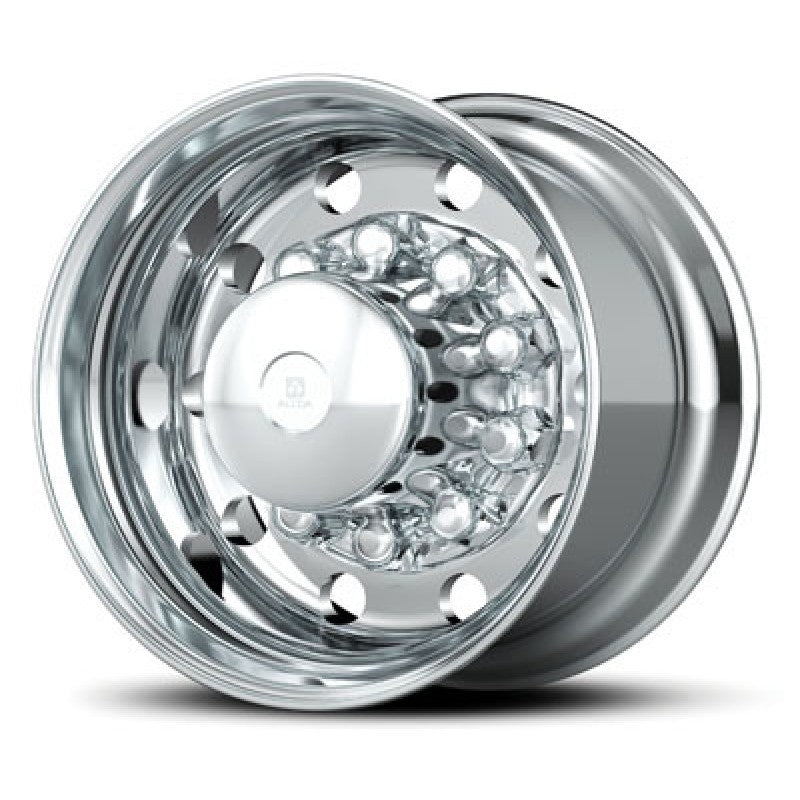

22.5x14.00 Alcoa 10x285mm Hub Pilot High Polished (2" Offset)

$479.00 $519.00
Free Shipping!

Add your review
Alcoa Part Number: 84U622 Size: 22.5 x 14.00 Finish: High Polish (Video) Position: Rear or Trailer Pre Installed Valve Stem : TR553E 10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore Outset: 2.00" Backspacing: N/A Disc Thickness: .98" Weight: 52 Lbs Max Load: 12800 Lbs @ 130 PSI Bolt Hole Diameter: 26mm Decorative Outer Vent Hole Size (Hand Hole): N/A Warranty Info: Warranty for Alcoa Wheels File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form Replaces Part: 843622 840622 841672 Approved Tire Size: 445/50R22.5 455/55R22.5 Typical Applications: Class 8 Trucks Kenworth Peterbilt Freightliner Volvo International Mack Sterling Semi Trailers
Vendor: Alcoa
Part#: 84U622
Title
Quantity
or

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.



If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 84U622
Size: 22.5 x 14.00

Finish: High Polish (Video)
Position: Rear or Trailer

Pre Installed Valve Stem : TR553E
10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore
Outset: 2.00"
Backspacing: N/A
Disc Thickness: .98"

Weight: 52 Lbs
Max Load: 12800 Lbs @ 130 PSI
Bolt Hole Diameter: 26mm
Decorative Outer Vent Hole Size (Hand Hole): N/A

Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form



Replaces Part:
  • 843622
  • 840622
  • 841672
Approved Tire Size:
  • 445/50R22.5
  • 455/55R22.5
Typical Applications:
  • Class 8 Trucks
  • Kenworth
  • Peterbilt
  • Freightliner
  • Volvo
  • International
  • Mack
  • Sterling
  • Semi Trailers
