22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides

Alcoa Wheels
873407
In Stock - Free Shipping
Aluminum Wheel
Front View of 22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all US orders*

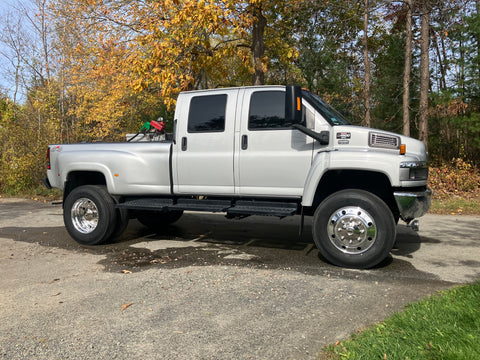

Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height and fit the 11R22.5 tires. The 8x275 bolt pattern also fits most class A motorhomes.

22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides

Alcoa Wheels
873407
In Stock - Free Shipping
Aluminum Wheel
Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height and fit the 11R22.5 tires. The 8x275 bolt pattern also fits most class A motorhomes.
$440.00


customers are viewing this product

22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides

Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height and fit the 11R22.5 tires. The 8x275 bolt pattern also fits most class A motorhomes.

Through years of innovation and advanced technology, Alcoa has proven itself as the leader in aluminum wheel manufacturing. Their forged aluminum wheels are both lightweight and durable. They increase your fuel economy and boost your productivity by requiring less maintenance. More vehicles on the road are fitted with forged aluminum wheels from Alcoa than any other brand. That is why when you think aluminum wheels, you think Alcoa.

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: High Polished Both Sides
Position: All Position (Front, Rear or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 8 x 2.00"
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .84"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D

Additional Information:

Fits These Applications:
Motorhome & RV Workhorse Chassis
Chevrolet 4500/5500 Kodiak
GMC 4500/5500 Topkick
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)

Approved Tire Sizes:
235/80R22.5
245/75R22.5
255/70R22.5
265/75R22.5
275/80R22.5
9R22.5
10R22.5
11R22.5

Replaces Parts:
873401
873402
225750
750279

Other Choices for this Wheel:
