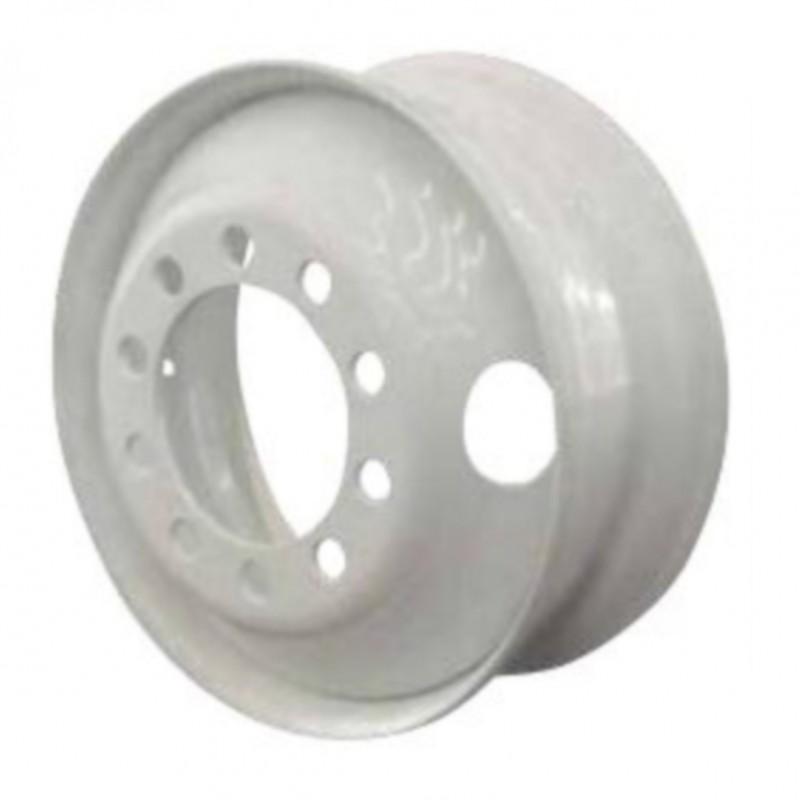

22.5x7.50 Maxion 10x11.25" Stud Pilot 2 Hand Hole White Steel

$219.00

Add your review
22.5" x 7.50" Stud Pilot, Ball Seat, Budd, Steel, Maxion Wheel, 11.25 Bolt Circle, 8.72 Hub Bore, Single Mounting 10 Hole
Vendor: Maxion
Part#: 87893
Title
Quantity
or

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.



If you have any questions don't hesitate to call or text 800-830-4547

Maxion Part Number: 87893
Size: 22.5 x 7.5

Finish: MaxCoat White
Position: All Position Wheel (front, rear, or trailer)

Pre Installed Valve Stem : TR572
10-Hole Stud Pilot 11.25" Bolt Circle, 8.72" Center Bore
Outset: 6.5"
Backspacing: N/A
Disc Thickness: 0.425"


Weight: 78 Lbs
Max Load: 7400 Lbs @ 120 PSI
Bolt Hole Diameter: 26mm
Hand Holes: 2

Warranty Info: Maxion Steel Wheels 5 Year Limited Warranty
File Maxion Warranty: 800-337-0457



Replaces Part:
  • Accuride


Approved Tire Size:
  • 255/70R22.5
  • 255/80R22.5
  • 265/70R22.5
  • 265/75R22.5
  • 275/70R22.5
  • 275/80R22.5
  • 295/75R22.5
  • 295/80R22.5
  • 11R22.5
  • 12R22.5


Typical Applications:
  • Class 8 Trucks
  • Kenworth
  • Peterbilt
  • Freightliner
  • Volvo
  • International
  • Mack
  • Sterling
  • Semi Trailers
