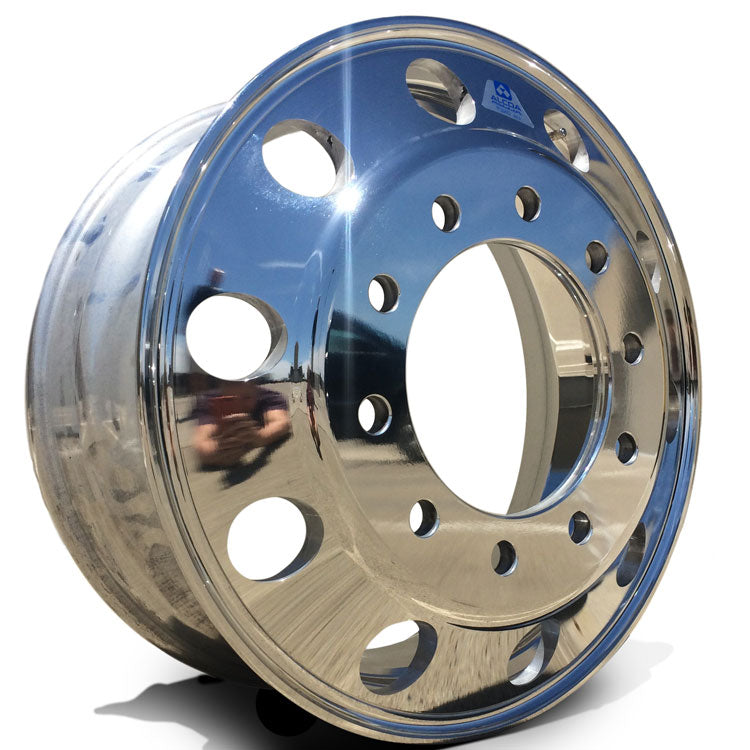

22.5x9.00 Alcoa 10x285mm LvL One Both Sides


Free Shipping!
Add your review
Alcoa Part Number: 89U647Size: 22.5 x 9.00Finish: LvL One (Clean Buff) Position: All Position Wheel (front, rear, or trailer)Pre Installed Valve Stem : TR554D 10-Hole, 285.75mm Bolt Circle, 220.1mm Outset: 5.96"Weight: 56 LbsMax Load & Inflation 10000 lbs @ 130psiBolt Hole Diameter: 26mmWarranty Info: Warranty for
Vendor: Alcoa
SKU: 89U647

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.


If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 89U647
Size: 22.5 x 9.00

Finish: LvL One (Clean Buff)
Position: All Position Wheel (front, rear, or trailer)

Pre Installed Valve Stem : TR554D

10-Hole, 285.75mm Bolt Circle, 220.1mm

Outset: 5.96"
Weight: 56 Lbs
Max Load & Inflation 10000 lbs @ 130psi
Bolt Hole Diameter: 26mm

Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

Replaces Part:  894650, 894657, 894640, 894647, 893640, 893647

Approved Tire Size:
  • 315/80R22.5
  • 12R22.5

Typical Applications:
