22.5x9.00 Alcoa 10x285mm High Polish Rear


Free Shipping!
Add your review

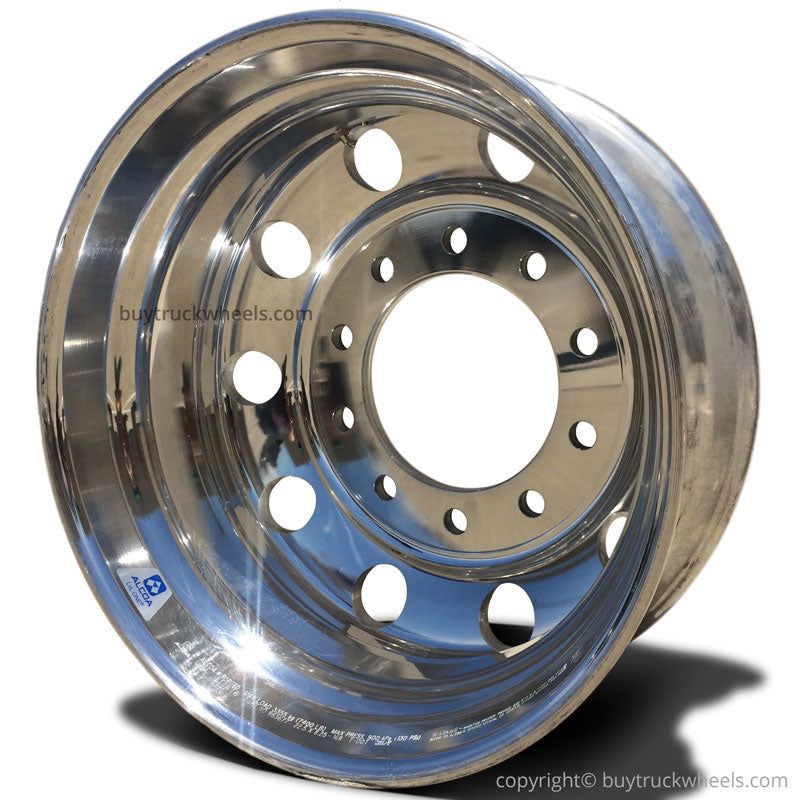

22.5" x 9" 10 Hole Polished Drive or Trailer Hub-Pilot All Position Aluminum Wheel. Alcoa Part Number 894642. Heavy Load Wheel Dual Style 7.00" Offset. Typical for Trash and Dump Trucks.
Vendor: Alcoa
Part#: 89U642

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.


If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 89U642
Size: 22.5 x 9.00

Finish: High Polish
Position: Rear Only

Pre Installed Valve Stem : TR554D
10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore
Outset: 5.96"
Backspacing: N/A
Weight: 56 Lbs
Max Load: 10000 Lbs @ 130 PSI

Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

Replaces Part:
  • 894652, 894642, 893642

Approved Tire Size:
  • 315/80R22.5
  • 12R22.5

Typical Applications:
  • Dump or other Heavy Haul Trucks
