22.5x9.00 Accuride 10x285mm Hub Pilot High Polish Flat Face Front
41012 on a floating axle, lifted axle
Front View 22.5x9.00 Accuride 10x285mm Hub Pilot Standard Polish Flat Face Front
Front View 22.5x9.00 Accuride 10x285mm Hub Pilot Standard Polish Flat Face Front Nice Shine
41012 see the shine on this 22.5 x 9.00 Wheel
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all orders

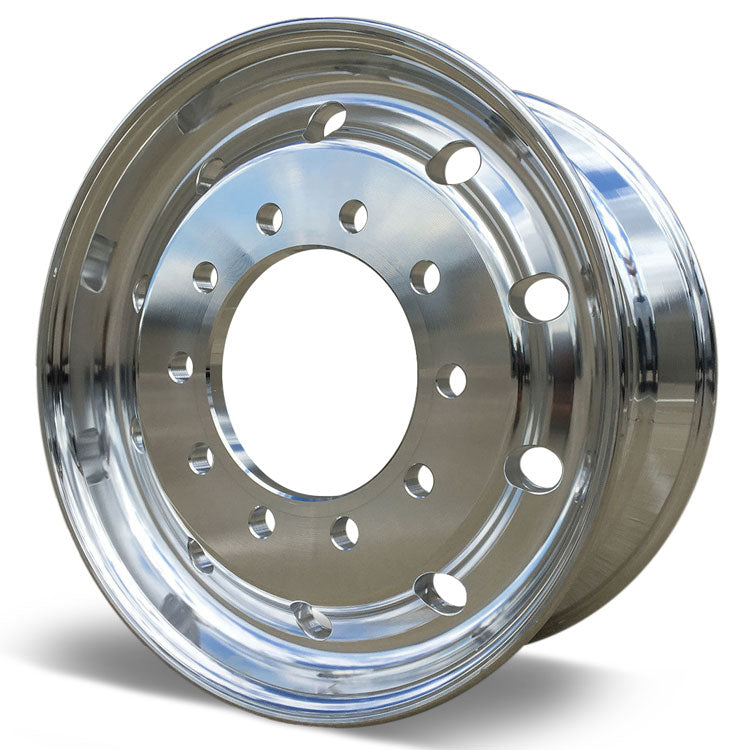

22.5x9.00 Accuride 10x285mm Hub Pilot Standard Polish Flat Face Front

Accuride
41012SP

$349.00

Free Shipping on All Orders!

Fits Class 8 rigs including Peterbilt, Kenworth, and Freightliner. Can hold up to 10,200 lbs. Accuride is the leading manufacturer of commercial truck wheels in the USA. Pound for pound fully forged aluminum wheels are the strongest material on the market. Fits 10x285mm and runs on 315/80R22.5 Tires.

Buy More & Save!

  • Buy 4 or more, Save $10 each
  • Buy 12 or more, Save $20 each
  • Buy 24 or more, Save $40 each

discount applied at checkout
commercial address & forklift required for 12+ discount


Customers are Viewing this Product
22.5x9.00 Accuride 10x285mm Hub Pilot Standard Polish Flat Face Front

Don't think your wheels can bear the weight? These ones can! Rated at 10,200 lbs they were made to carry a huge load. The thicker disc plate and smaller vent holes allow for this wheel to be able to carry tons of cargo while still only weighing 51 lbs per wheel.

Their unique flat face design will give you a wider stance while still achieving a great turn radius. Most people use a set of these Heavy Duty wheels along with a set of 315/80R22.5 tires.

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Standard Polished Both Sides (SP)
Position: Front/Steer
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 9.00"
Bolt Pattern: 10x285.75
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 1.5"
Wheel Offset: 3.12"
Backspacing: N/A
Disc Thickness: 0.980"
Weight: 51 lbs
Max Load & Inflation: 10200 lbs @ 131 psi
Installed Valve Stem: TR543E

Additional Information:

Fits These Applications:
Class 8 Trucks
Kenworth
Peterbilt
Freightliner
Volvo
International
Mack
Sterling
Semi Trailers
Tank & Refrigerated Trailers
Van & Flatbed Trailers

Approved Tire Sizes:
275/80R22.5
295/75R22.5
305/75R22.5
315/80R22.5
12R22.5

Replaces Part:
40012
