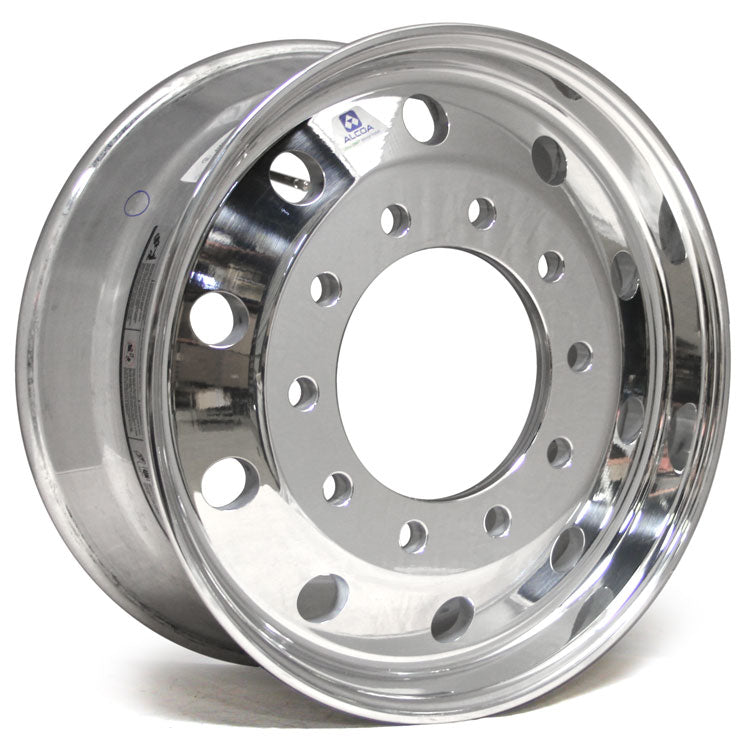

22.5x9.00 Alcoa 10x285mm Hub Pilot High Polish Flat Face Front

$379.00

Add your review
Made with MagnaForce® Alloy this 22.5 x 9 wheel is built for the heaviest steer applications. At only 48lbs, this Alcoa® Ultra ONE® rim will lighten the load of your Waste & Refuse Trucks as well as Dump Trucks. Works for newer trucks with 10 on 285mm Hub Pilot Bolt Patterns.
Qty Price
Buy 1 $379.00 ea
Buy 4 $369.00 ea
Buy 12 $359.00 ea
Buy 24 $339.00 ea
Vendor: Alcoa
Part#: 89U631
Title
Quantity
or

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.



If you have any questions don't hesitate to call or text 800-830-4547

Alcoa Part Number: 89U631
Size: 22.5 x 9.00

Finish: High Polish
Position: Front Only

Pre Installed Valve Stem : TR555E
10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore
Outset: 4.04" Inset: 3.12
Backspacing: N/A
Disc Thickness: 0.92"
Weight: 48 Lbs
Max Load: 10000 Lbs @ 130 PSI


Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form



Replaces Part:
  •  893651
  •  893631

Approved Tire Size:
  • 315/80R22.5
  • 295/60R22.5
  • 12R22.5

Typical Applications:
  • Steer Axle for Dump or other Heavy Haul Trucks
