GM/Chevy 4500/5500 Alcoa
Free Ground Delivery
We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.
On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.
On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.
We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.
If you have any questions don't hesitate to call or text 800-830-4547

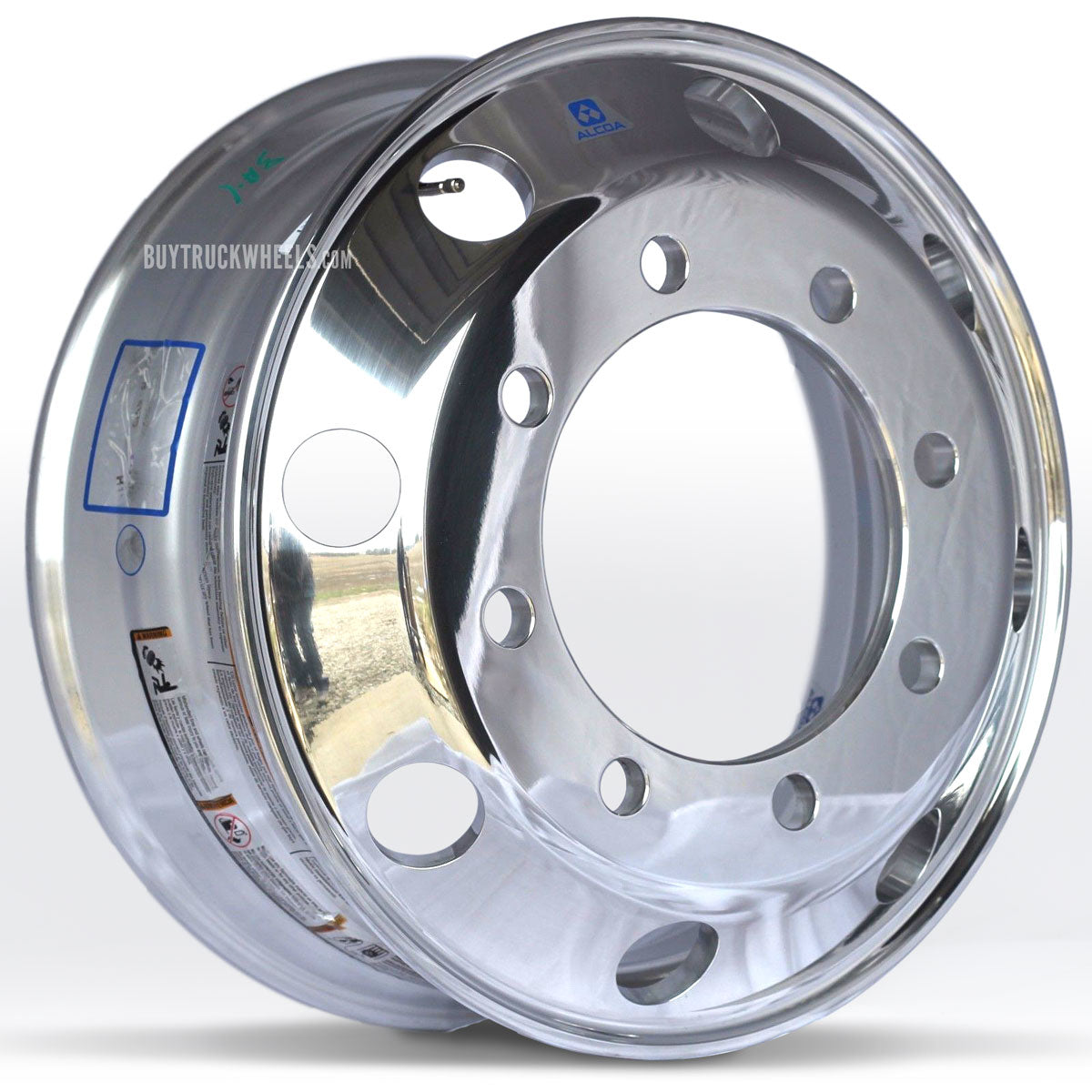

4 - 765427 Alcoa LvL One Aluminum Wheels

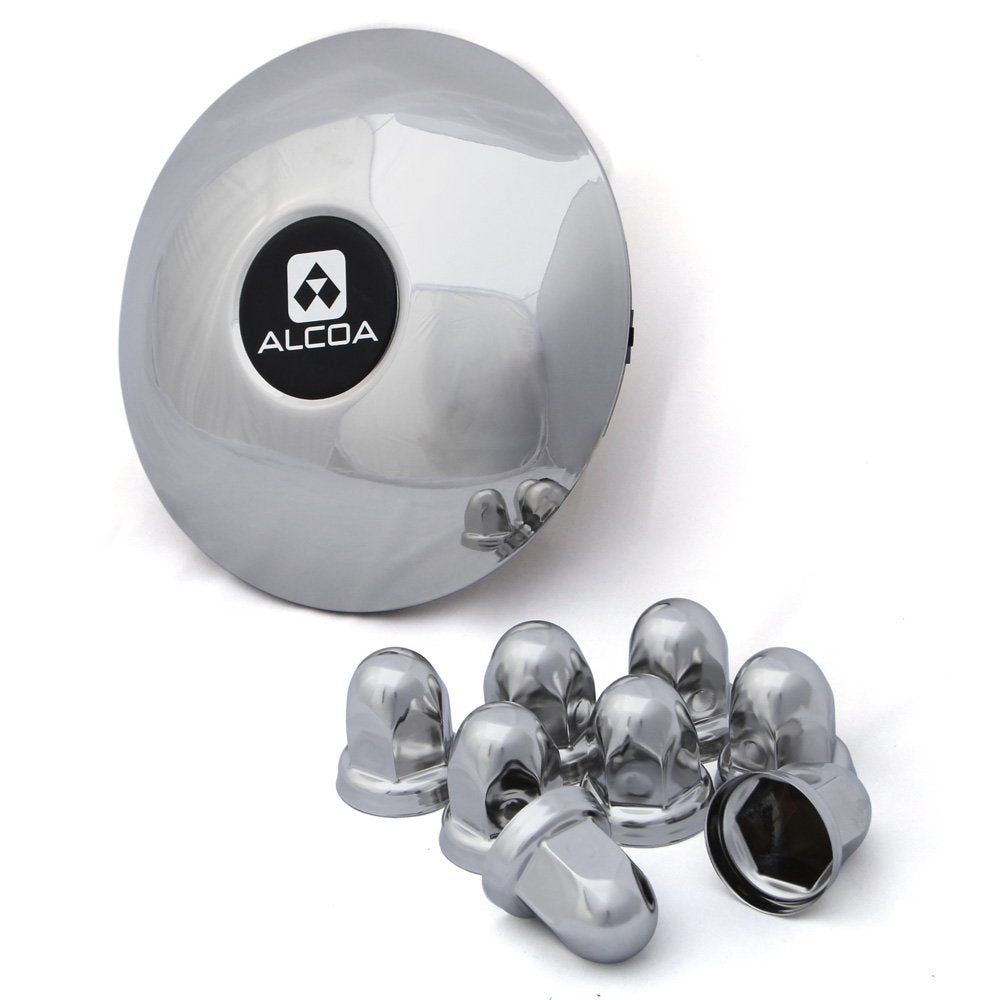

2 - 001402 Front Alcoa Stainless Cap

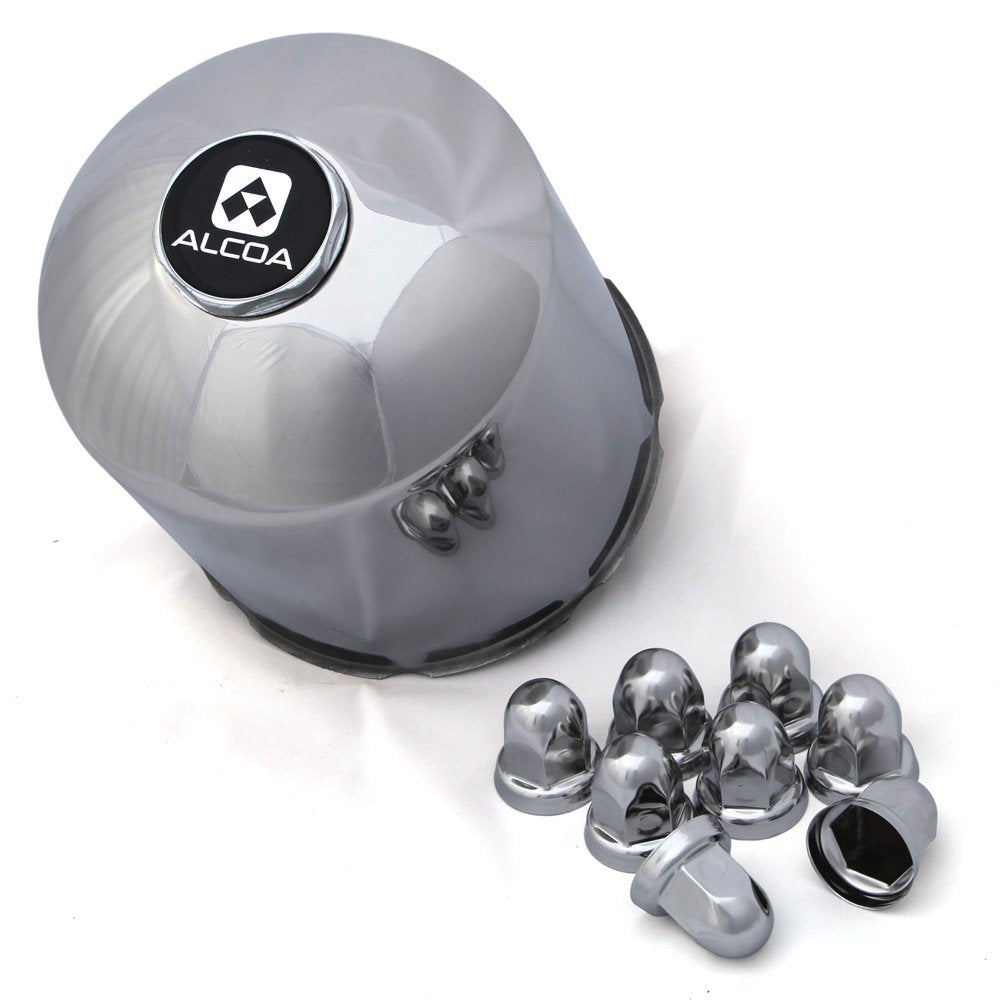

2 - 001109 Rear Alcoa Stainless Cap
32 - 000230 Alcoa 30mm Nut Covers
Typically this is used for Medium Duty Truck Applications Including:
Chevrolet 4500/5500 Kodiak
GMC 4500/5500 Topkick
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)
Bolt Pattern: 8-Hole, 275mm Bolt Circle, 221mm Bore
Weight: 36 lbs
Max Load & Inflation: 5000lbs @ 125psi
Hand / Vent Holes: 10
Installed Valve: TR545D
Wheel Offset: 5.60"
Disc Width: .830"
Vent Hole Size: 1.5"
Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most Chevrolet 4500/5500 Kodiak, GMC 4500/5500 Topkick, Freightliner M2, or International 4300 Truck
5 Year Wheel Warranty
Recommended Tire Size:
