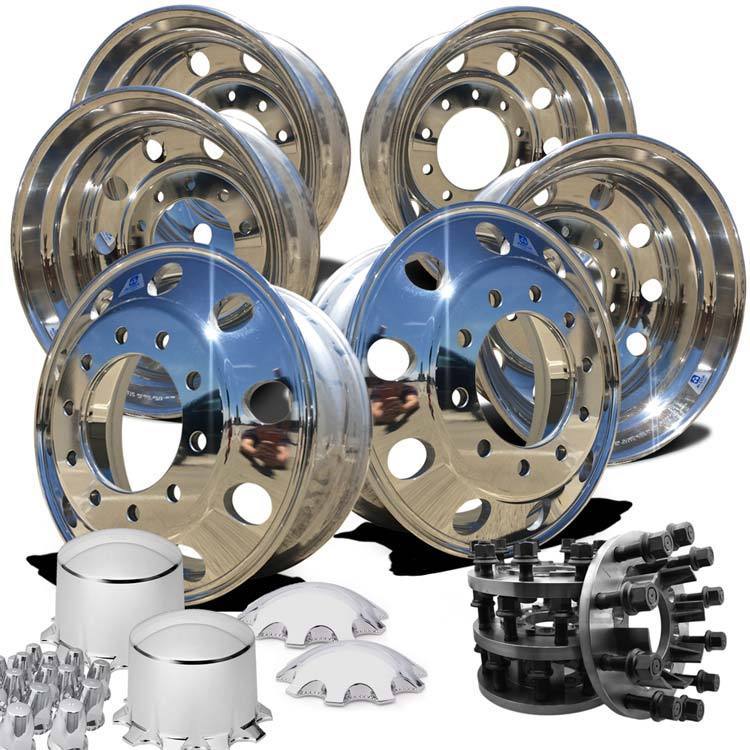

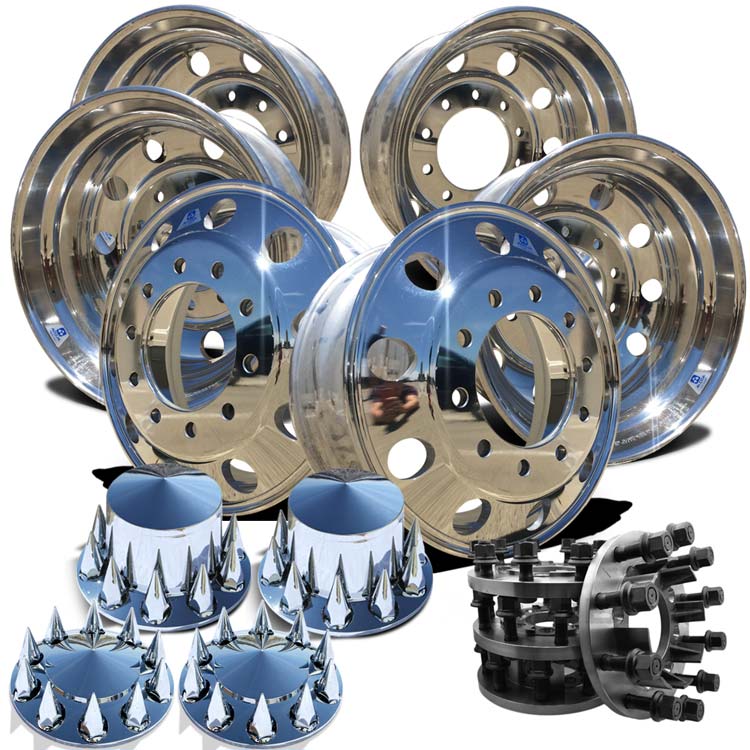

Alcoa 22.5 Wheels w/ 8 to 10 lug Adapter Kit (Chevy/GMC 3500 DRW 2001-2010)
Free Ground Delivery
We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.
On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.
On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.
We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.
If you have any questions don't hesitate to call or text 800-830-4547

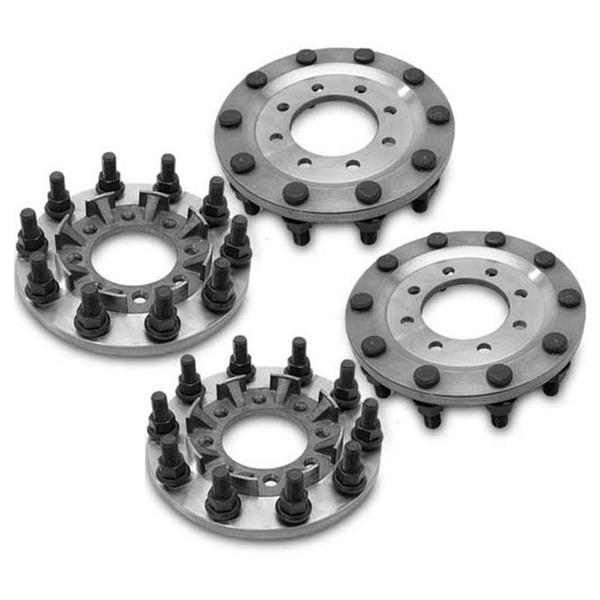

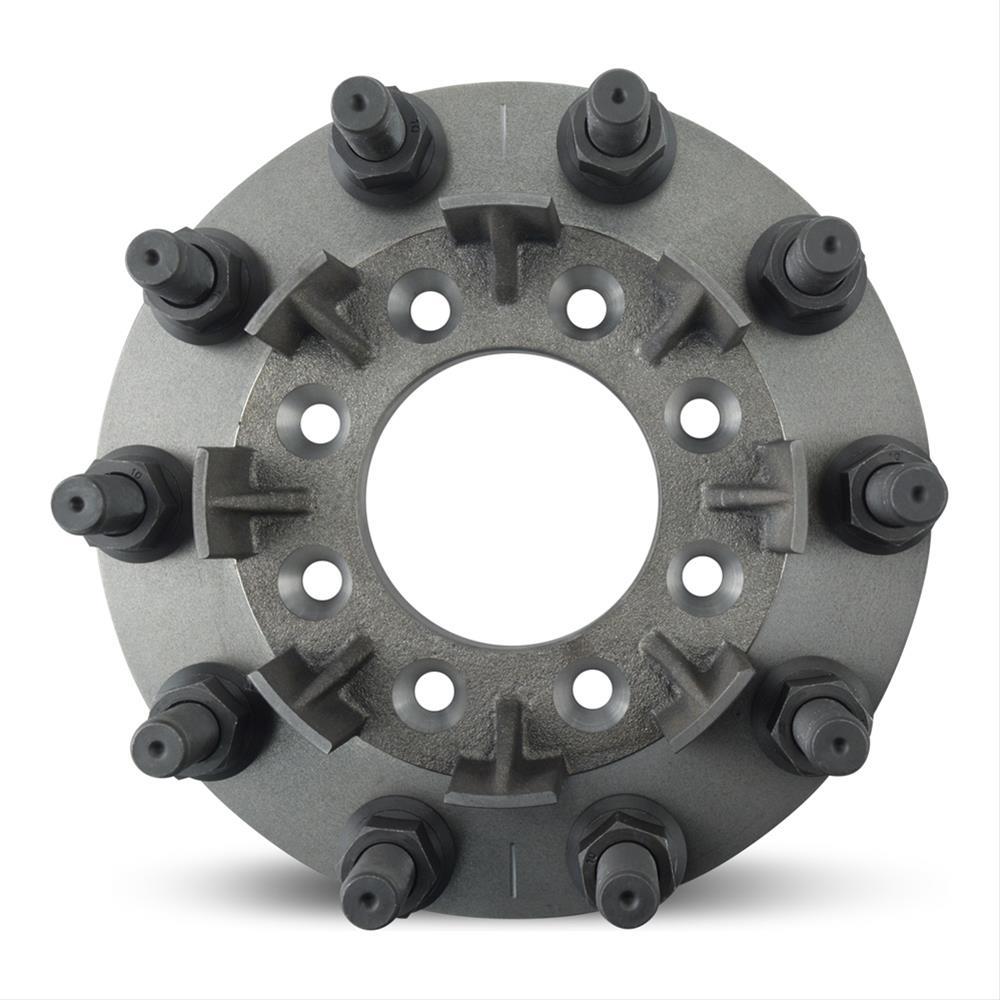

Heavy duty adapter kit fits 2001 through 2010 Model Year Chevy/GMC 3500 DRW. Takes standard 8 on 6.5" Bolt pattern to larger 10 on 285mm to fit larger 19.5 or 22.5 Semi wheels.

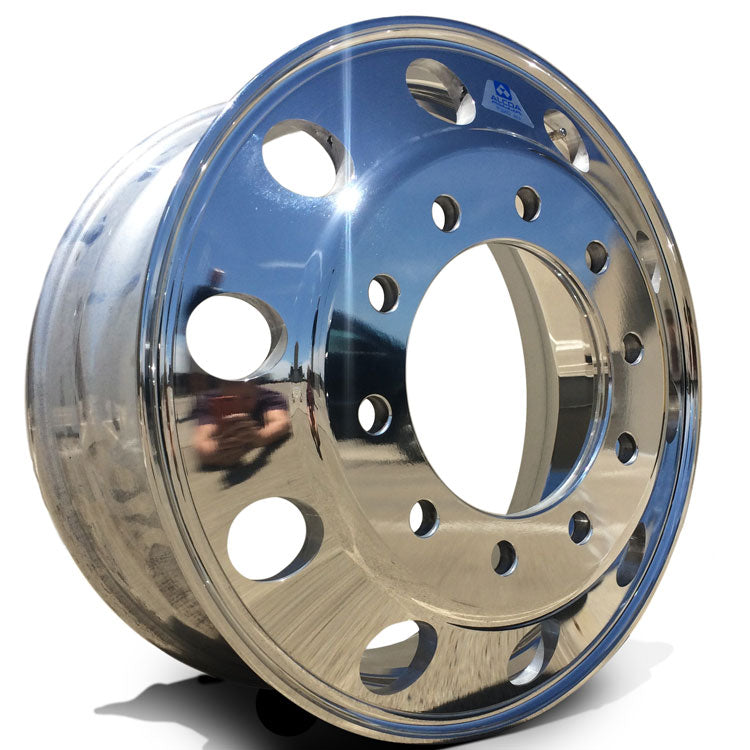

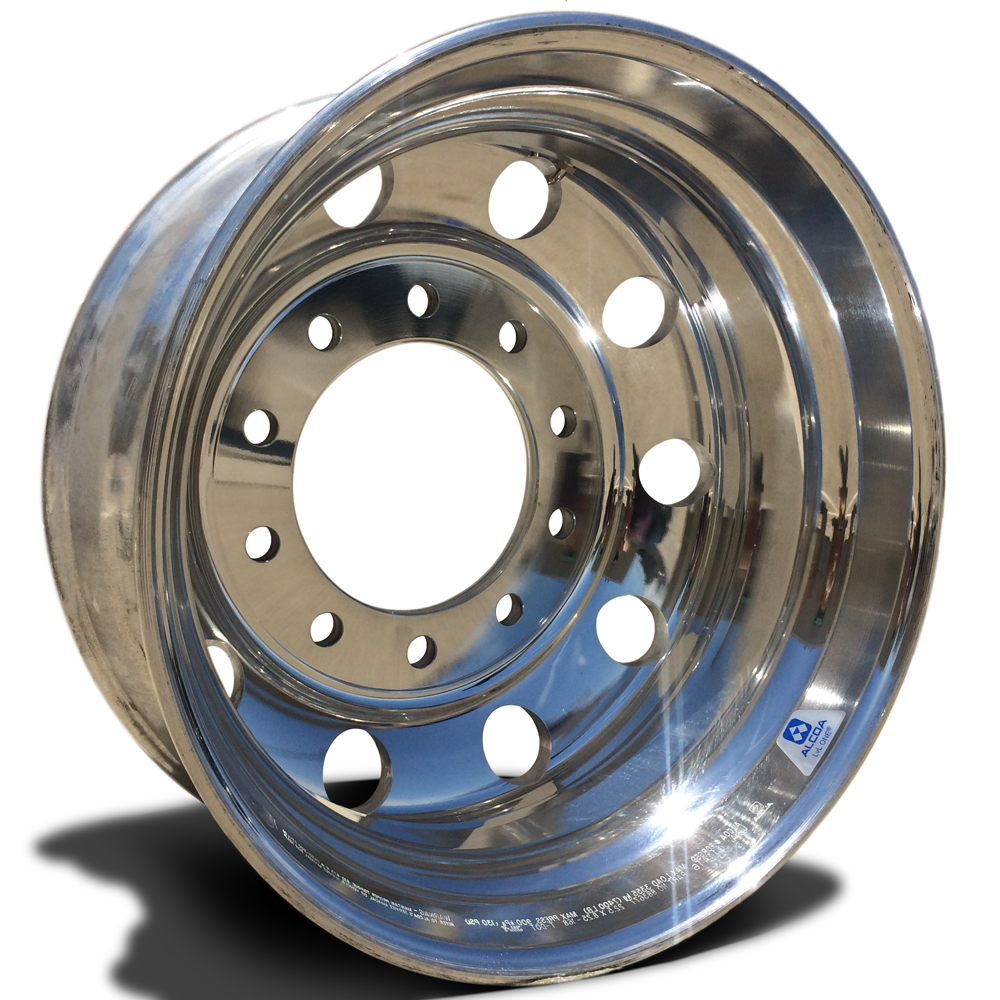

Includes 6 Alcoa Part Number: 883677 (video)
Includes also choice of Hub/Nut Cover Set:

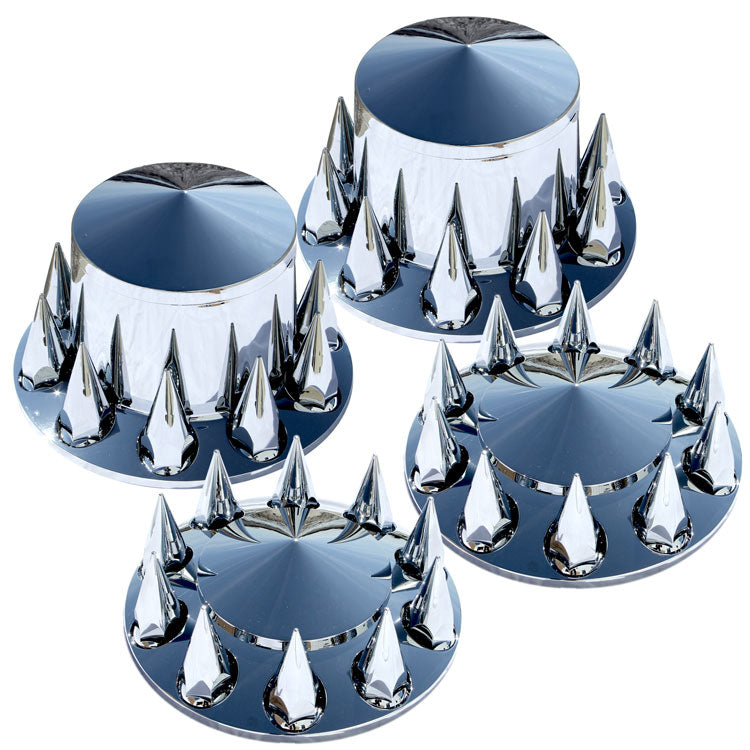

- Pointed Hub Cover Spiked Nut Covers
- Rounded Hub Cover Regular Nut Covers
- Rounded Hub Cover Barrel Nut Covers

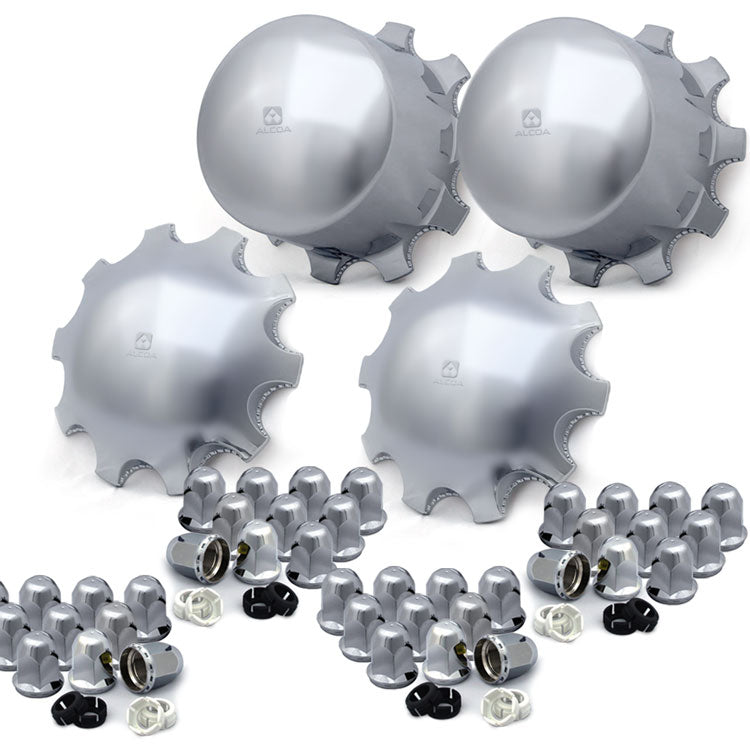

- Alcoa Multi Piece Caps
- Alcoa One Piece Caps
Size: 22.5 x 8.25
Finish: LvL One (Clean Buff)
Position: All Position Wheel (front, rear, or trailer)
Pre Installed Valve Stem : TR554D
10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore
Outset: 6.60" Inset: 5.79
Disc Thickness: 0.81"
Weight: 45 Lbs
Max Load: 7400 Lbs @ 130 PSI
Bolt Hole Diameter: 26mm
Decorative Outer Vent Hole Size (Hand Hole): 2.5"
Recommended Tire Size:
- 255/70R22.5 (36.6" Approx. Height)
Other available tire sizes that may require appropriate lift:
- 275/70R22.5 (37.7" Approx. Height)
- 295/75R22.5 (40.2" Approx. Height)
- 11R22.5 (41.5" Approx. Height)
Fits the following:
2001 Chevrolet 3500 DRW
2002 Chevrolet 3500 DRW
2003 Chevrolet 3500 DRW
2004 Chevrolet 3500 DRW
2005 Chevrolet 3500 DRW
2006 Chevrolet 3500 DRW
2007 Chevrolet 3500 DRW
2008 Chevrolet 3500 DRW
2009 Chevrolet 3500 DRW
2010 Chevrolet 3500 DRW
2001 GMC 3500 DRW
2002 GMC 3500 DRW
2003 GMC 3500 DRW
2004 GMC 3500 DRW
2005 GMC 3500 DRW
2006 GMC 3500 DRW
2007 GMC 3500 DRW
2008 GMC 3500 DRW
2009 GMC 3500 DRW
2010 GMC 3500 DRW
