Alcoa LvL One 22.5 Tandem Axle Wheel Kit

$1,899.00

Add your review

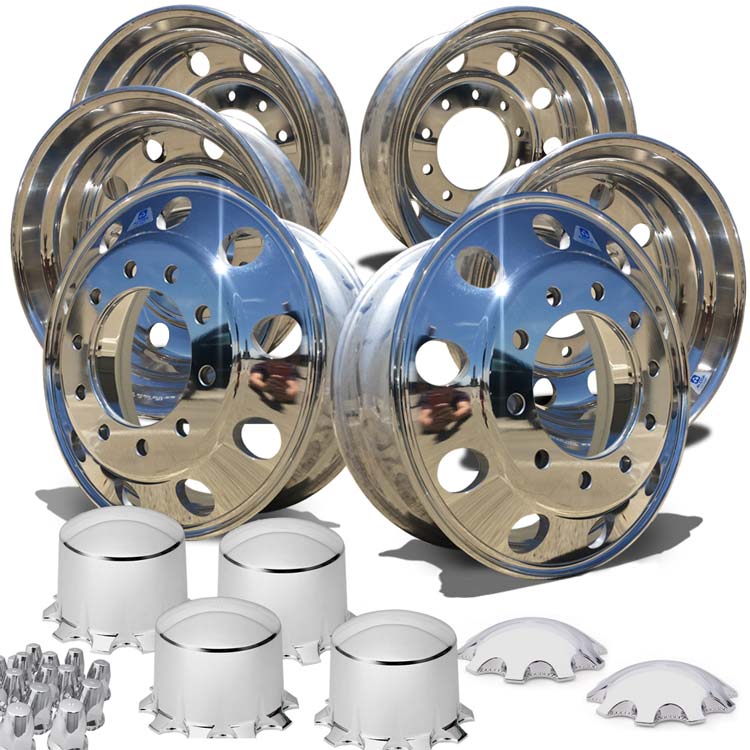

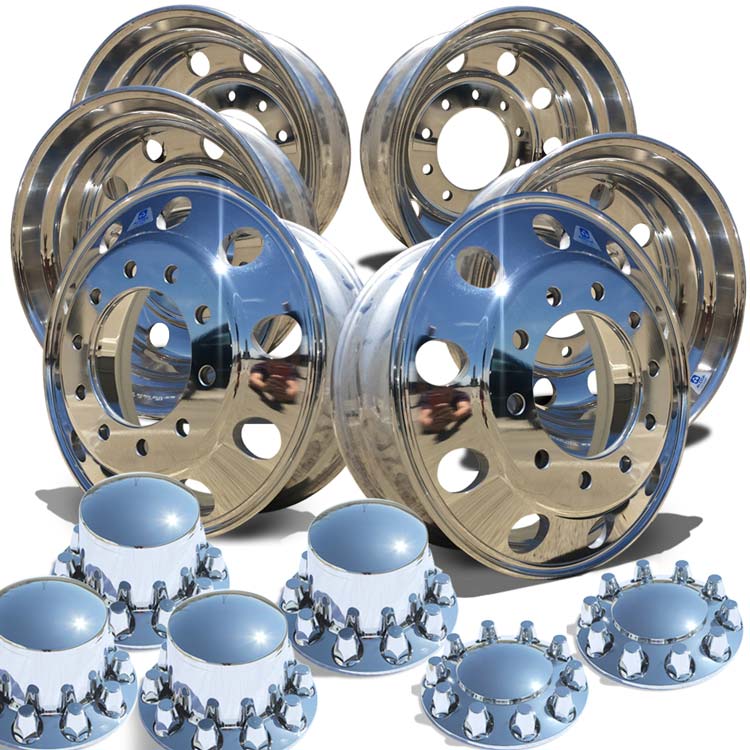

22.5" x 8.25" Alcoa 10 Lug Polished Aluminum Rim Set for a Single Rear Axle Kenworth, Peterbilt, Freightliner, Volvo, and other Class 8 Semi Trucks. Set comes with 6 Alcoa 883677 Polished Truck Wheels with Caps & Covers. As Always, Same-Day Free Shipping!
Vendor: Alcoa
Part#: 883677TRAAM
Cover Options
Quantity
or

Free Ground Delivery

We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.

Bulk Orders

On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.

Express Orders

On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.

International Orders

We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.



If you have any questions don't hesitate to call or text 800-830-4547

Included Wheels:
6 - 883677

Hub Cover Options:
Northstar One Piece ( 11100 & 11200 )
Alcoa Multi-Piece ( 076188 & 077188 )
Alcoa One Piece ( 086100 & 087100 )





Wheel Information

Alcoa Part Number: 883677 (video)
Size: 22.5 x 8.25

Finish: LvL One (Clean Buff)
Position: All Position Wheel (front, rear, or trailer)

Pre Installed Valve Stem : TR554D
10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore
Outset: 6.60" Inset: 5.79
Backspacing: N/A
Disc Thickness: 0.81"

Weight: 45 Lbs
Max Load: 7400 Lbs @ 130 PSI
Bolt Hole Diameter: 26mm
Decorative Outer Vent Hole Size (Hand Hole): N/A

Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form



Approved Tire Size:
  • 255/70R22.5
  • 255/80R22.5
  • 265/70R22.5
  • 265/75R22.5
  • 275/70R22.5
  • 275/80R22.5
  • 295/75R22.5
  • 295/80R22.5
  • 11R22.5
  • 12R22.5


Typical Applications:
  • Class 8 Trucks
  • Kenworth
  • Peterbilt
  • Freightliner
  • Volvo
  • International
  • Mack
  • Sterling
  • Semi Trailers
