DynaTrac DT320 Off Road Mounted On 22.5 22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides Wheel Kit
22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides Wheel Kit

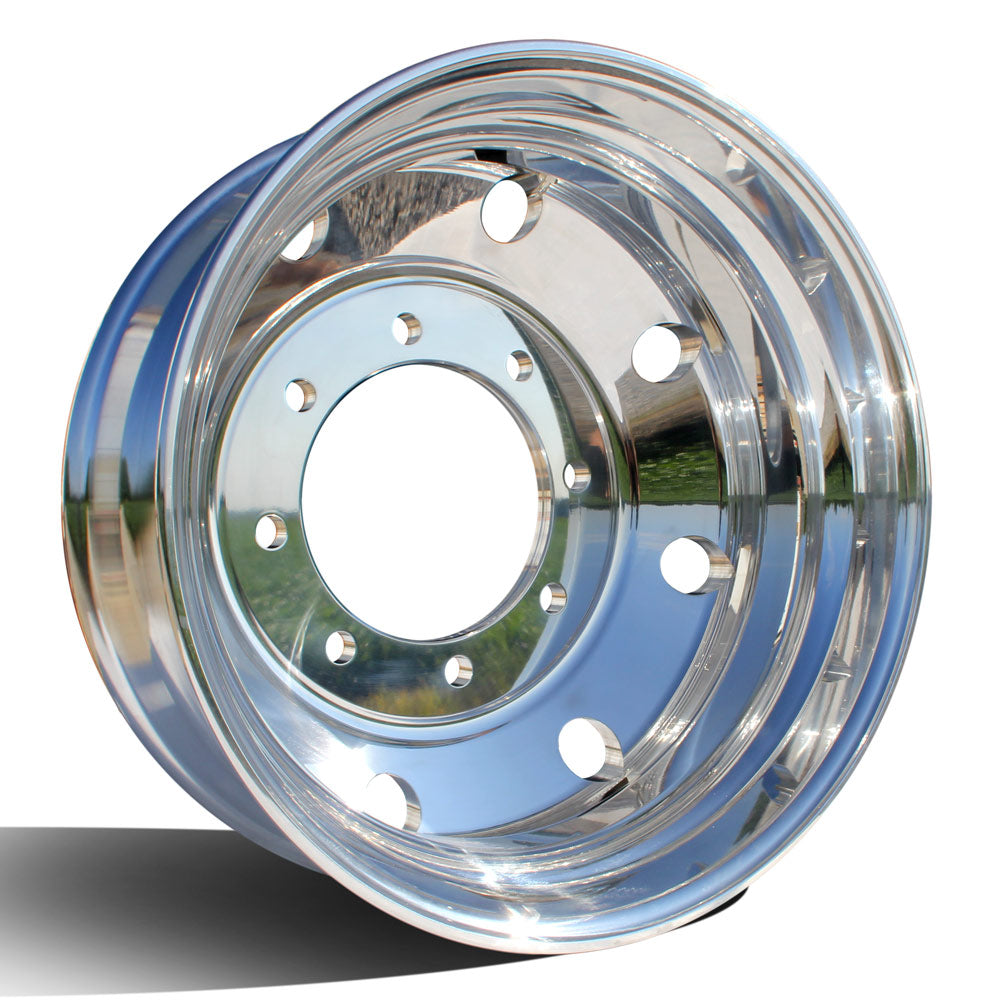

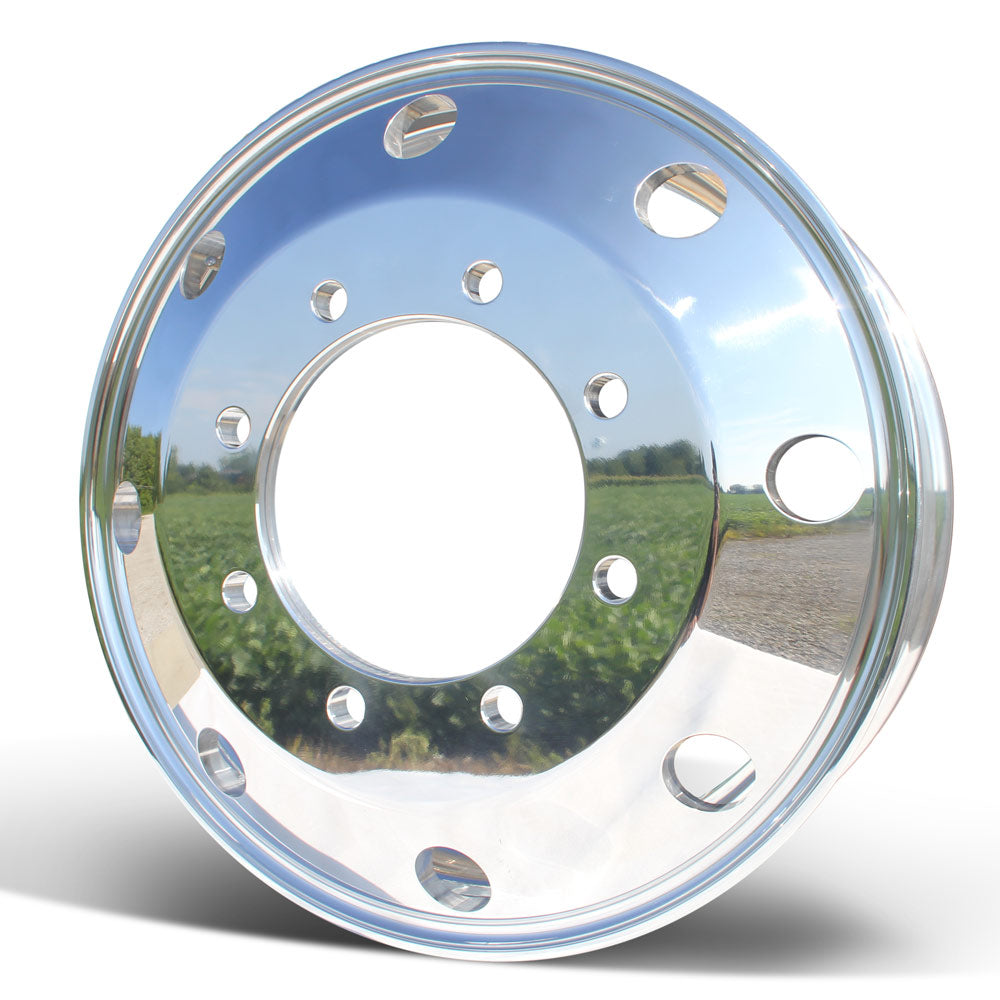

Front View 22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides
Rear View 22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides

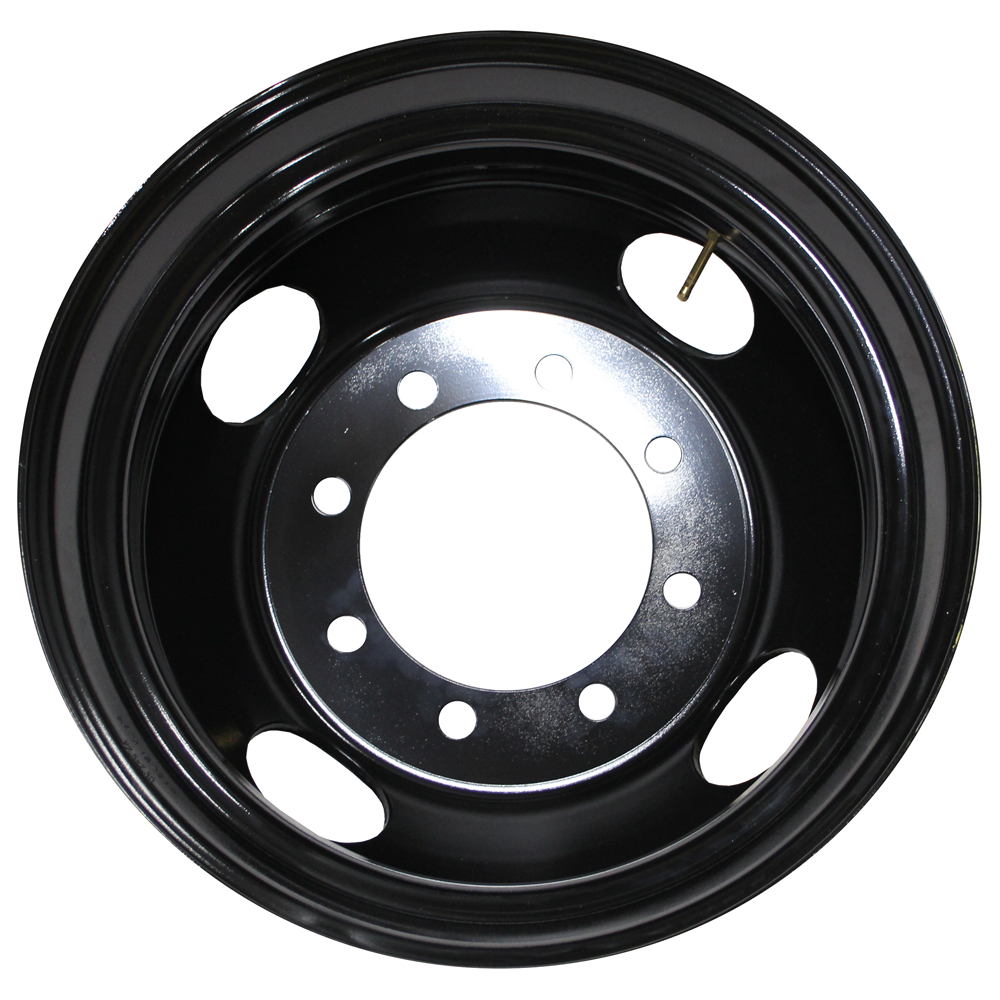

Front View 22.5x7.50 Jantsa 8x275mm Hub Pilot 4 Hand Hole Black Steel

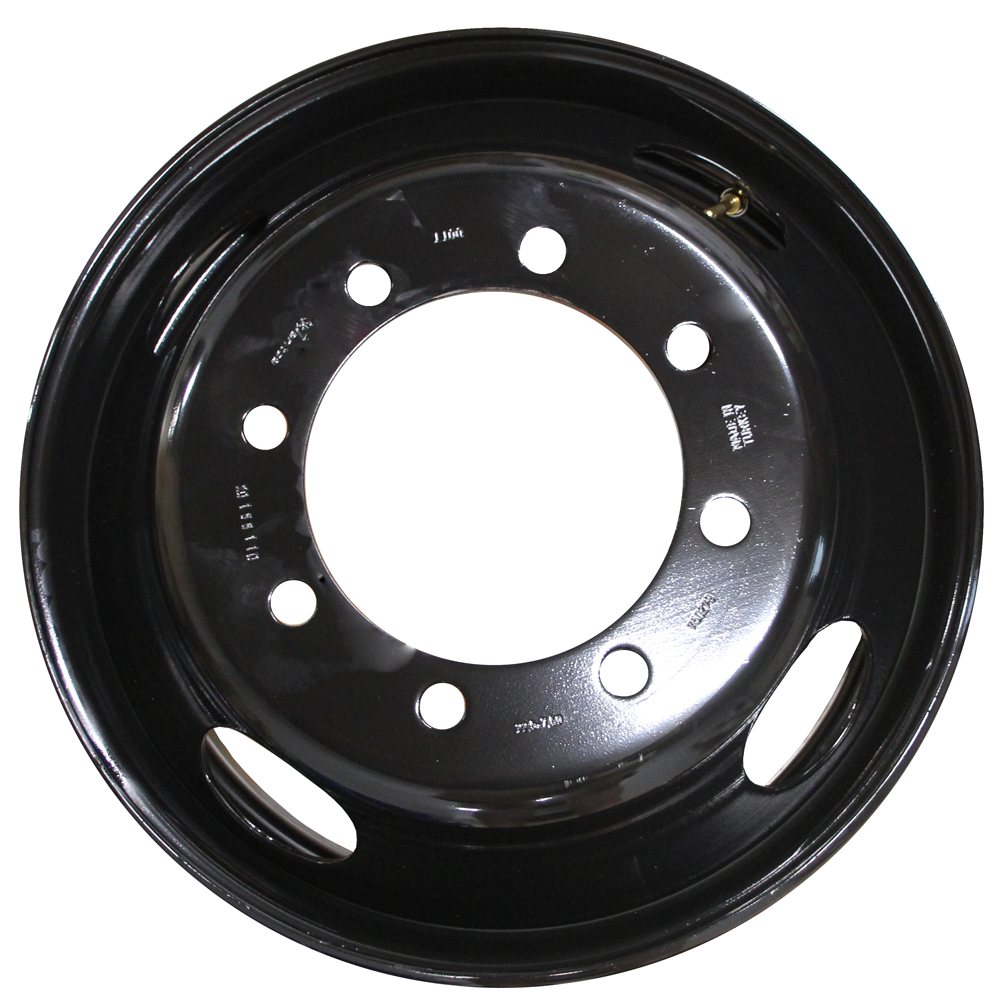

Rear View 22.5x7.50 Jantsa 8x275mm Hub Pilot 4 Hand Hole Black Steel
Northstar Front 4 Spline Stainless Steel Kit for 30mm Lug Nuts
Stainless Steel Rear Northstar Hub Cover Kit for 30mm Nuts
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all orders

DynaTrac DT320 Off Road Mounted On 22.5 22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides Wheel Kit

2 sold in last 8 days
225750-DT320

$4,349.00

Free Shipping on All Orders!

Stepping up to a set of Northstar 22.5" wheels gives you an extra 12,000 lbs of towing capacity. Using 8 x 275mm bolt pattern, this 6 wheel kit was made to improve your Chevy/GMC 4500/5500 or to replace you Class A Motorhome's wheels. Dynatrac off road tread tires come mounted and balanced.


DynaTrac DT320 Off Road Mounted On 22.5 22.5x7.5 Northstar 8x275mm Hub Pilot Mirror Polished Both Sides Wheel Kit

Stepping up to 22.5" wheels shows you aren't afraid to make bold moves. Upgrading to a 6 wheel kit like this will land you in the driver seat of an extra 12,000 lbs of towing capacity. It also gets your medium duty truck up to dock height. Built with a 8 x 275mm bolt pattern, these wheels were made to improve your Chevy/GMC 4500/5500 or to replace you Class A Motorhome's wheels.

This kit comes with a set of aggressive off road tires. Their open shoulder design and zig-zag center tread help deliver a long tread life and traction in wet or dry conditions. Tires come with a 6 year warranty and carries a casing allowance for 2 retreads.

Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest price. Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.

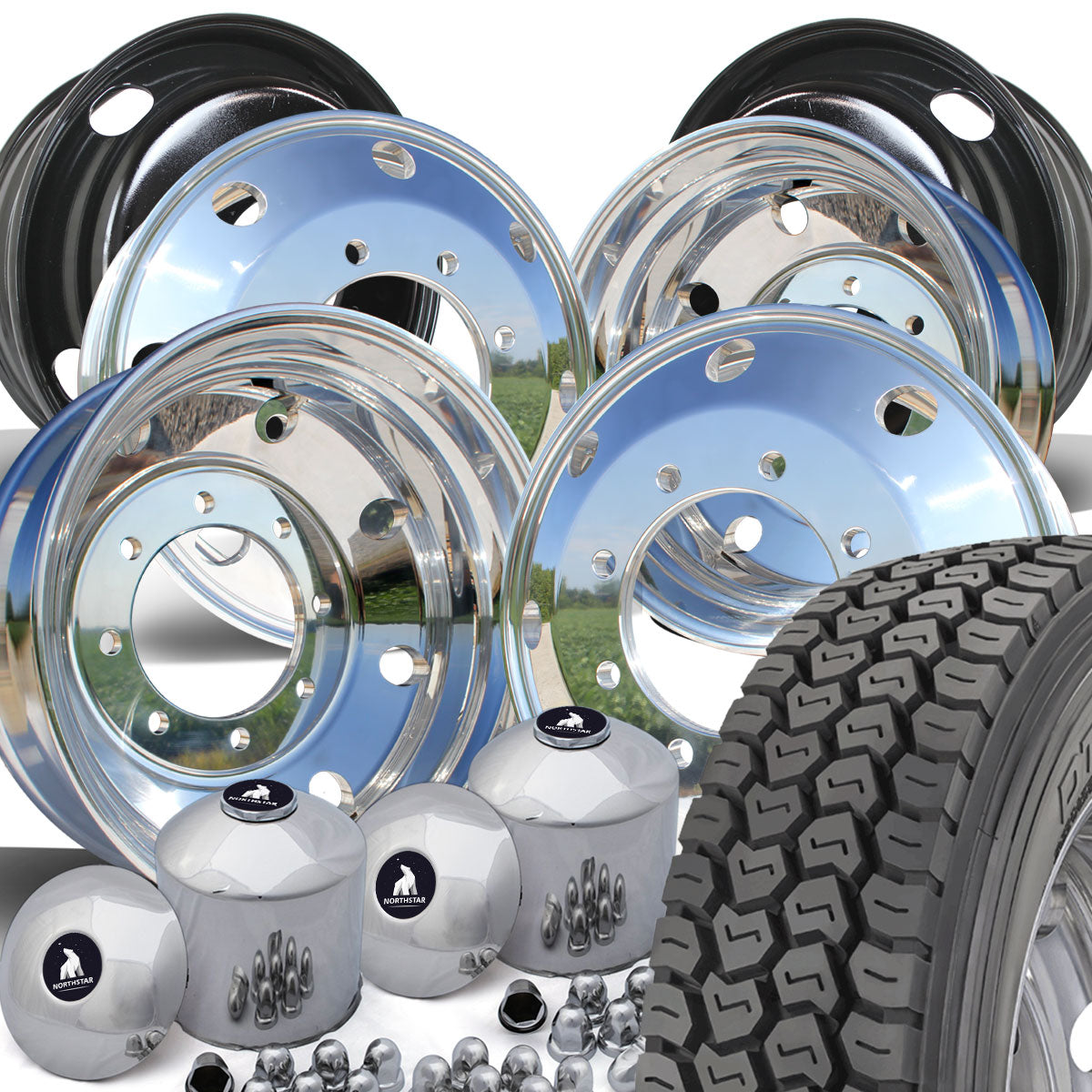

Kit Includes:

6 - DynaTrac Off Road Tires (DT320 255/70R22.5)
4 - Northstar Aluminum Wheels Mirror Polished Both Sides (225750)
2 - Jantsa Black Steel Inner Dual Wheels (750279)

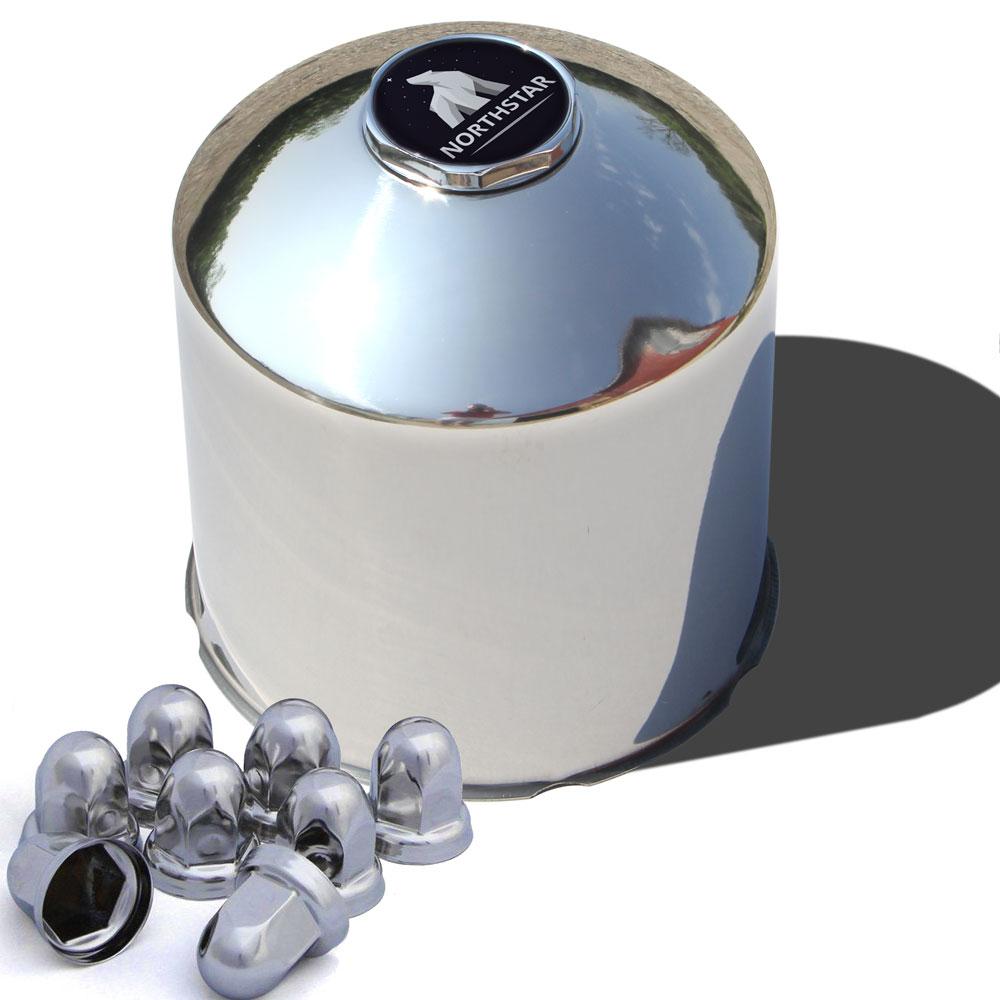

2 - Front Northstar Stainless Steel Hub & Lug Cover Kit (22120)
2 - Rear Northstar Stainless Steel Hub & Lug Cover Kit (22220)

Tire Specs:

Tire Size: 255/70R22.5 (36.89")
Ply & Load Range: 16 / H
Max Load Single: 5510 lbs @ 120 psi
Max Load Dual: 5070 lbs @ 120 psi
Tread Depth: 22/32"
Weight: 96 lbs

Aluminum Specs:

Material: 6061 Fully Forged Aluminum
Finish: Mirror Polished Both Sides
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 8 x 2.00"
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .92"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D

Steel Specs:

Material: Steel
Finish: Painted Black
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 4
Wheel Offset: 6.02"
Backspacing: N/A
Disc Thickness: .43"
Weight: 76 lbs
Max Load & Inflation: 7100 lbs @ 120 psi
Installed Valve Stem: TR-573-E17

Additional Information:

Fits These Applications:
Motorhome & RV Workhorse Chassis
Chevrolet 4500/5500 Kodiak
GMC 4500/5500 Topkick
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)

Replaces Parts:
873401
873402
225750
29028
90614
