DynaTrac DT320 OFF ROAD MOUNTED ON 22.5 Northstar Chevy Silverado 4500HD/5500HD 8x275 Wheel Kit (33mm)
Free Shipping on All Orders!
Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels will get your truck up to dock height. The 8x275 bolt pattern also fits most class A motorhomes.
This kit comes with a set of aggressive off road tires. Their open shoulder design and zig-zag center tread help deliver a long tread life and traction in wet or dry conditions. Tires come with a 6 year warranty and carries a casing allowance for 2 retreads.
Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest price. Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.

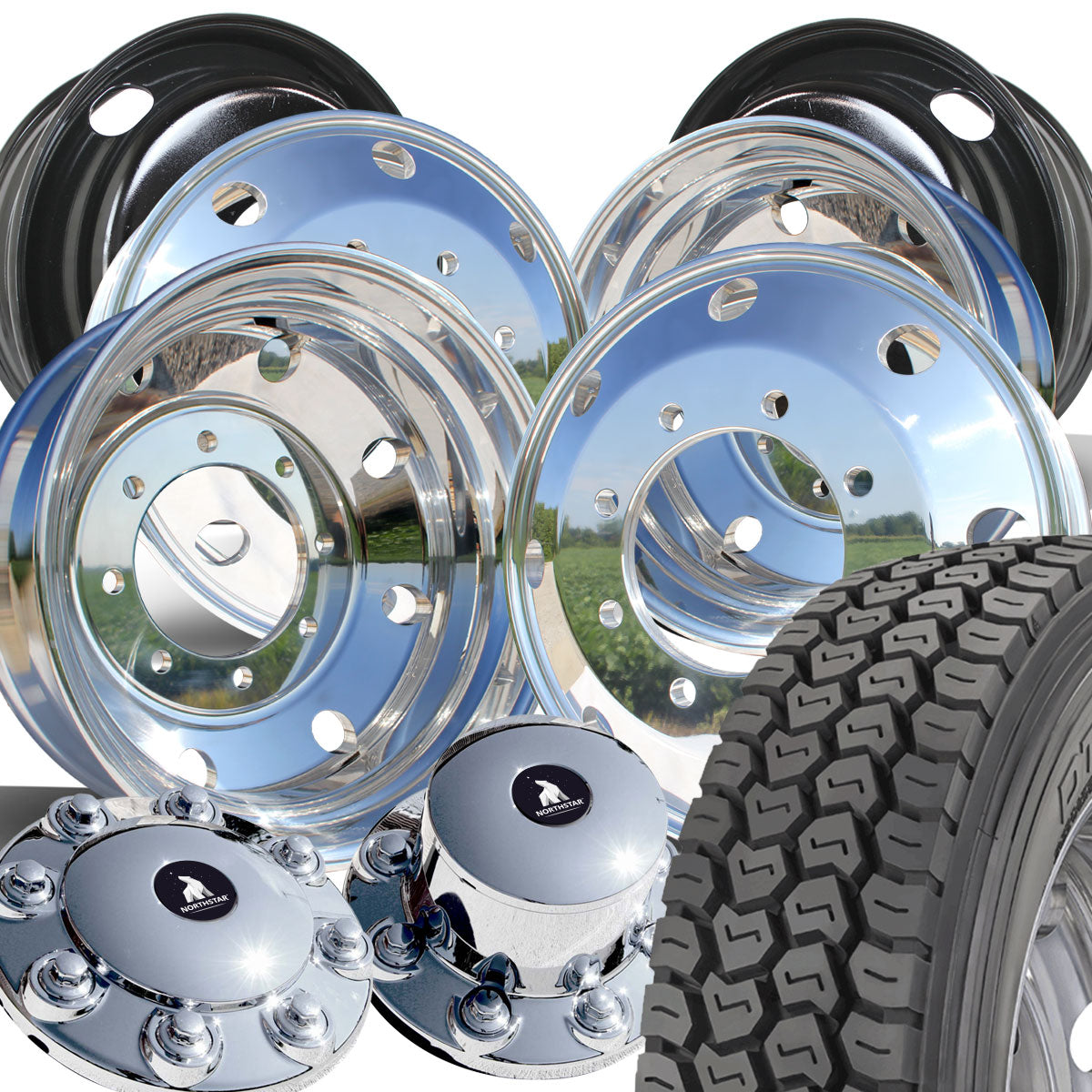

Kit Includes:
6 - DynaTrac Off Road Tires (DT320 255/70R22.5)4 - Northstar Aluminum Wheels Mirror Polished Both Sides (225750)
2 - Jantsa Black Steel Inner Dual Wheels (750279)
2 - Front Alcoa Chrome Plastic Hub & Lug Cover Kit
2 - Rear Alcoa Chrome Plastic Hub & Lug Cover Kit

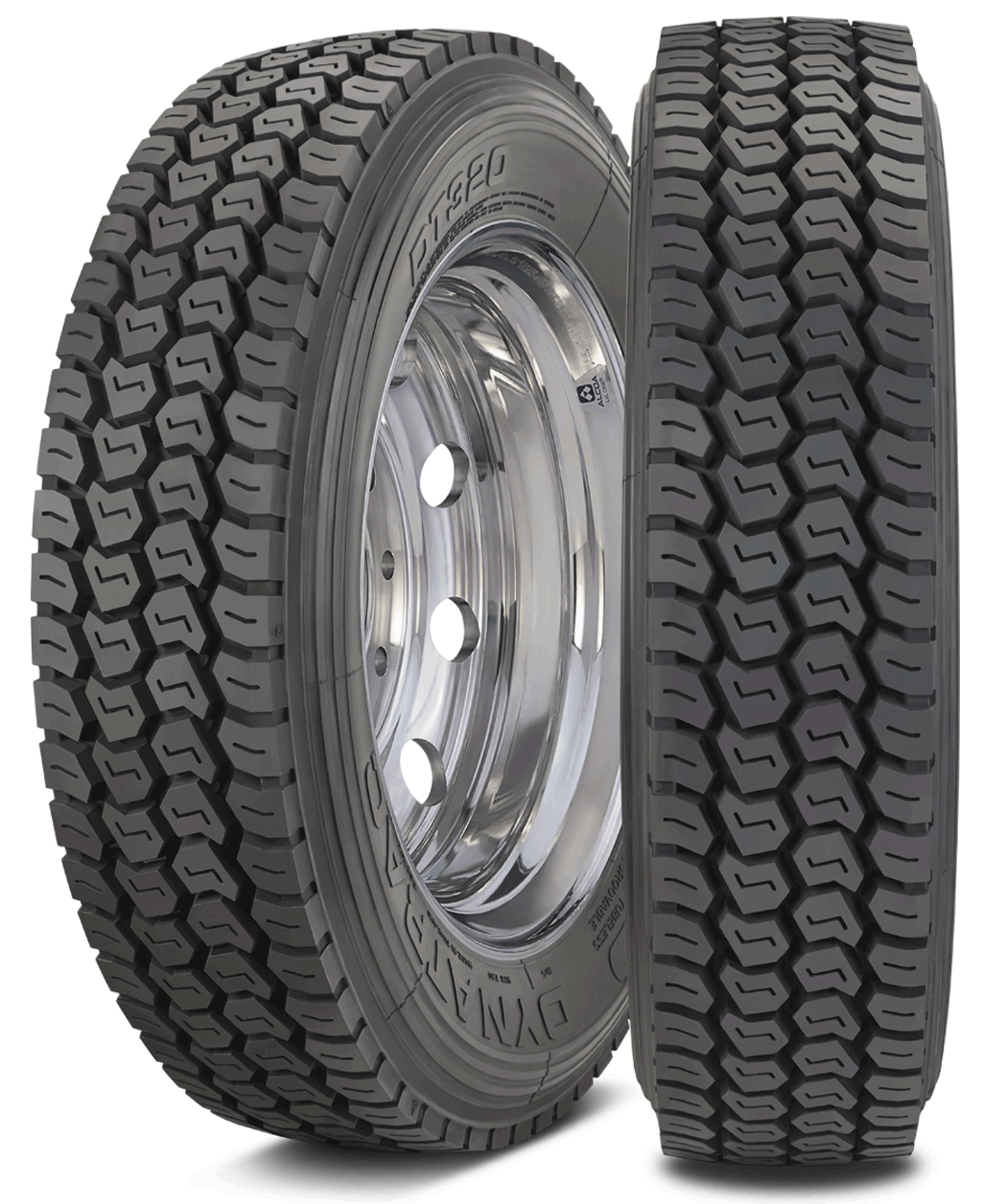

Tire Specs:
Tire Size: 255/70R22.5 (36.89")Ply & Load Range: 16 / H
Max Load Single: 5510 lbs @ 120 psi
Max Load Dual: 5070 lbs @ 120 psi
Tread Depth: 22/32"
Weight: 96 lbs

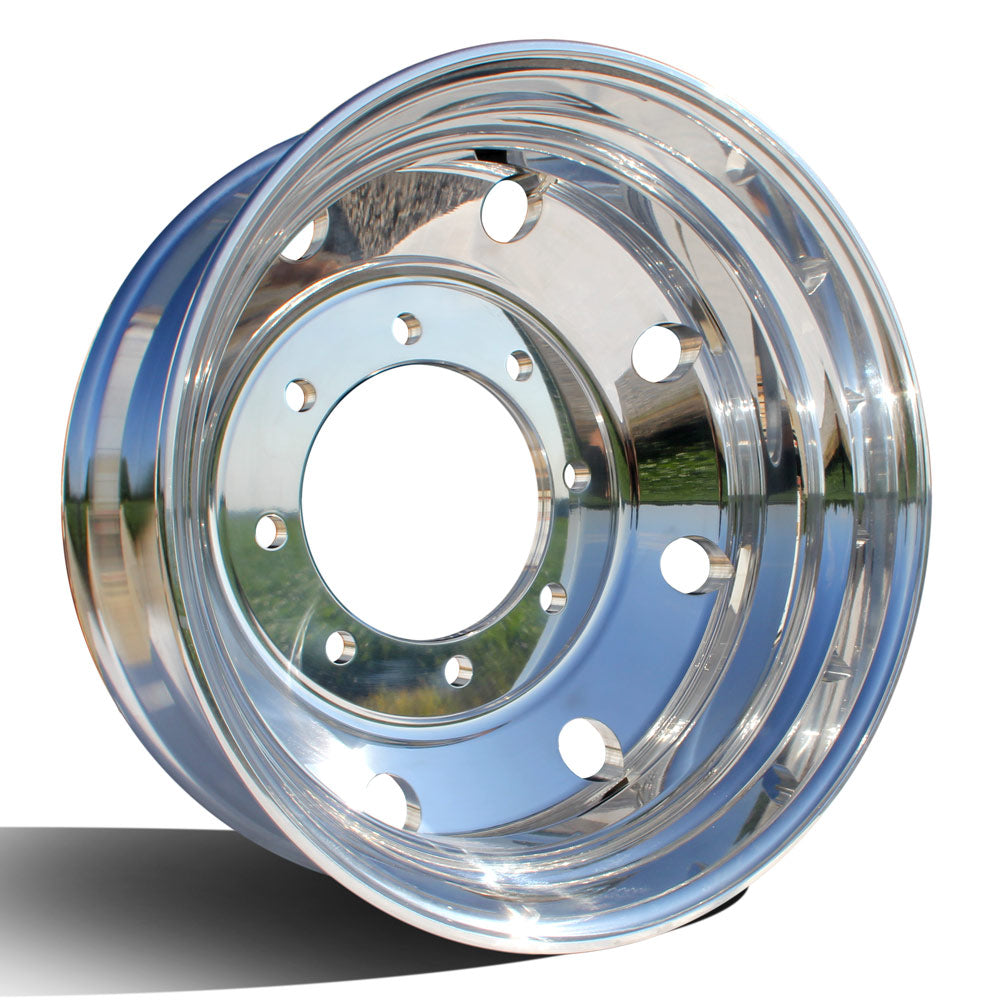

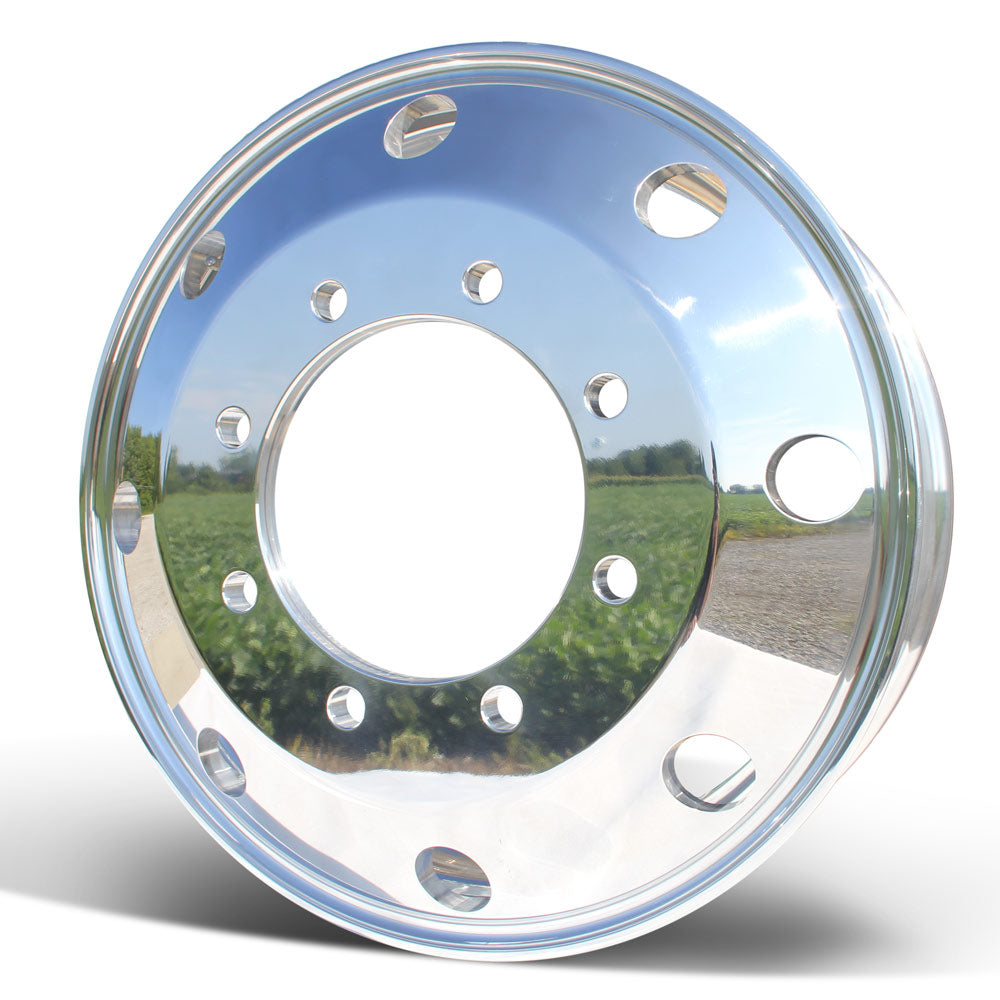

Aluminum Specs:
Material: 6061 Fully Forged AluminumFinish: High Polished Both Sides
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 8 x 2.00"
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .84"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D

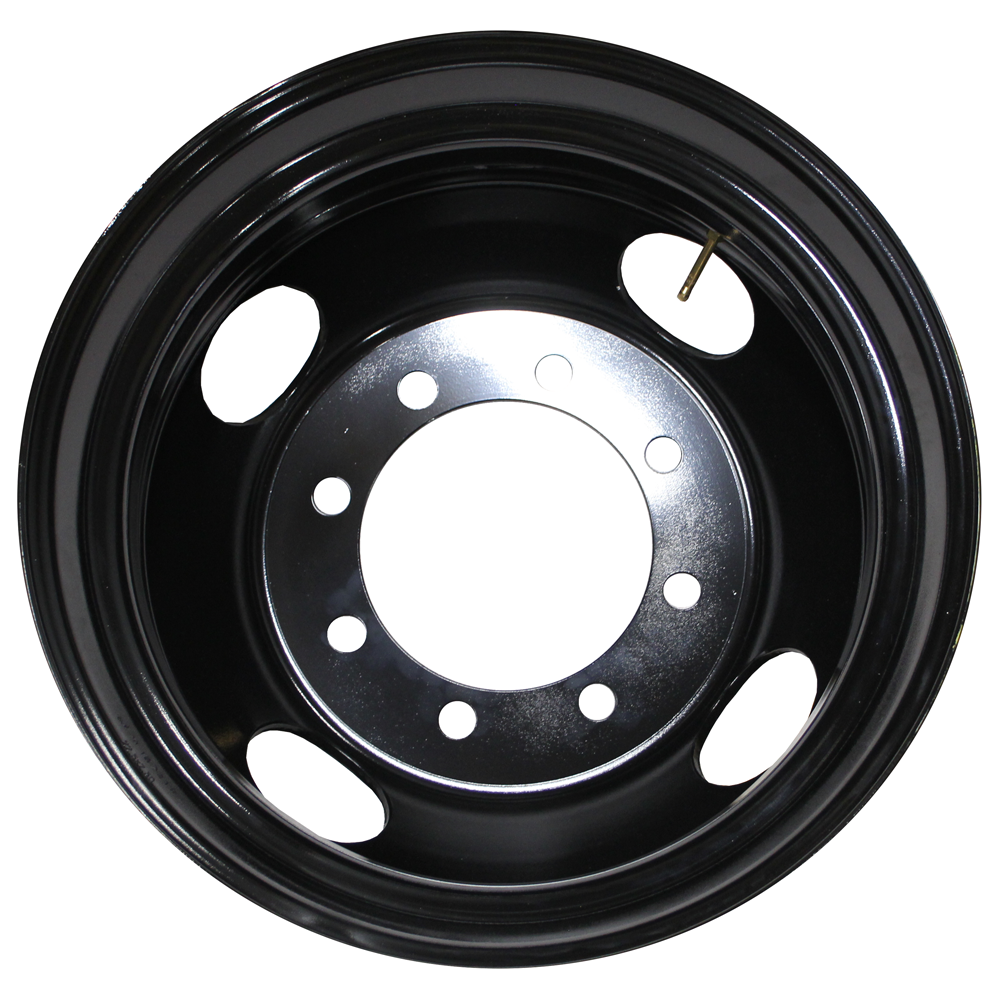

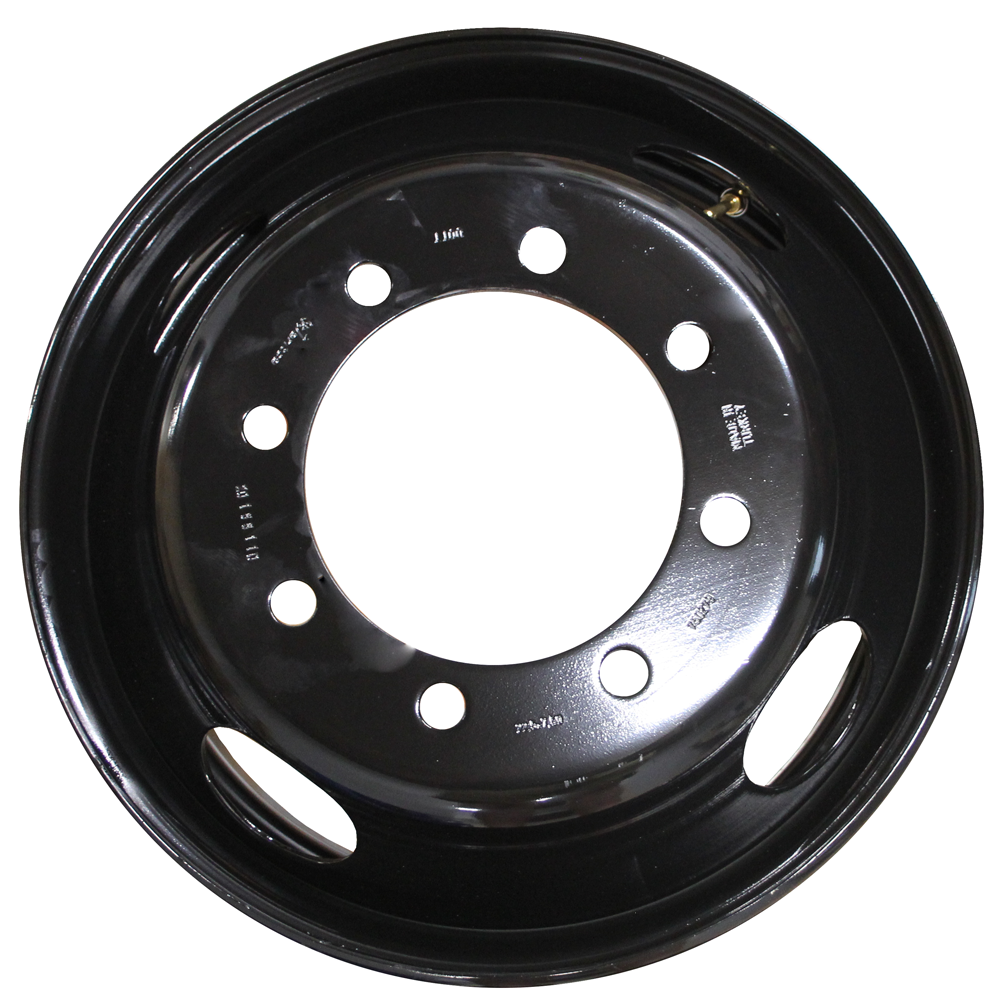

Steel Specs:
Material: SteelFinish: Painted Black
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 4
Wheel Offset: 6.02"
Backspacing: N/A
Disc Thickness: .43"
Weight: 76 lbs
Max Load & Inflation: 7100 lbs @ 120 psi
Installed Valve Stem: TR-573-E17
Additional Information:
Chevrolet Silverado 4500HD/5500HD (2019 - current)
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)
873401
873402
225750
29028
90614
