19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit

AF1970Kit
In Stock - Free Shipping
Wheel Kit
Sale
19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit
19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit
19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit
19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all US orders*

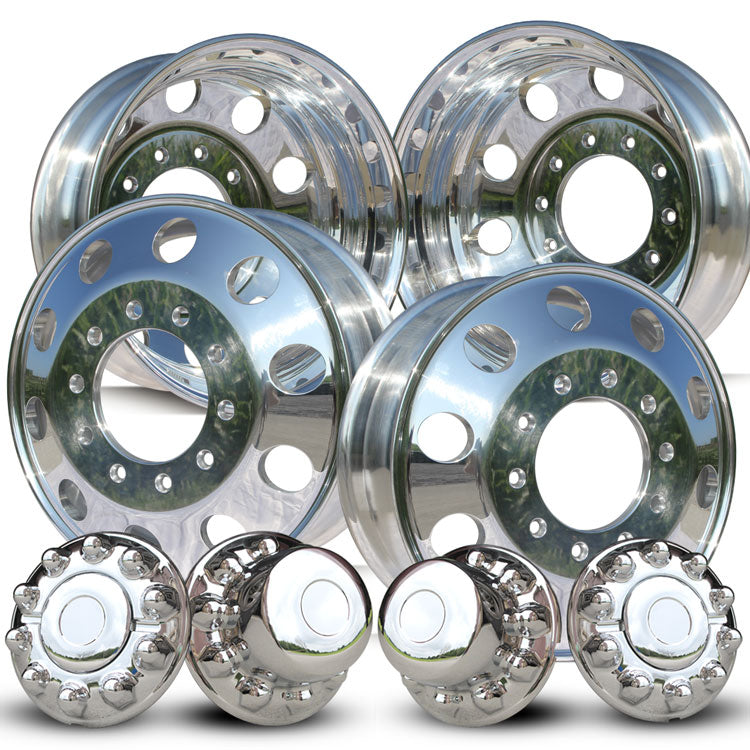

Motorhome Aluminum Kit for Ford F-53 & F-59 Chassis. This 10 Lug Wheel is typical for years 2005 and up. Set comes with 4 Aluminum Polished Wheels and Alcoa Hub Covers.

19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit

AF1970Kit
In Stock - Free Shipping
Wheel Kit
Motorhome Aluminum Kit for Ford F-53 & F-59 Chassis. This 10 Lug Wheel is typical for years 2005 and up. Set comes with 4 Aluminum Polished Wheels and Alcoa Hub Covers.
$2,400.00 $2,772.00


customers are viewing this product

Expected Ship Date: Fri Oct 20, 2023
19.5x6.75 AMERICAN FORCE 2005-Present Ford F53 10x225mm Dually Kit

WHEEL SPECS


GENERAL SPECS

Material
Aluminum
Finish
Mirror Polish
Mounting Set Up
Hub-Piloted (Two-Piece Flange Nut) Dual
Wheel Size
19.5 x 6.75
Bolt Pattern (PCD)
10 x 225mm
Hub Bore Diameter
170.1mm
Wheel Offset
5.35"
Backspacing
10.3"
Weight
41 lbs
Max Load
4500 lbs

Kit Includes:

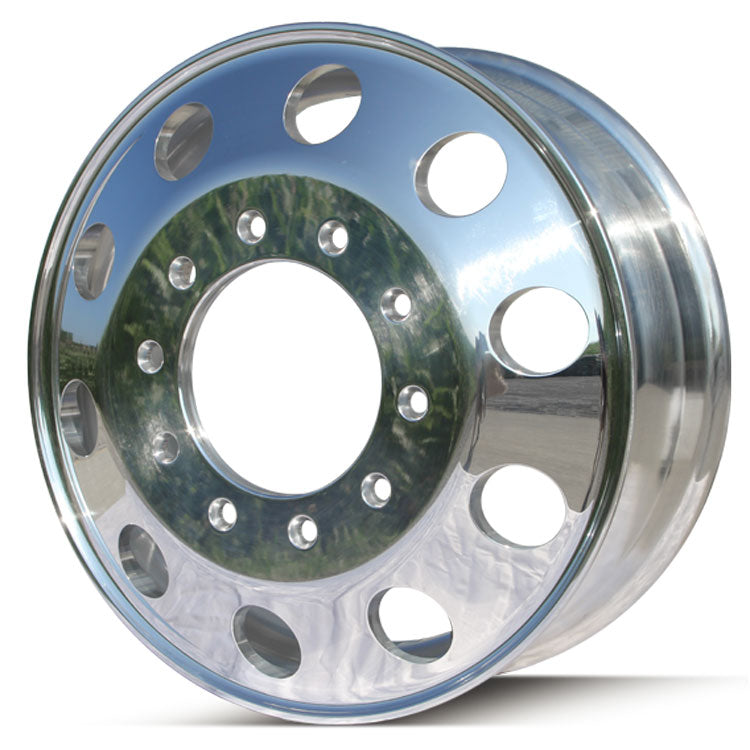

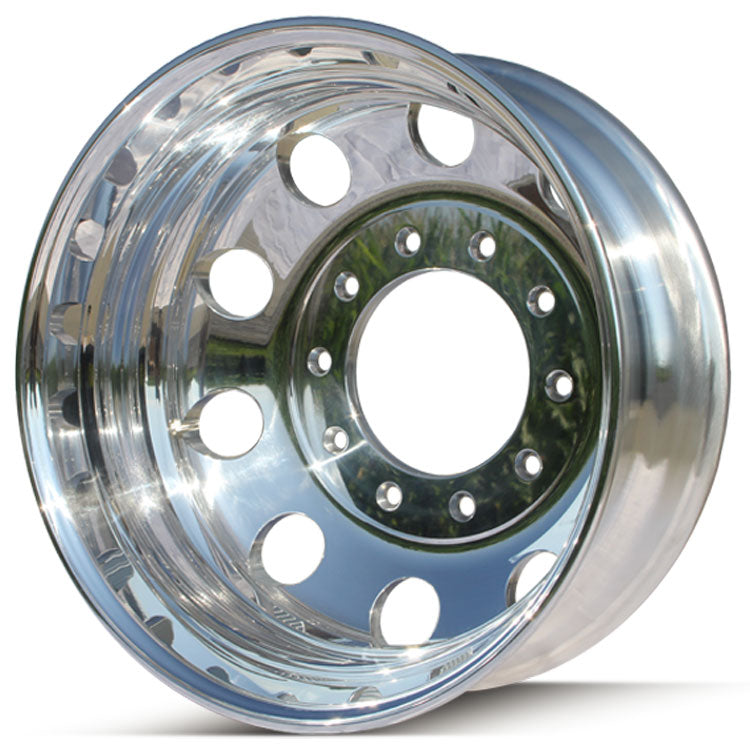

2 - 19.5 x 6.75 Polished Front Aluminum Wheels (AF19700141)
2 - 19.5 x 6.75 Polished Rear Aluminum Wheels (AF19700141)

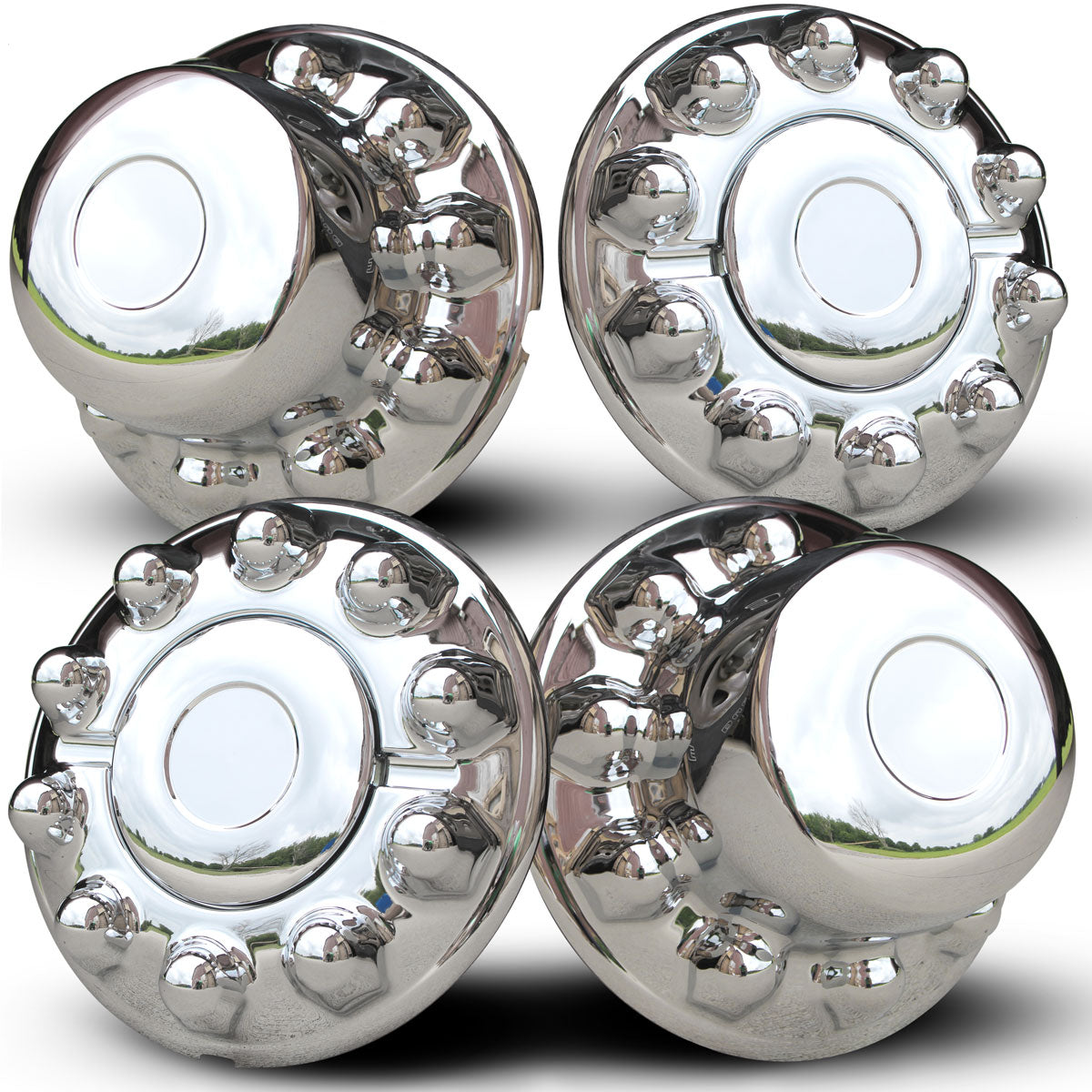

2 - Front Axle Chrome Plastic Hub/Nut Cover Kit
2 - Rear Axle Chrome Plastic Hub/Nut Cover Kit
40 - 22mm Hex Nuts M14 x 1.5 PH4327

Finish: Polished
10-Hole, 225mm Bolt Circle, 170.30mm Bore
Hub-Piloted Dual-Mounting (Two-Piece Flange Nut)
Weight: 41 lbs
Max Load: 4500lbs
Valve Stem Installed
Wheel Offset: 5.35"
Wheel Backspacing: 10.3"


Recommended Tire Size:
225/70R19.5
245/70R19.5
265/70R19.5

This wheel kit fits the following applications:

2005 Ford F53 Motorhome Chassis
2006 Ford F53 Motorhome Chassis
2007 Ford F53 Motorhome Chassis
2008 Ford F53 Motorhome Chassis
2009 Ford F53 Motorhome Chassis
2010 Ford F53 Motorhome Chassis
2011 Ford F53 Motorhome Chassis
2012 Ford F53 Motorhome Chassis

2013 Ford F53 Motorhome Chassis
2014 Ford F53 Motorhome Chassis
2015 Ford F53 Motorhome Chassis
2016 Ford F53 Motorhome Chassis
2017 Ford F53 Motorhome Chassis
2018 Ford F53 Motorhome Chassis
2019 Ford F53 Motorhome Chassis
