Hercules HRA Highway Tread Mounted on 22.5 Northstar Polished Chevy Silverado 4500HD/5500HD Wheel Kit (33mm)
Free Shipping on All Orders!
Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height. The 8x275 bolt pattern also fits most class A motorhomes.

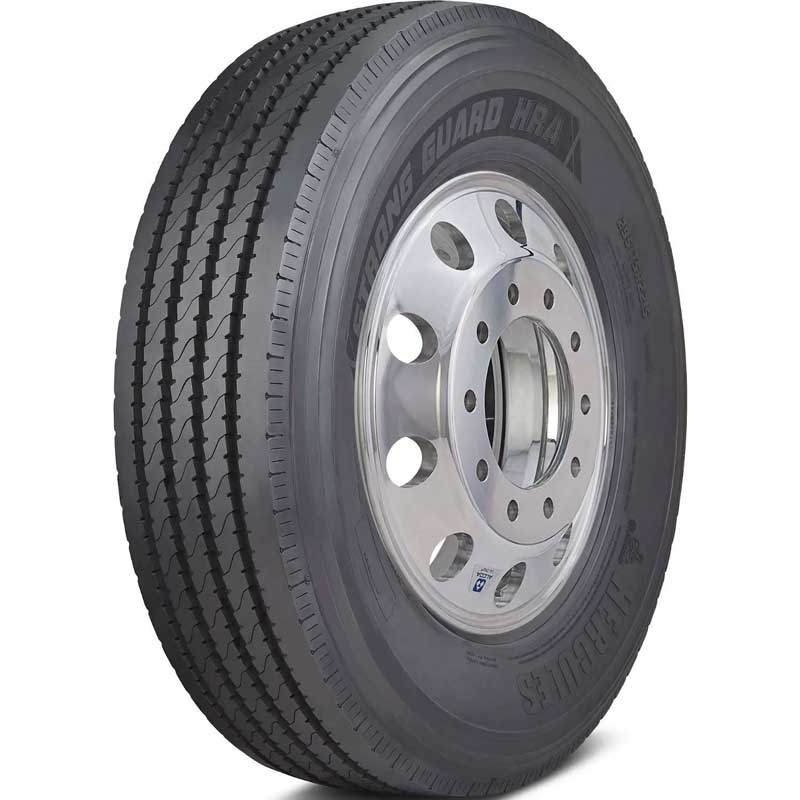

The Hercules Strong Guard H-RA tires feature a wide solid shoulder design for even wear and lateral stability, zig-zag groove design for outstanding handling, and multi-point edged grooves for improved dry and wet traction. They also come with a Limited Protection Policy covering defects for 84 months from purchase, offering a free replacement during the first 50% of tread life, and allow for 3 retreads.
Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest price. Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.
Kit Includes:

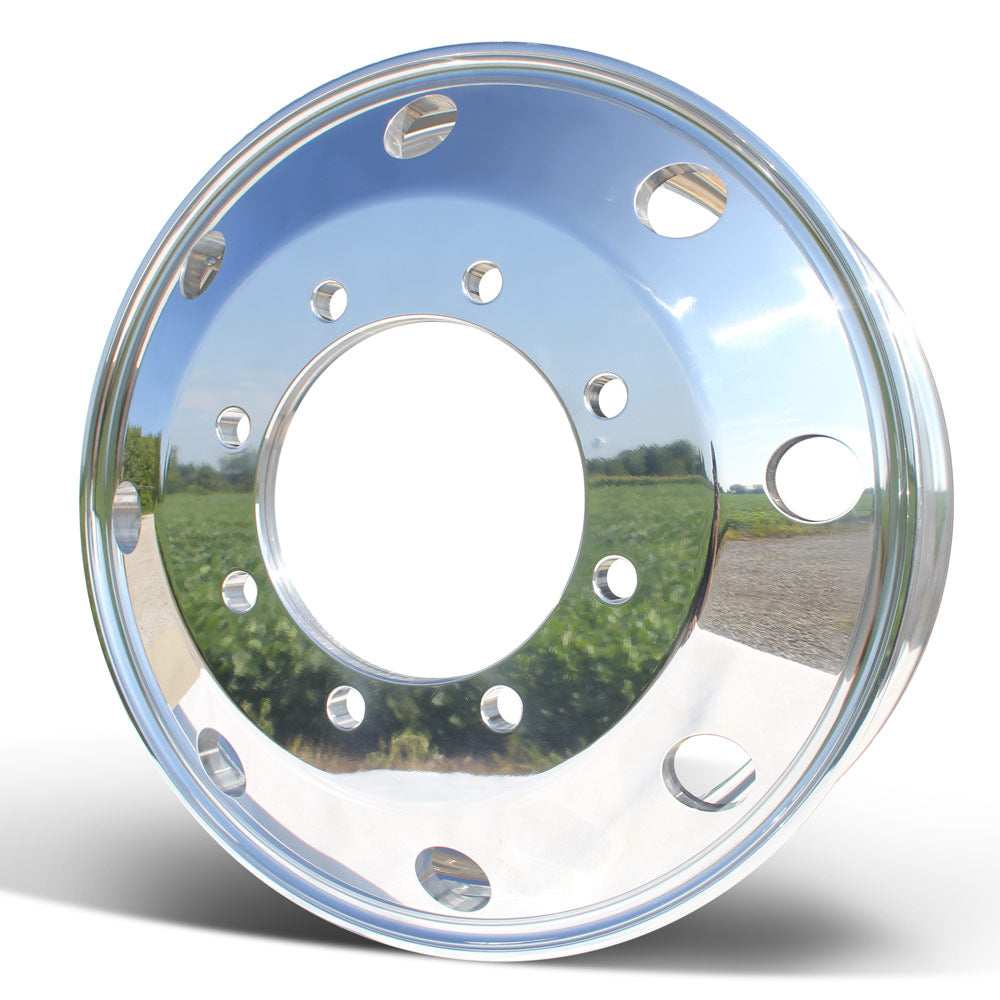

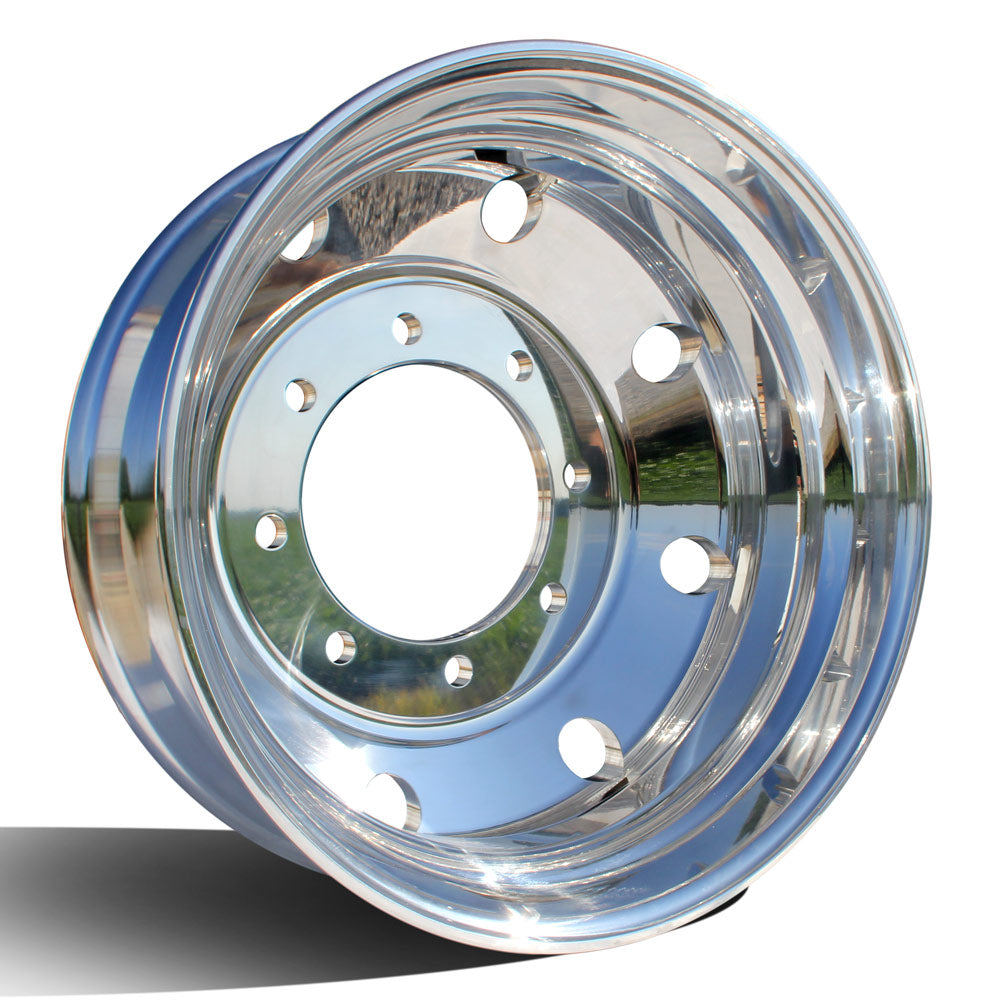

6 - Hercules Highway Tires (HRA 255/70R22.5)4 - Northstar Aluminum Wheels Mirror Polished Both Sides (225750)

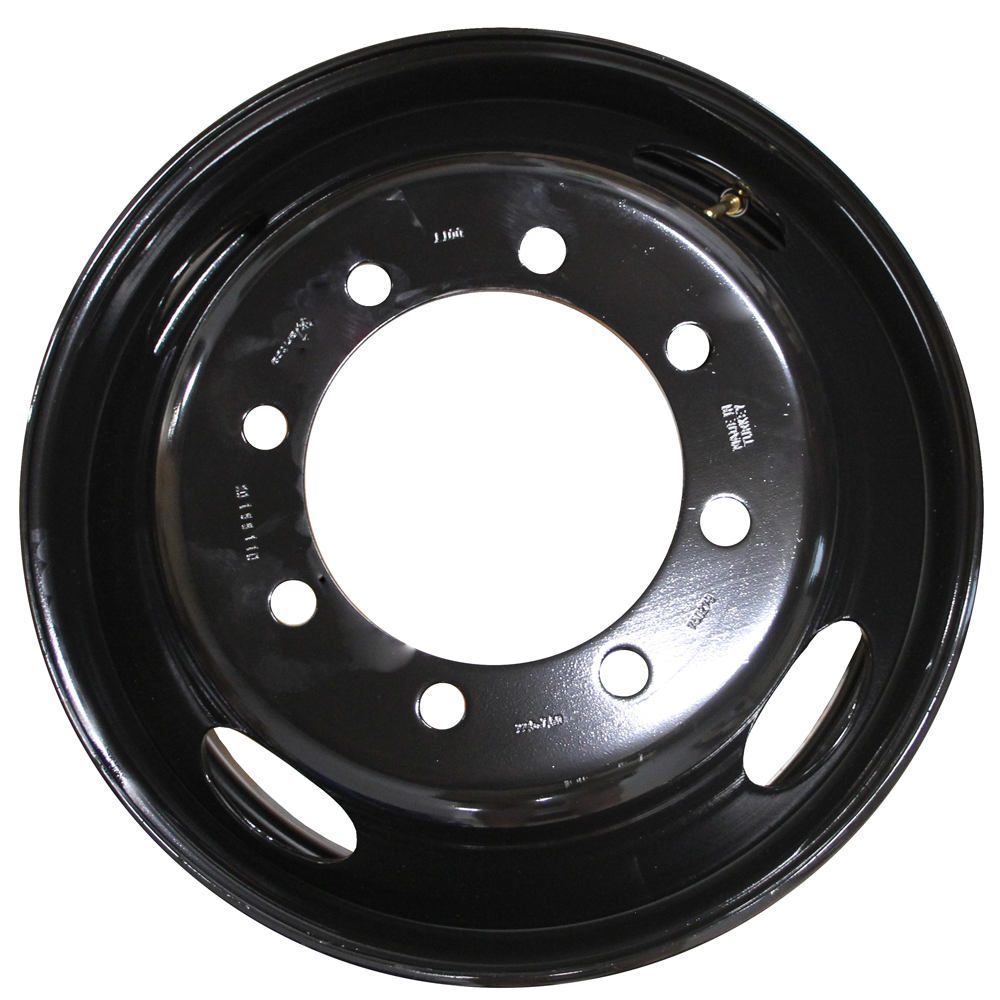

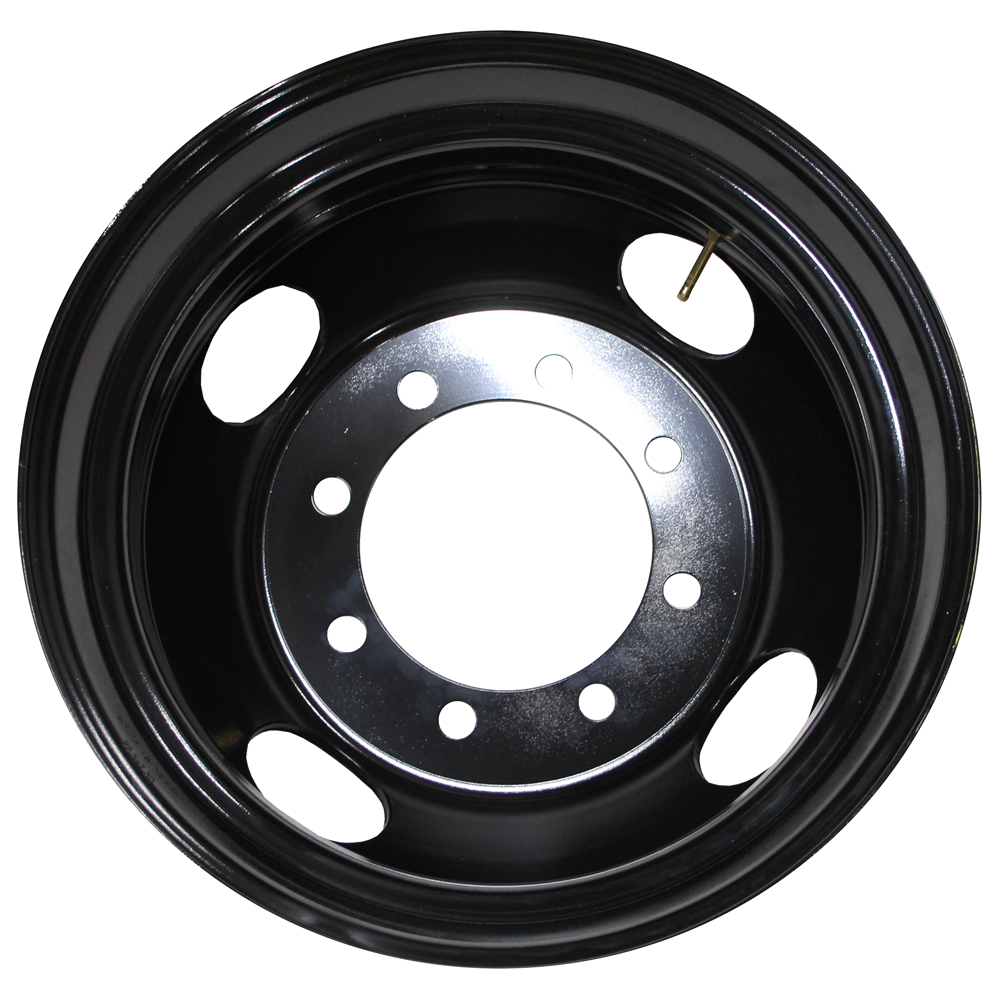

2 - Jantsa Black Steel Inner Dual Wheels (750279)
2 - Front Alcoa Hub & Lug Cover Kit
2 - Rear Alcoa Hub & Lug Cover Kit
Tire Specs:
Tire Size: 255/70R22.5 (36.61")Ply & Load Range: 16 / H
Max Load Single: 5510 lbs @ 120 psi
Max Load Dual: 5070 lbs @ 120 psi
Tread Depth: 17/32"
Weight: 92 lbs
Aluminum Specs:
Material: 6061 Fully Forged AluminumFinish: High Polished Both Sides
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 8 x 2.00"
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .84"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D
Steel Specs:
Material: SteelFinish: Painted Black
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 4
Wheel Offset: 6.02"
Backspacing: N/A
Disc Thickness: .43"
Weight: 76 lbs
Max Load & Inflation: 7100 lbs @ 120 psi
Installed Valve Stem: TR-573-E17
Additional Information:
Motorhome & RV Workhorse Chassis
Chevrolet 4500/5500 Kodiak
GMC 4500/5500 Topkick
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)
873401
873402
225750
29028
90614
