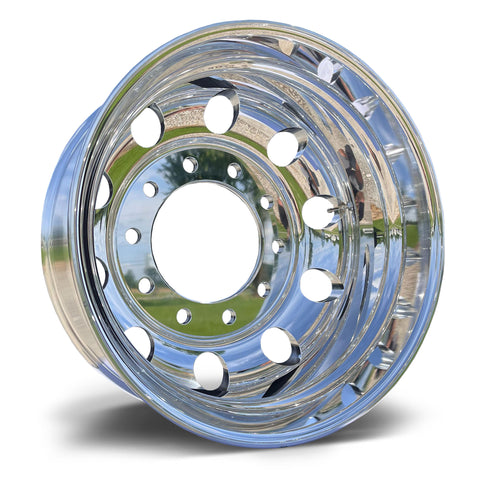

22.5x8.25 Northstar 10x285mm Hub Pilot Mirror Polished Both Sides

22.5x8.25 Northstar 10x285mm Hub Pilot Mirror Polished Both Sides

Vendor: Northstar
SKU: 125820
Availability: In Stock

Free Shipping on All Orders!

This is the standard 11r22.5 rim that will fit most new trucks including: Peterbilt & Kenworth Trucks Freightliner & International Trucks Mack, Western Star, & Volvo Wheel Size: 22.5 x 8.25 Part Number: 125820 Finish: Aluminum Polished Position: Front / Steering 10-Hole, 285.75mm Bolt Circle, 220mm Bore Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer Max Load & Inflation 7400lbs @ 130psi Installed Valve: TR545D Wheel Offset: 6.59" Disc Width: .875" 5 Year Warranty Recommended Tire Size: 255/70R22.5 275/80R22.5 295/75R22.5 11R22.5
$279.00
$279.00
$279.00

Please Login for Bulk Discounts

Subtotal: $279.00

PRODUCT SPECS

Wheel Diameter
22.5, Wheel
Wheel Diameter
22.5 Wheel
Wheel Width
8.25 Wide
Material
Aluminum (6061 Fully Forged)
Finish
High Polished
Mounting Set Up
Hub-Piloted Dual
Bolt Pattern
10 x 285.75mm
Hub Bore Dia.
220mm
Wheel Offset
6.59"
Max Load
7400 lbs
Max Inflation
130 psi
Valve Stem
TR545D

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
33%
(1)
0%
(0)
H
Hector Fernandez
Grate products

Good

D
D Hardy
Quality!!

Good quality wheel at very decent prices.

M
Mr Bill
Have fun mounting tires on these wheels.

These wheels do not have the typical valley of a 22.5 wheel for tire mounting. We couldn't use the traditional mounting method, and ended up paying a tire shop to mount with a machine. The valley is centered on this wheel and gives no room to slide the first bead of the tire on.

We made them work, but it's gonna be an issue everytime we replace tires at a regular tire shop without a mounting machine.
