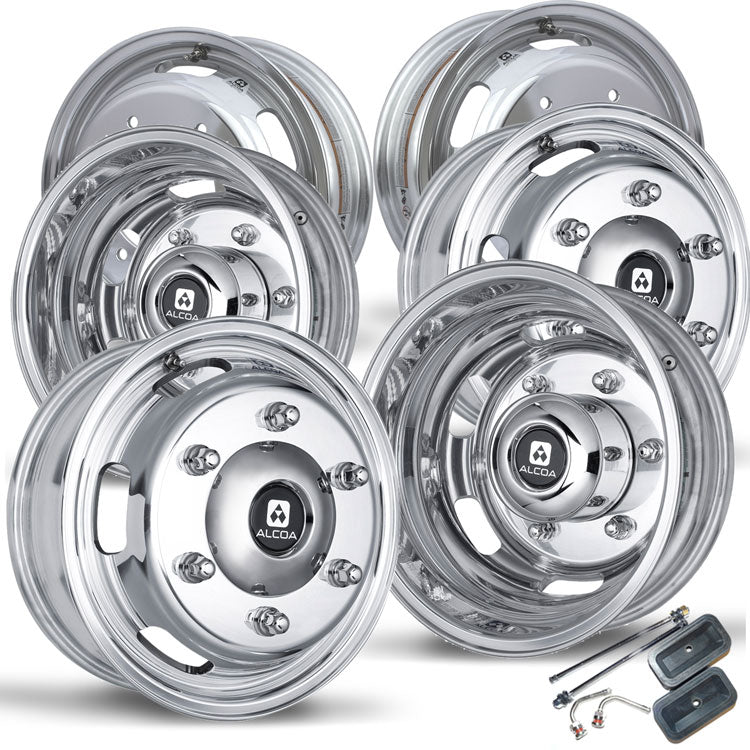

Mercedes Sprinter 3500 Alcoa Mirror Polished 6 Wheel Kit

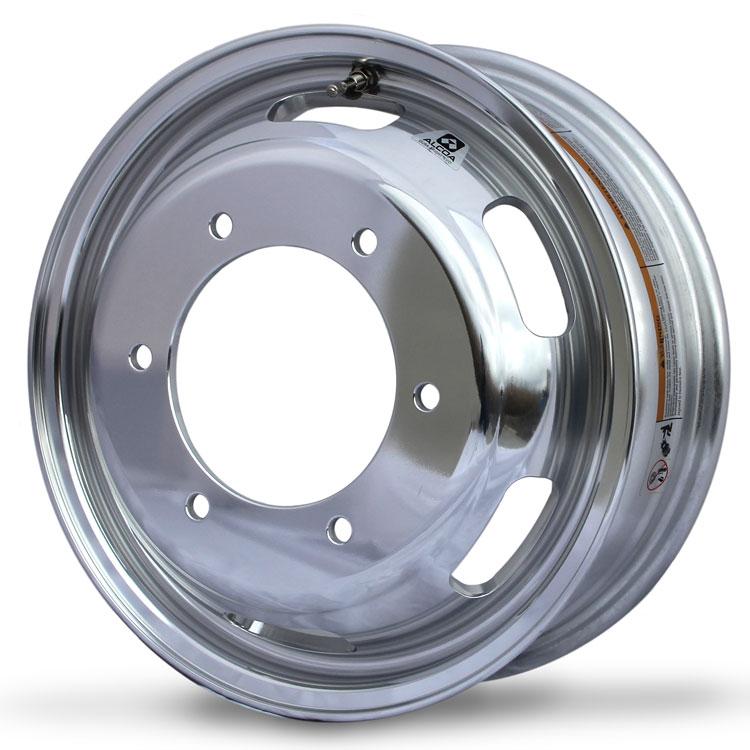

Front 16x5.5 Alcoa Sprinter 3500 Mirror Polished

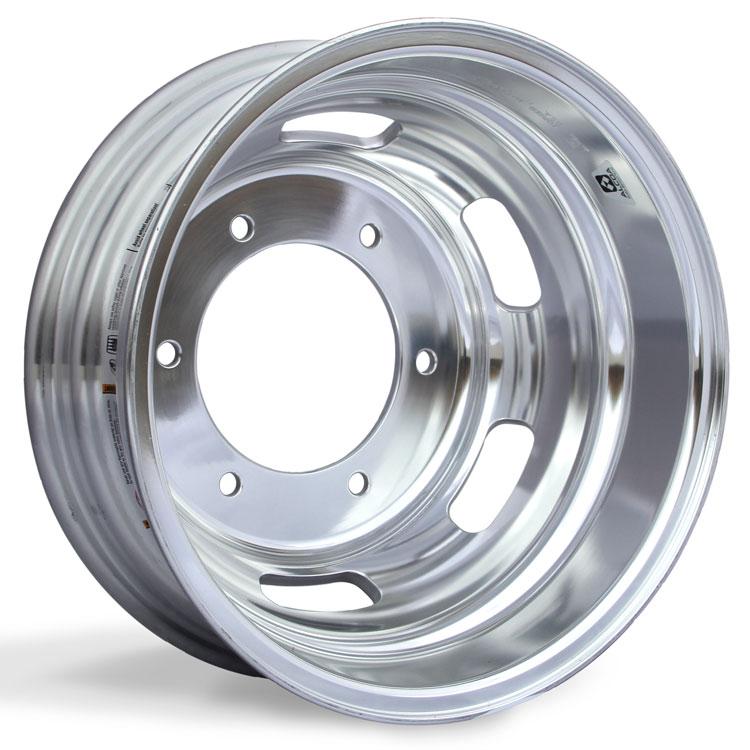

Rear 16x5.5 Alcoa Sprinter 3500 Mirror Polished

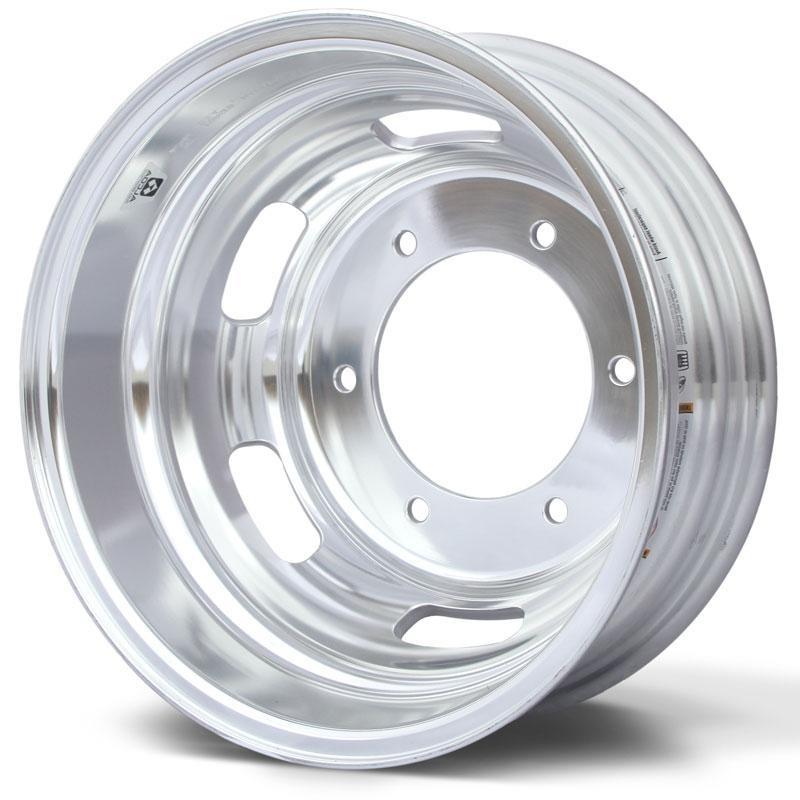

16x5.5 Alcoa Sprinter 3500 Inner Wheel Machine Finish

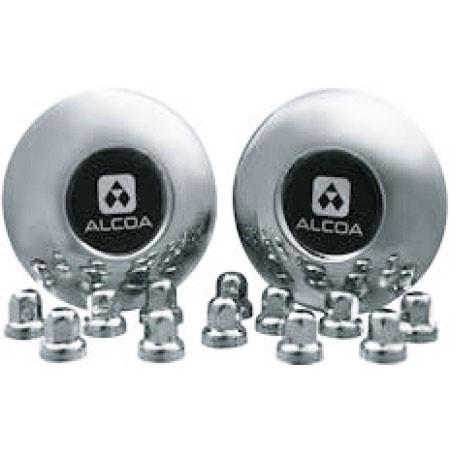

2 Alcoa Stainless Steel Front Dual Hub Covers for Sprinter with 12 Stainless Steel Alcoa Lug Nut Covers

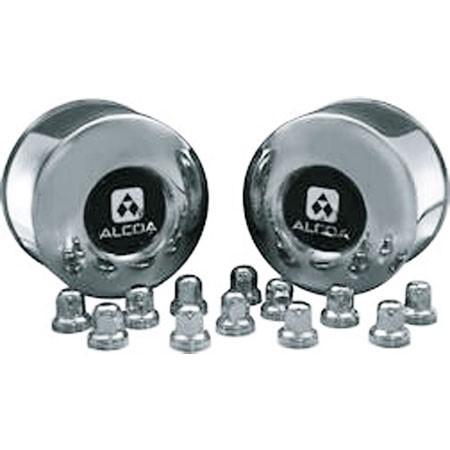

2 Alcoa Stainless Steel Rear Dual Hub Covers for Sprinter with 12 Stainless Steel Alcoa Lug Nut Covers

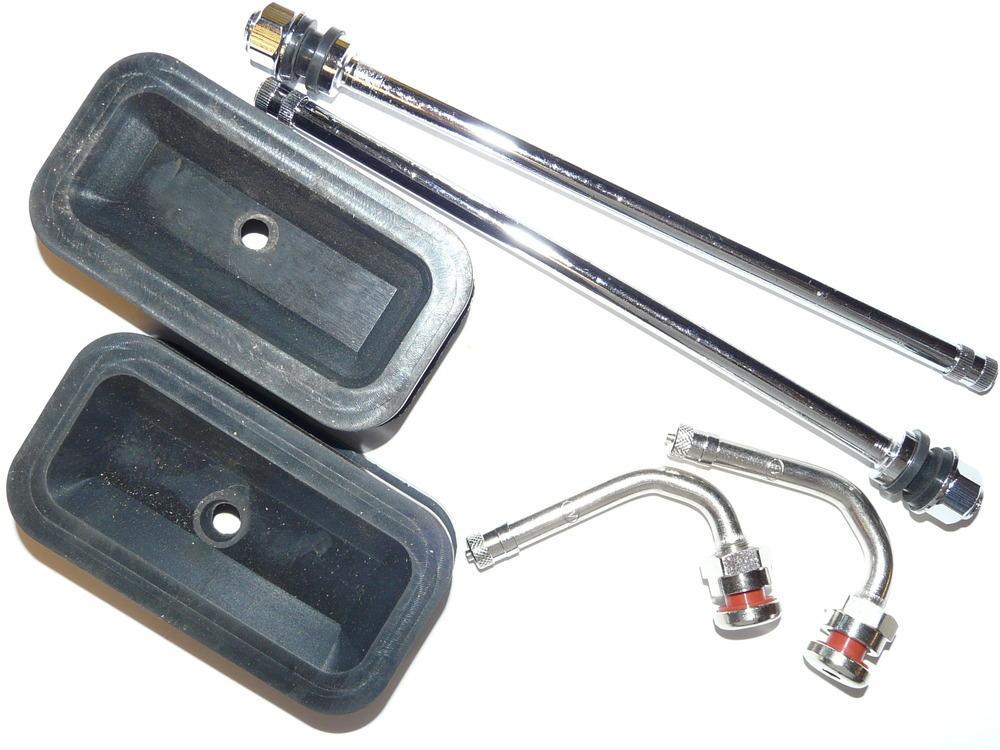

Kit Includes 7” Reverse Mount Chrome Valve stems, 3.75” Triple Bend Chrome Valve Stems and Oval Rubber Grommet Stabilizers
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all US orders*

Mercedes Sprinter 3500 Alcoa Mirror Polished 6 Wheel Kit

Alcoa Wheels
251806 with Caps & Extensions
In Stock - Free Shipping

$2,499.00 $2,650.00

Free Shipping on All Orders!

Transform your RV or Motorhome with a set of 16" Mirror Polished aluminum wheels from Alcoa. This Alcoa wheel kit will fit your Mercedes-Benz Sprinter 3500 DRW. Aluminum wheels are bound to lighten the weight and efficiency of your vehicle.

Customers are Viewing this Product
Mercedes Sprinter 3500 Alcoa Mirror Polished 6 Wheel Kit

This new M-Series™ wheel is designed for the Sprinter 3500. It's a 16" x 5.5" J type wheel that features 6 elongated hand holes for optimal venting and a sleek design. The mirror polish finish is bound to improve your styling on RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis.

This attractive fully forged aluminum wheel is light weight, provides corrosion resistance, and has improved heat management for extended brake and tire life. It weighs only 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the quality that the Sprinter 3500 is known for.

Kit Includes:

2 - Front Alcoa Mirror Polished 16" Wheels (251801)
2 - Rear Alcoa Mirror Polished 16" Wheels (251802)
2 - Rear Inner Alcoa 16" Wheels (251800)
2 - Front Stainless Steel Alcoa Hub Covers (021000)
2 - Rear Stainless Steel Alcoa Hub Covers (022000)
24 - Stainless Steel Alcoa Lug Nut Covers (000135)
2 - 7” Reverse Mount Chrome Valve Stems for Inners Duals
2 - 3.75" Triple Bend Chrome Valve Stems for Outer Duals
2 - Oval Rubber Grommet Stabilizers
1 - Packet of Loctite (To secure Reverse Mount Stems)

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Mirror Polished
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16" x 5.5"
Bolt Pattern: 6x205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 - Elongated
Wheel Offset: 4.94"
Backspacing: N/A
Disc Thickness: .36"
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00

Additional Information:

Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van
Replaces Parts:
25080
Recommended Tire Sizes:
LT215/85R16
