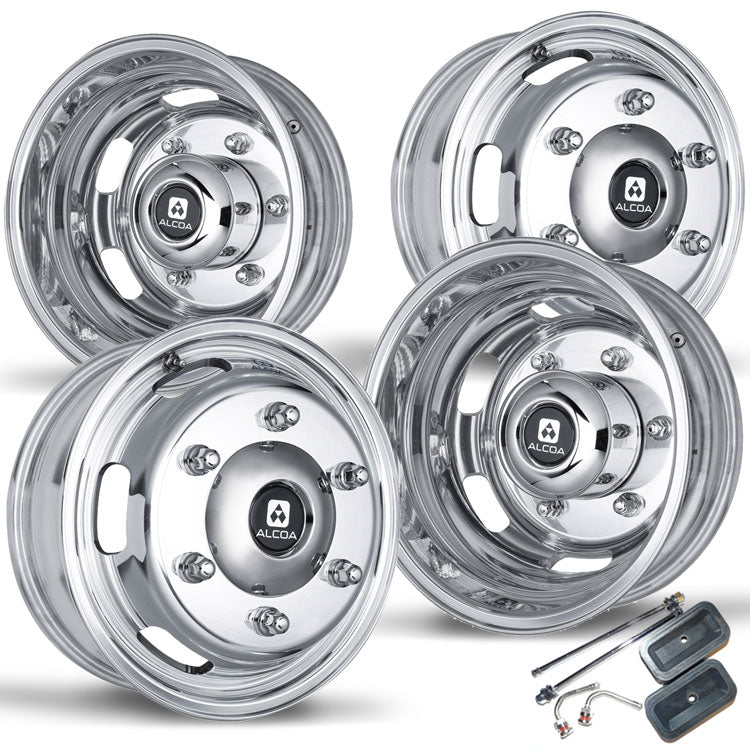

16x5.5 Alcoa Sprinter 3500 Mirror Polished 4 Wheel Package
Free Shipping on All Orders!

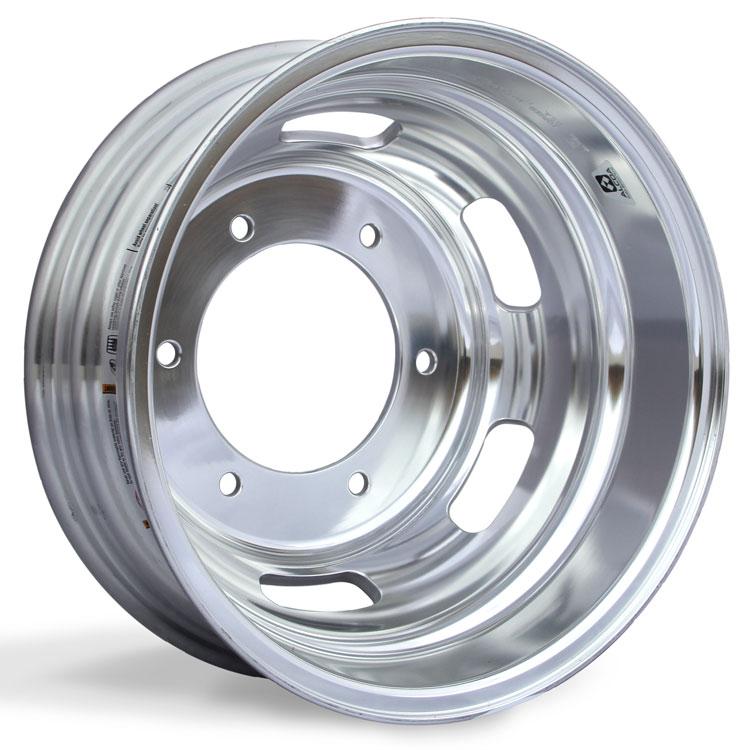

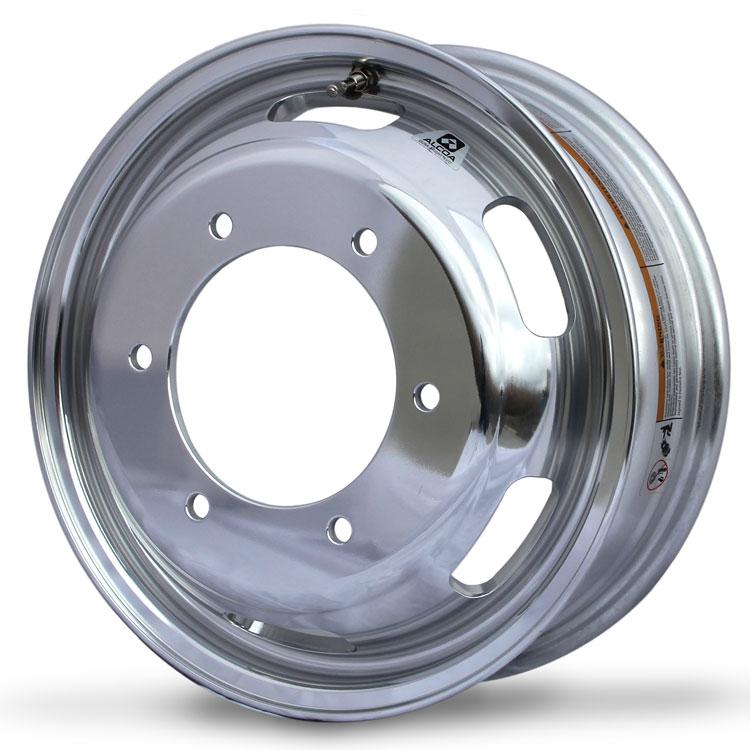

This new M-Series™ wheel is designed for the Sprinter 3500. It's a 16" x 5.5" J type wheel that features 6 elongated hand holes for optimal venting and a sleek design. The mirror polish finish is bound to improve your styling on RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis.
This attractive fully forged aluminum wheel is light weight, provides corrosion resistance, and has improved heat management for extended brake and tire life. It weighs only 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the quality that the Sprinter 3500 is known for.
2 - Rear Alcoa Mirror Polished 16" Wheels (251802)

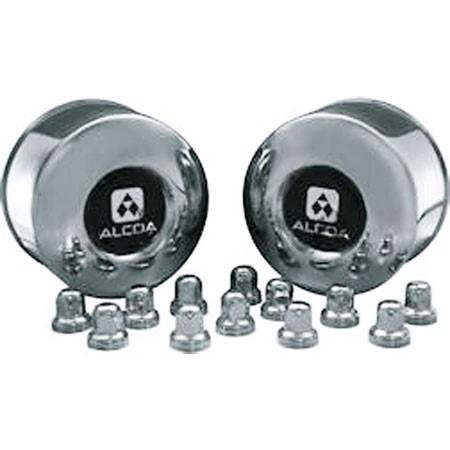

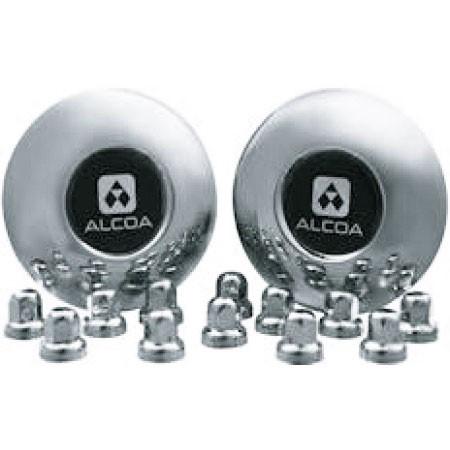

2 - Front Stainless Steel Alcoa Hub Covers (021000)
2 - Rear Stainless Steel Alcoa Hub Covers (022000)
24 - Stainless Steel Alcoa Lug Nut Covers (000135-24)

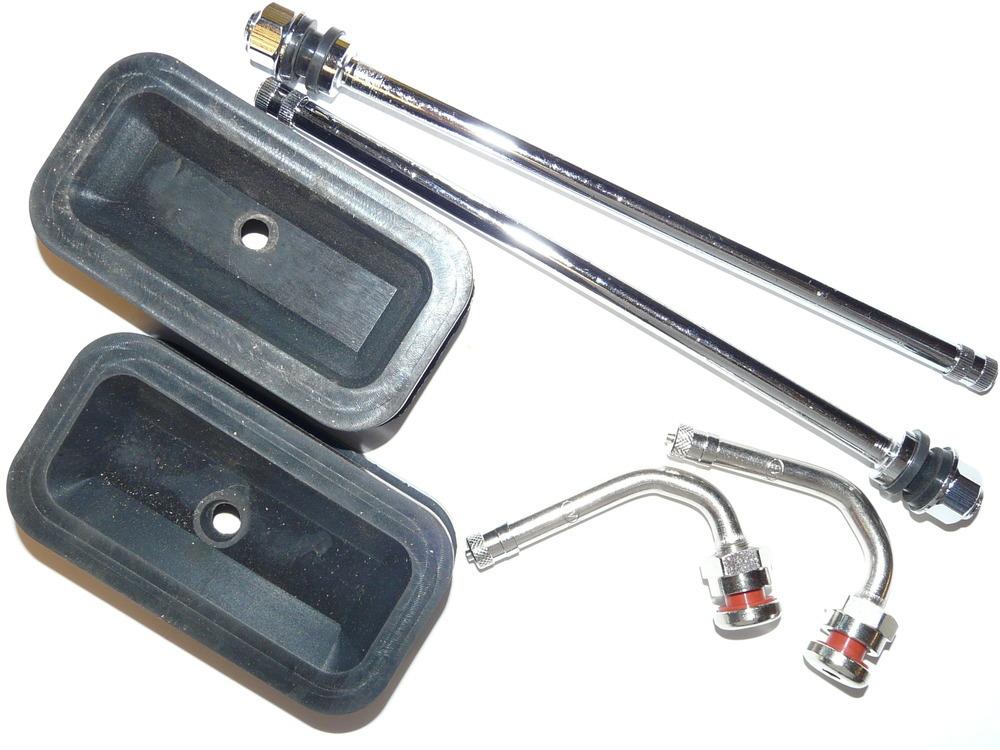

2 - 3.75" Triple Bend Chrome Valve Stems for Outer Duals
2 - Oval Rubber Grommet Stabilizers
1 - Packet of Loctite (To secure Reverse Mount Stems)
Finish: Mirror Polished
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16" x 5.5"
Bolt Pattern: 6x205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 - Elongated
Disc Thickness: .36"
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van
Similar Wheel Options:
Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
