Upgrade Your Sprinter 3500 with Alcoa’s 6-Wheel Kit Featuring Dura-Bright® Finish and Machine-Finished Inner Wheels
Discover the ultimate in low-maintenance, long-lasting shine with Alcoa’s Dura-Bright® Finish. This innovative wheel technology provides a brilliant, polished look that holds up through hundreds of washes and thousands of miles without the need for polishing. Alcoa’s Dura-Bright® wheels are engineered for easy care, eliminating the need for caustic cleaning products, which helps protect the environment and reduce overall maintenance costs.
Alcoa’s unique production process transforms their already premium Mirror Polished aluminum wheels by impregnating them with a proprietary blend of chemicals. This process not only enhances their shine but also provides protection against filiform corrosion for up to 10 years, with a guarantee that the wheels will not blister or peel due to loss of adhesion.
6-Wheel Kit Overview:

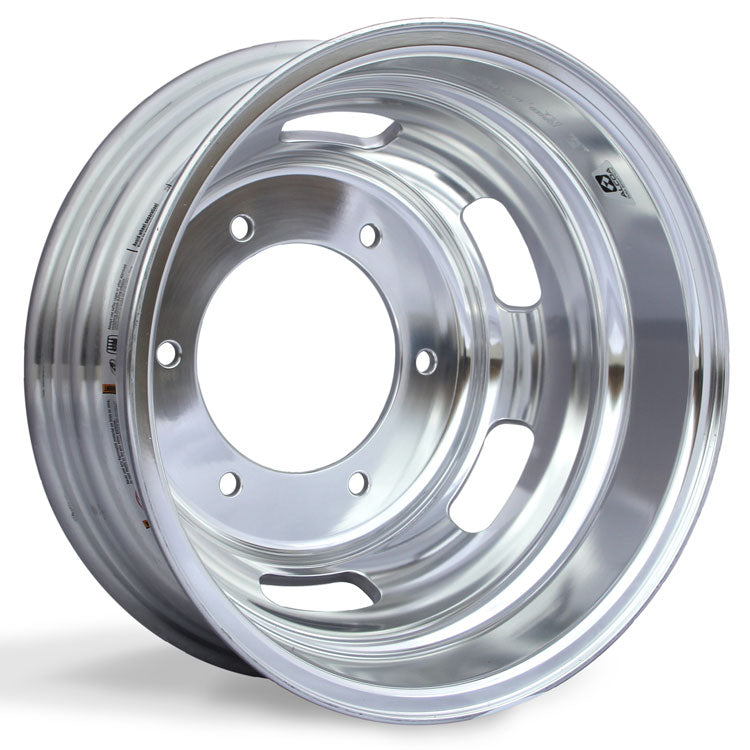

This 6-wheel kit is specifically designed for the Sprinter 3500, allowing you to replace all six steel wheels with lightweight, fully forged aluminum wheels. The kit includes four Dura-Bright® EVO wheels and two inner machine-finished wheels, offering a perfect blend of style, durability, and performance. The M-Series™ wheels feature a 16” x 5.5” J-type design with six elongated hand holes for optimal venting, enhancing both cooling and aesthetics for RVs, shuttles, vans, and work truck upfitters built on the Sprinter 3500 cab/chassis.
Benefits of Alcoa Aluminum Wheels:
1. Enhanced Durability & Maintenance-Free Shine: The Dura-Bright® Finish ensures that the wheels maintain a like-new appearance with minimal effort, eliminating the need for polishing and reducing the reliance on harsh cleaning chemicals.
2. Lightweight and Strong: These fully forged aluminum wheels are approximately 12 pounds lighter than their steel counterparts, weighing only 16.9 pounds each. This weight reduction improves fuel efficiency, handling, and overall performance.
3. Improved Heat Management: The fully forged aluminum construction provides superior heat dissipation, extending the life of both brakes and tires.
4. Corrosion Resistance: The unique Dura-Bright® finish and machine-finished inner wheels resist corrosion, providing a longer service life compared to traditional steel wheels.
5. Optimized Design for Better Performance: The M-Series™ wheels feature an optimized design that includes six elongated hand holes for improved airflow and cooling, enhancing the overall performance and look of your vehicle.

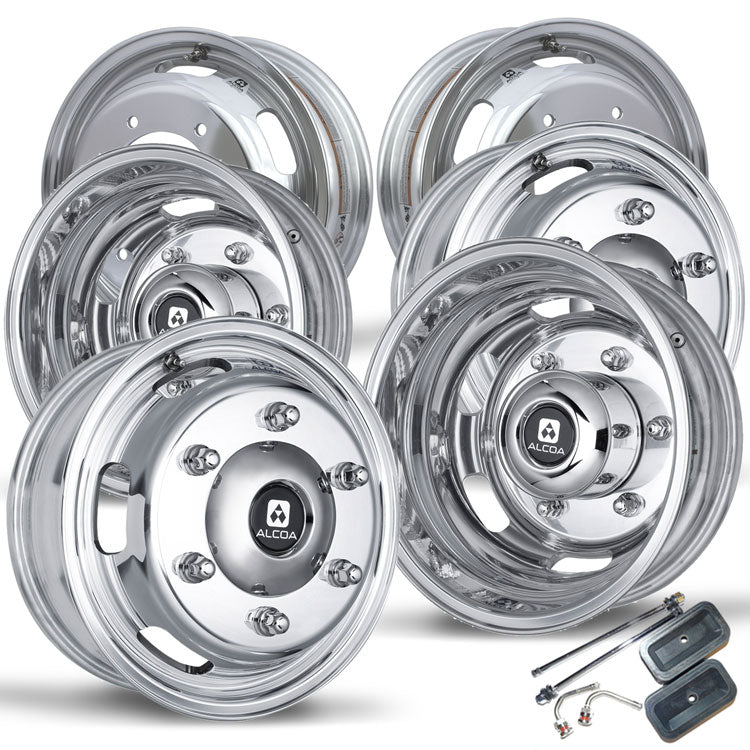

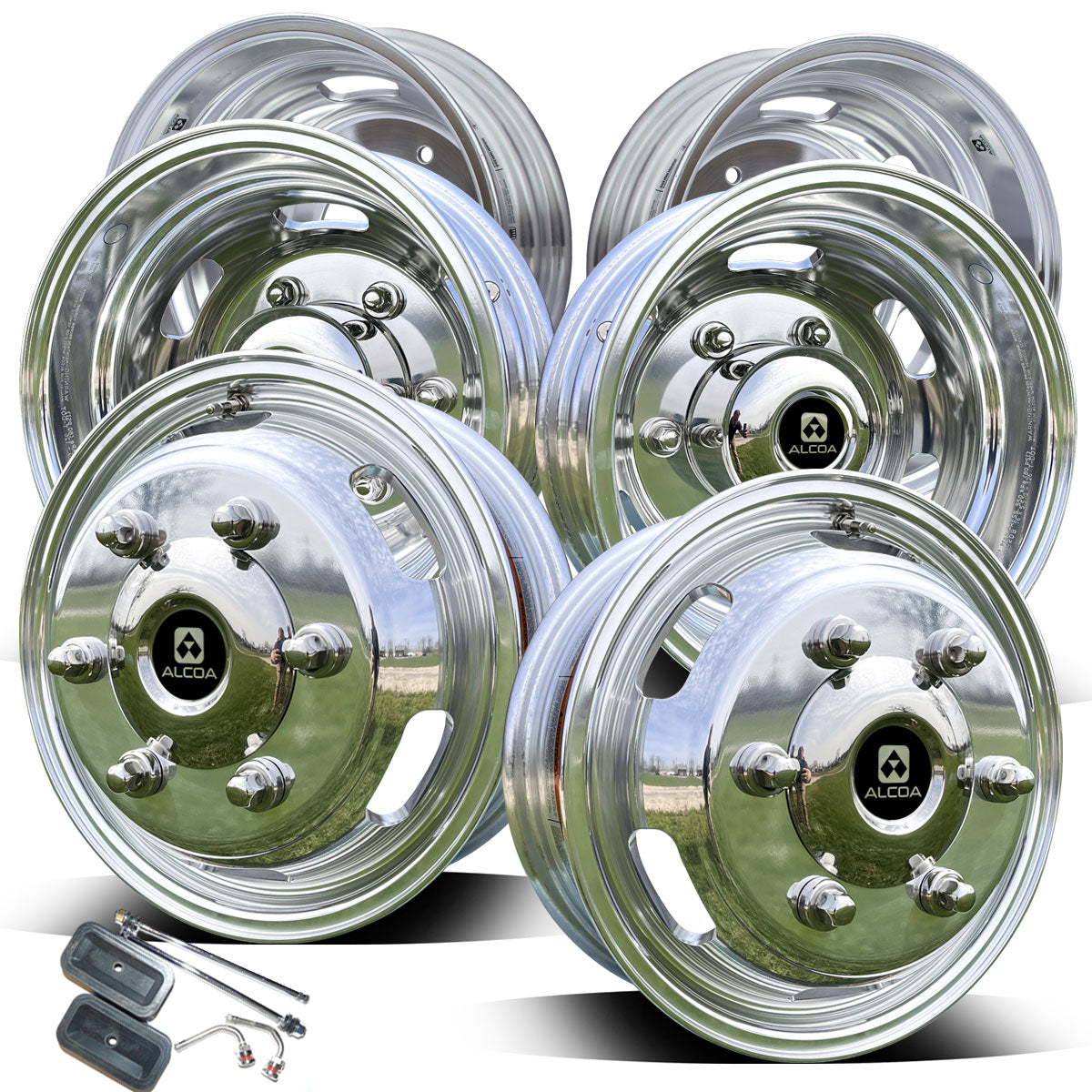

Kit Components:
• 2 - Front Alcoa Dura-Bright® EVO 16” Wheels (251801DB)
• 2 - Rear Alcoa Dura-Bright® EVO 16” Wheels (251802DB)

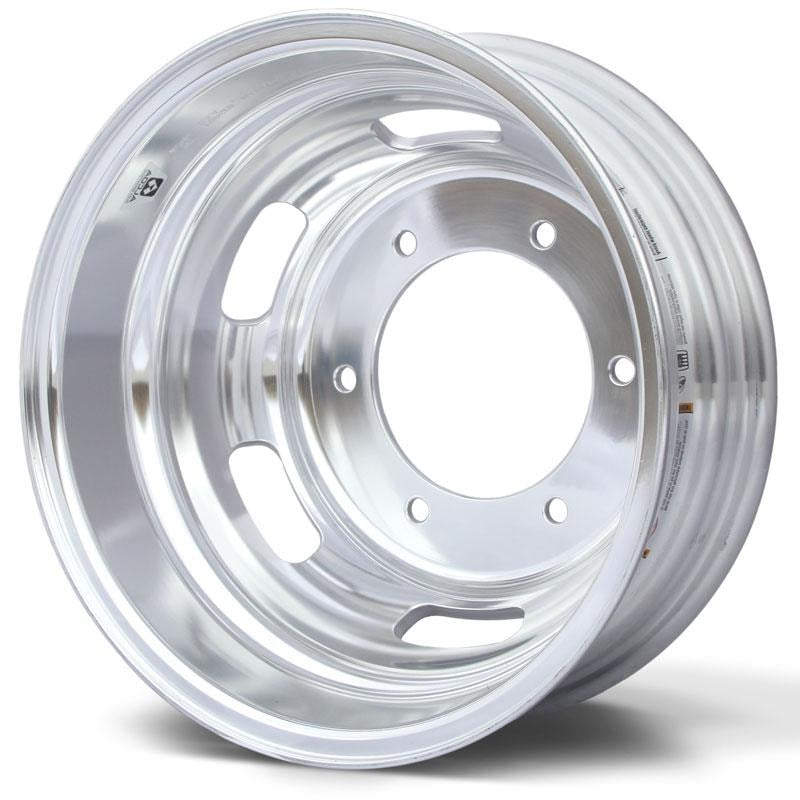

• 2 - Inner Machine-Finished Alcoa Wheels (251800)
• 2 - Front Stainless Steel Alcoa Hub Covers (021000)
• 2 - Rear Stainless Steel Alcoa Hub Covers (022000)
• 24 - Stainless Steel Alcoa Lug Nut Covers (000135-24)
• 2 - 7” Reverse Mount Chrome Valve Stems for Inner Duals
• 2 - 3.75” Triple Bend Chrome Valve Stems for Outer Duals
• 2 - Oval Rubber Grommet Stabilizers
• 1 - Packet of Loctite (to secure Reverse Mount Stems)
Wheel Specifications:
• Material: 6061 Fully Forged Aluminum
• Finish: Dura-Bright® EVO for outer wheels; Machine Finished for inner wheels
• Mounting Setup: Hub Pilot Dual-Mounting
• Wheel Size: 16” x 5.5”
• Bolt Pattern: 6x205
• Hub Bore Diameter: 161.1mm
• Hand/Vent Holes: 6 Elongated
• Wheel Offset: 4.94”
• Disc Thickness: .36”
• Weight: 16 lbs per wheel
• Max Load & Inflation: 2337 lbs @ 80 psi
• Installed Valve Stem: 54MS00
Vehicle Compatibility:
• Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
• Freightliner 3500 DRW Sprinter Van & Cab Chassis
• Dodge 3500 DRW Sprinter Van
Replaces Parts:
• Part number: 25080
Additional Notes:
This comprehensive 6-wheel kit is designed to replace all six steel wheels on your Sprinter 3500, providing a complete upgrade to fully forged aluminum wheels with a combination of Dura-Bright® EVO finished wheels for the outer positions and machine-finished wheels for the inner duals. This setup ensures that you maintain the superior performance and aesthetics of your vehicle while reducing overall weight and improving corrosion resistance.
These wheels fit stock OE lug nuts (not included). If you are using aftermarket wheels with shank lug nuts, you will need to purchase OE lug nuts separately.
By upgrading to this 6-wheel kit, you benefit from the unmatched quality and performance of Alcoa wheels, enhancing your vehicle’s durability, appearance, and efficiency.
