16x5.5 Alcoa Sprinter 3500 Dura-Bright® Evo 4 Wheel Package

Alcoa Wheels
25180DB with Caps & Extensions
In Stock - Free Shipping


Free Shipping on All Orders!

Wheel kit for a Mercedes-Benz, Freightliner, Dodge 3500 Sprinter. Transform your RV or Motorhome with a set of 16" Dura-Bright® EVO aluminum rims from Alcoa. Alcoa's Dura-Bright® EVO is the world's easiest and most trusted way to keep your aluminum wheels shining bright.

Customers are Viewing this Product
16x5.5 Alcoa Sprinter 3500 Dura-Bright® Evo 4 Wheel Package

Discover the no-polish, easy-maintenance way to long-lasting, bright & brilliant wheels with Alcoa's Dura-Bright® Finish. The Dura-Bright® shine holds for hundreds of washes and thousands of miles without polishing. Alcoa's Dura-Bright® wheels are easy to care for and eliminate the need for caustic cleaning products, to further protect the environment and reduce maintenance costs. It's all due to Alcoa's unique production process - which includes taking their already illustrious Mirror Polished aluminum and impregnating it with their proprietary blend of chemicals. This blend bolsters it's shine and is guaranteed not to develop filiform corrosion for 10 years, will not blister or peel due to loss of adhesion of the surface treatment.

These wheels are M-Series™ wheels that are designed specifically for the Sprinter 3500. They are characterized by their 16" x 5.5" J type wheel that features 6 elongated hand holes for optimal venting and a sleek design that's bound to improve your styling on RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis.

The attractive fully forged aluminum used in these wheels is light weight, provides corrosion resistance, and has improved heat management for extended brake and tire life. They only weigh 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the quality that the Sprinter 3500 is known for.

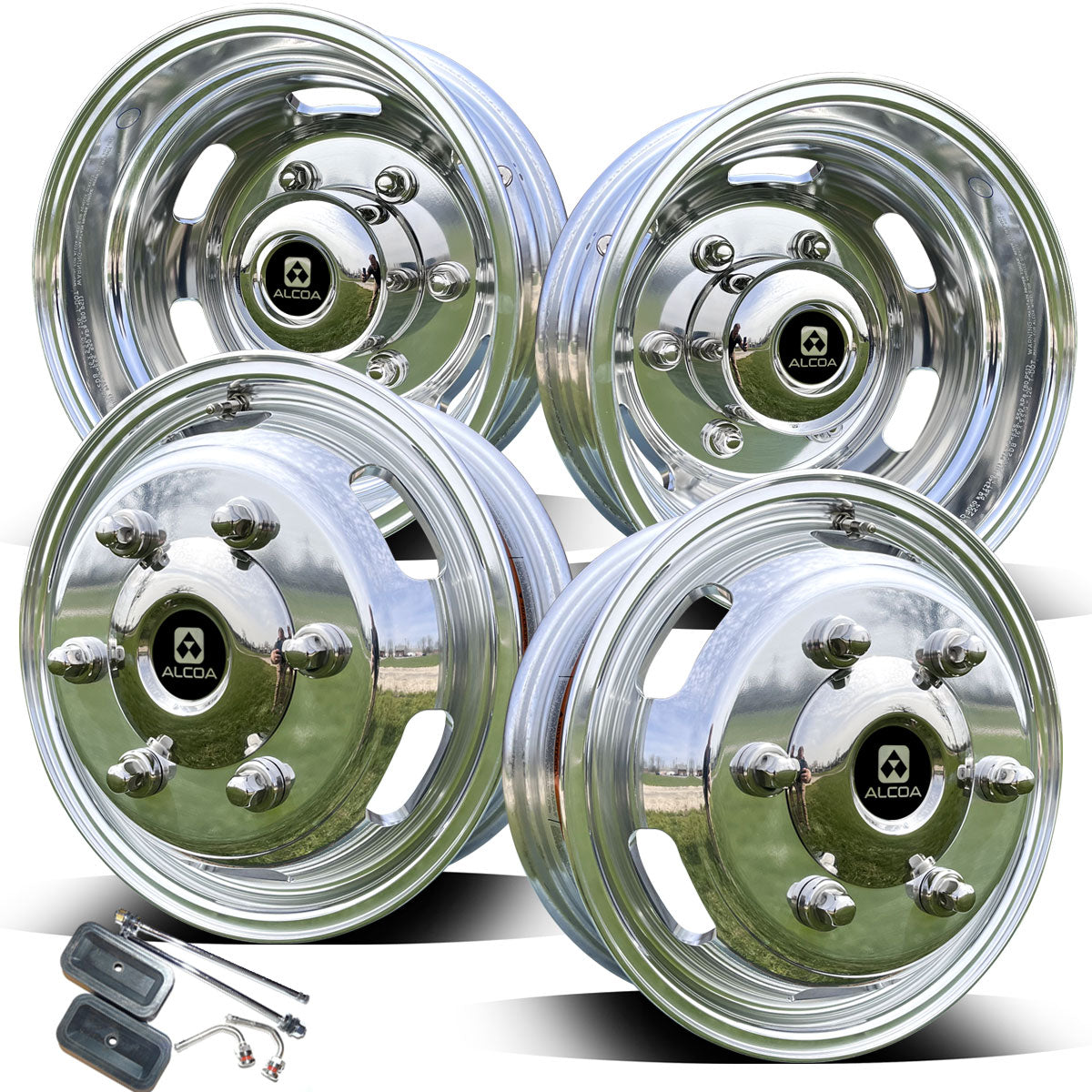

Kit Includes:

2 - Front Alcoa Dura-Bright® EVO 16" Wheels (251801DB)
2 - Rear Alcoa Dura-Bright® EVO 16" Wheels (251802DB)

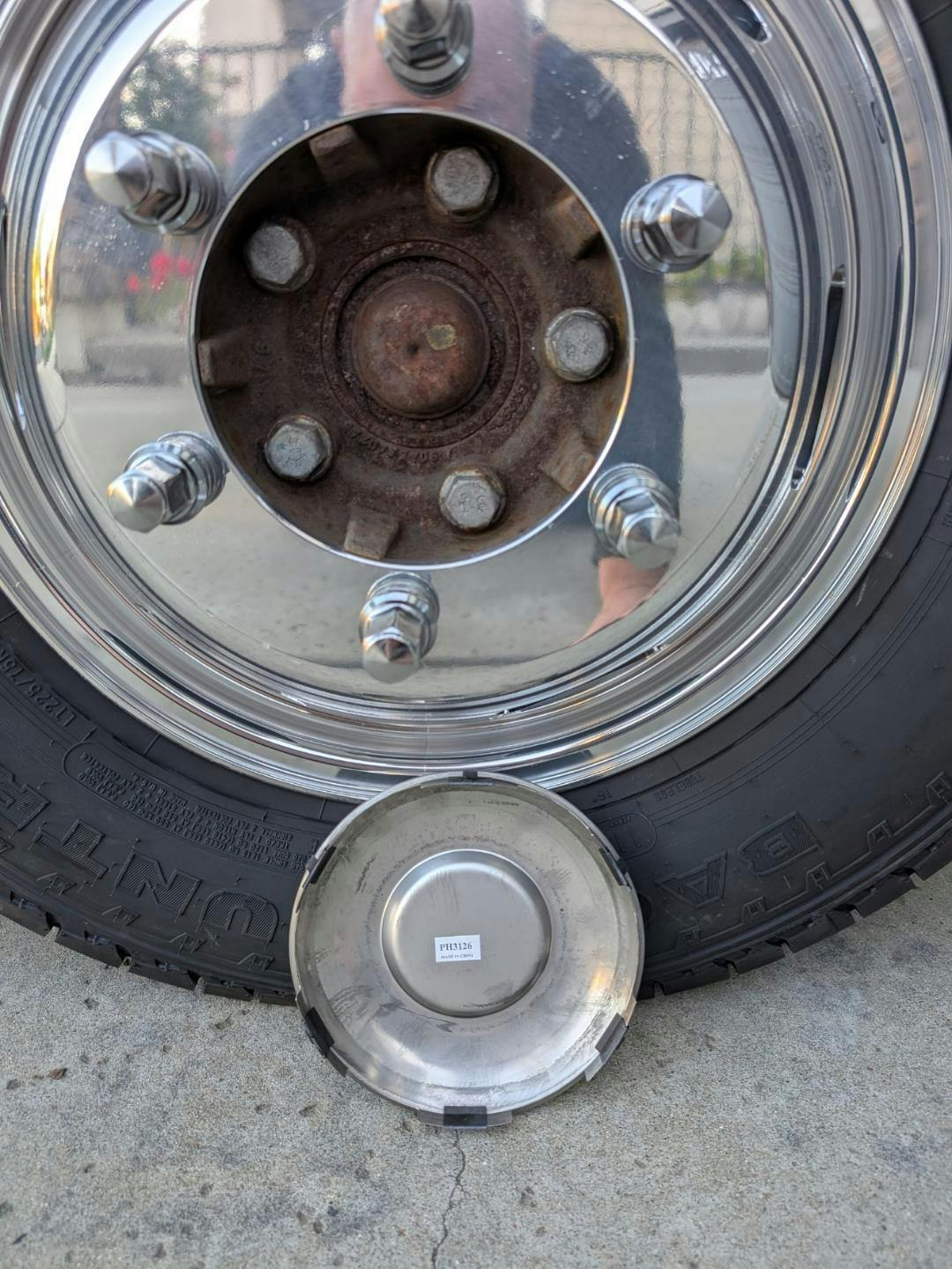

2 - Front Stainless Steel Alcoa Hub Covers (021000)
2 - Rear Stainless Steel Alcoa Hub Covers (022000)
24 - Stainless Steel Alcoa Lug Nut Covers (000135-24)
2 - 7” Reverse Mount Chrome Valve Stems for Inners Duals
2 - 3.75" Triple Bend Chrome Valve Stems for Outer Duals
2 - Oval Rubber Grommet Stabilizers
1 - Packet of Loctite (To secure Reverse Mount Stems)

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Dura-Bright® EVO
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16" x 5.5"
Bolt Pattern: 6x205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 - Elongated
Wheel Offset: 4.94"
Backspacing: N/A
Disc Thickness: .36"
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00

Additional Information:

Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van
Replaces Parts:
Recommended Tire Sizes:

Similar Wheel Options:

Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
