22.5X8.25 ATX 10X285MM HUB PILOT BLACK "TREX" FRONT
Free Shipping on All Orders!

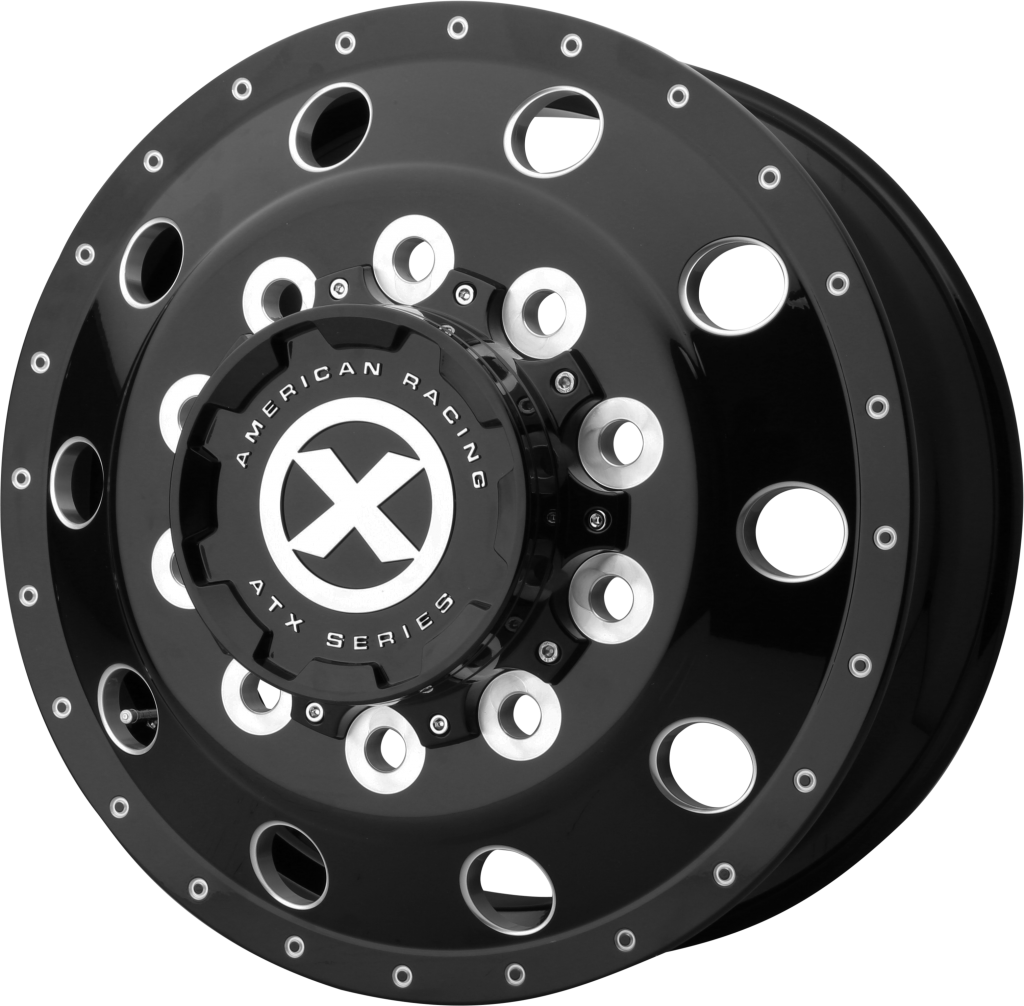

Black Classic Round Hole Design Aluminum Semi Truck Wheels. The strongest and toughest wheels in the industry. Through the highest quality forged 6061 alloy available combined with years of experience in engineering high performance racing wheels ATX has maximize strength to weight ratios and provide some of the highest load limits in the industry. Not to mention gloss black finish is formulated to last against the harshest conditions and road chemicals.
Styled after the legendary and original American Racing wheel the "TREX" is the iconic style that epitomizes custom wheels. Available in Gloss Black with special window milling and polished.
This is the standard 11r22.5 rim that will fit the Front (Steer) position of most new trucks including:
- Peterbilt & Kenworth Trucks
- Freightliner & International Trucks
- Mack, Western Star, & Volvo
Wheel Size: 22.5 x 8.25
Part Number: AO40522510301H
Finish: Aluminum Painted Black
Position: Front / Steering
10-Hole, 285.75mm Bolt Circle, 220mm Bore
Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer
Weight: 49.6 lbs
Max Load & Inflation
8040lbs @ 130psi
Installed Valve: TR545D
Wheel Offset: 6.59"
Disc Width: .875"
5 Year Warranty
Recommended Tire Size:
Free Ground Delivery
We strive to get all orders out same day, if ordered before 2:00pm EST. We offer Free Shipping on all items, and ship most items on FedEx Ground. With multiple warehouses across the country most items are a 2 day transit time.
On orders of 12 wheels or more, customers must have a commercial address for bulk discount, or be willing to pick up pallet at local terminal.
On FedEx Express orders, Orders must be in by 1:00pm EST to give express delivery driver the 4 Hour window they require. Prices for express are displayed at checkout.
We are happy to ship to our international customers. Just follow the checkout process and shipping fees will display at checkout with no obligation to purchase.
There will be a 20% restock fee on all returned items. Inbound and outbound freight is non-refundable. If you received free inbound freight that charge will be deducted from your credit. Full Details
If you have any questions don't hesitate to call or text 800-830-4547
