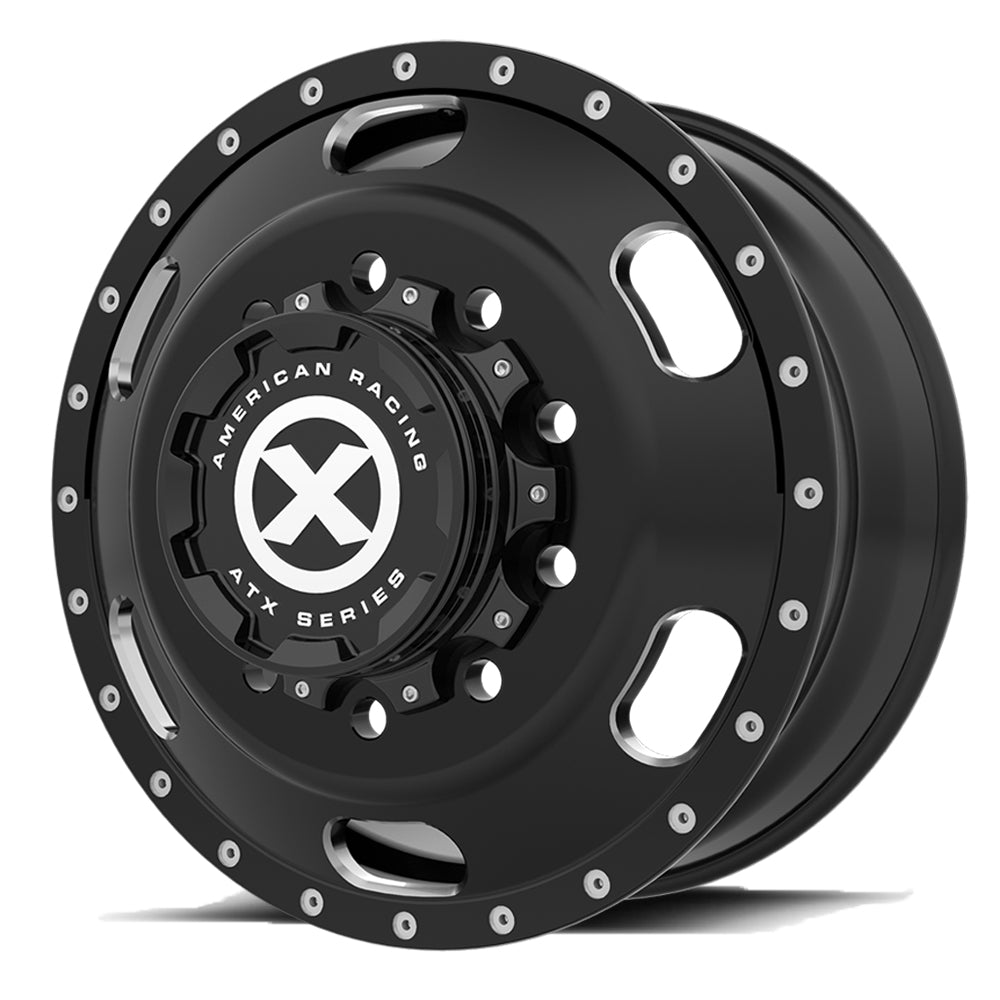

22.5 Satin Black Aluminum "Indy" Wheel Kit
Free Shipping on All Orders!

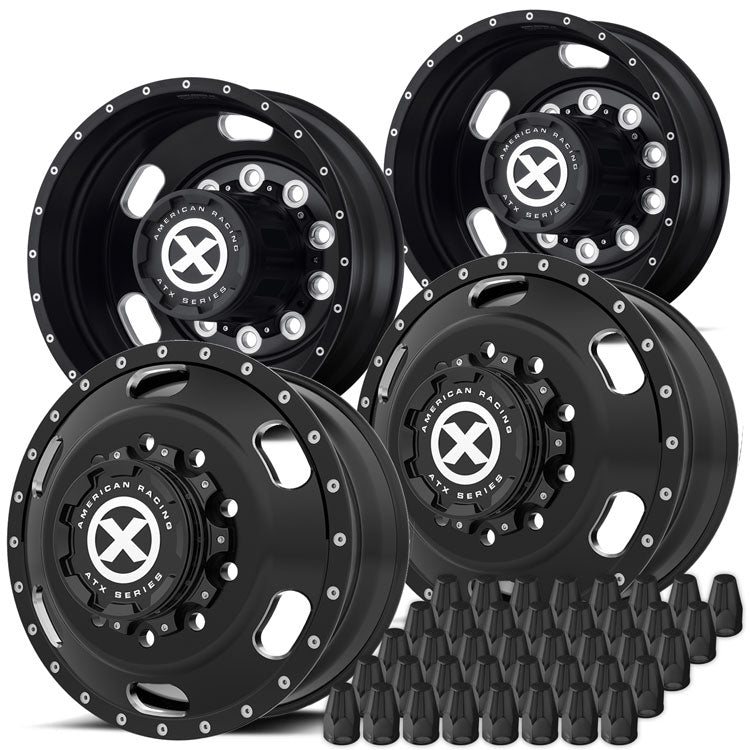

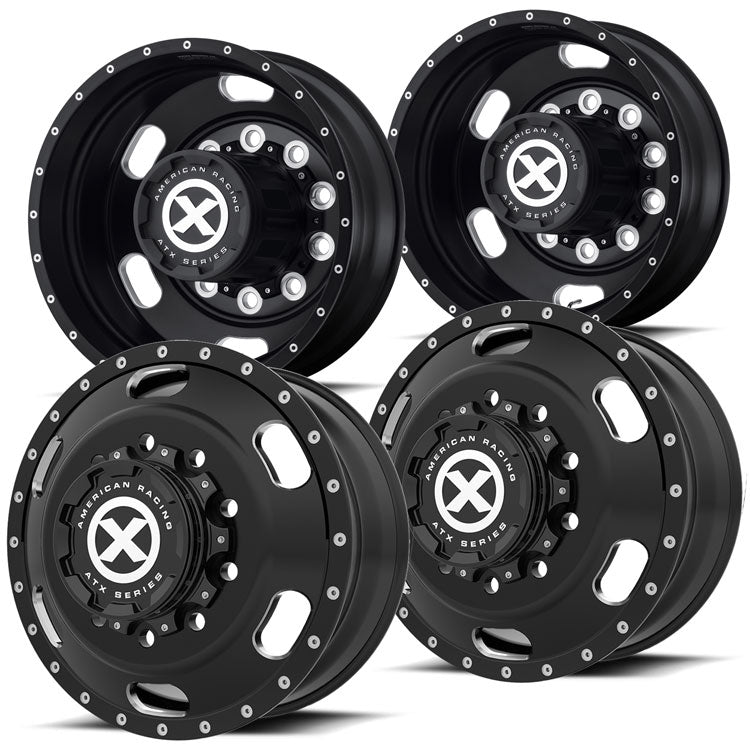

Satin Black Semi Truck Wheel KitIncludes Hub & Lug Covers
2 - ATX Indy Black Front Milled (AO40222510901)
2 - ATX Indy Black Rear Milled (AO40222510902)
Included Hub & Lug Cover Options:
Black Hub Covers

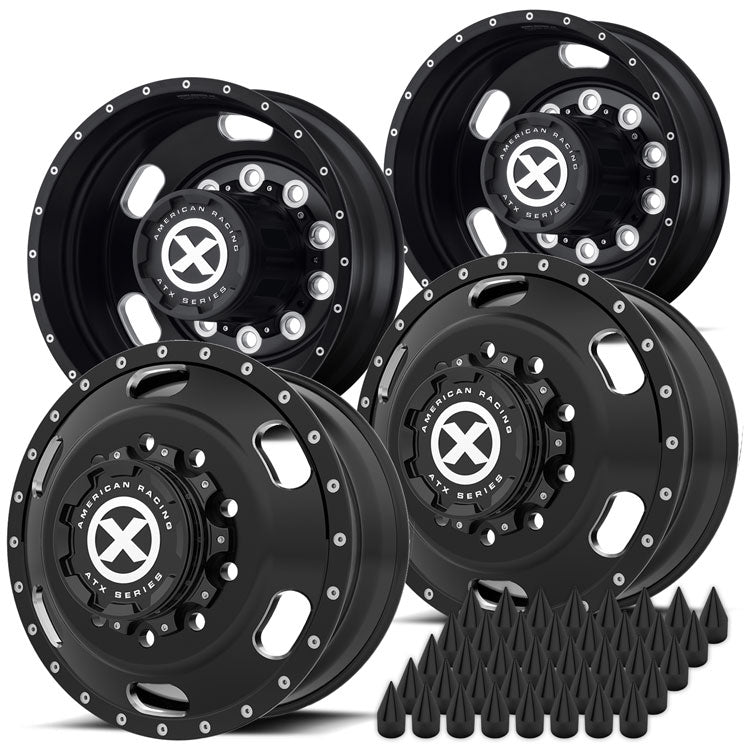

Black Spiked Lug Covers
Black Bullet Lug Covers
The strongest and toughest wheels in the industry. Through the highest quality forged 6061 alloy available combined with years of experience in engineering high performance racing wheels ATX has maximize strength to weight ratios and provide some of the highest load limits in the industry. Not to mention satin black finish is formulated to last against the harshest conditions and road chemicals.
Influenced by American Racing original Indy car wheel with the legendary oval windows. Available in Satin Black with special window milling and polished. Slotted and un-Slotted Cap.
This is the standard 11r22.5 rim that will fit the Front (Steer) position of most new trucks including:
Peterbilt & Kenworth Trucks
Freightliner & International Trucks
Mack, Western Star, & Volvo
Wheel Size: 22.5 x 8.25
Finish: Aluminum Painted Black
10-Hole, 285.75mm Bolt Circle, 220mm Bore
Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer
Weight: 49.6 lbs
Max Load & Inflation
8040lbs @ 130psi
Installed Valve: TR545D
Wheel Offset: 6.59"
Disc Width: .875"
5 Year Warranty
Recommended Tire Size:
