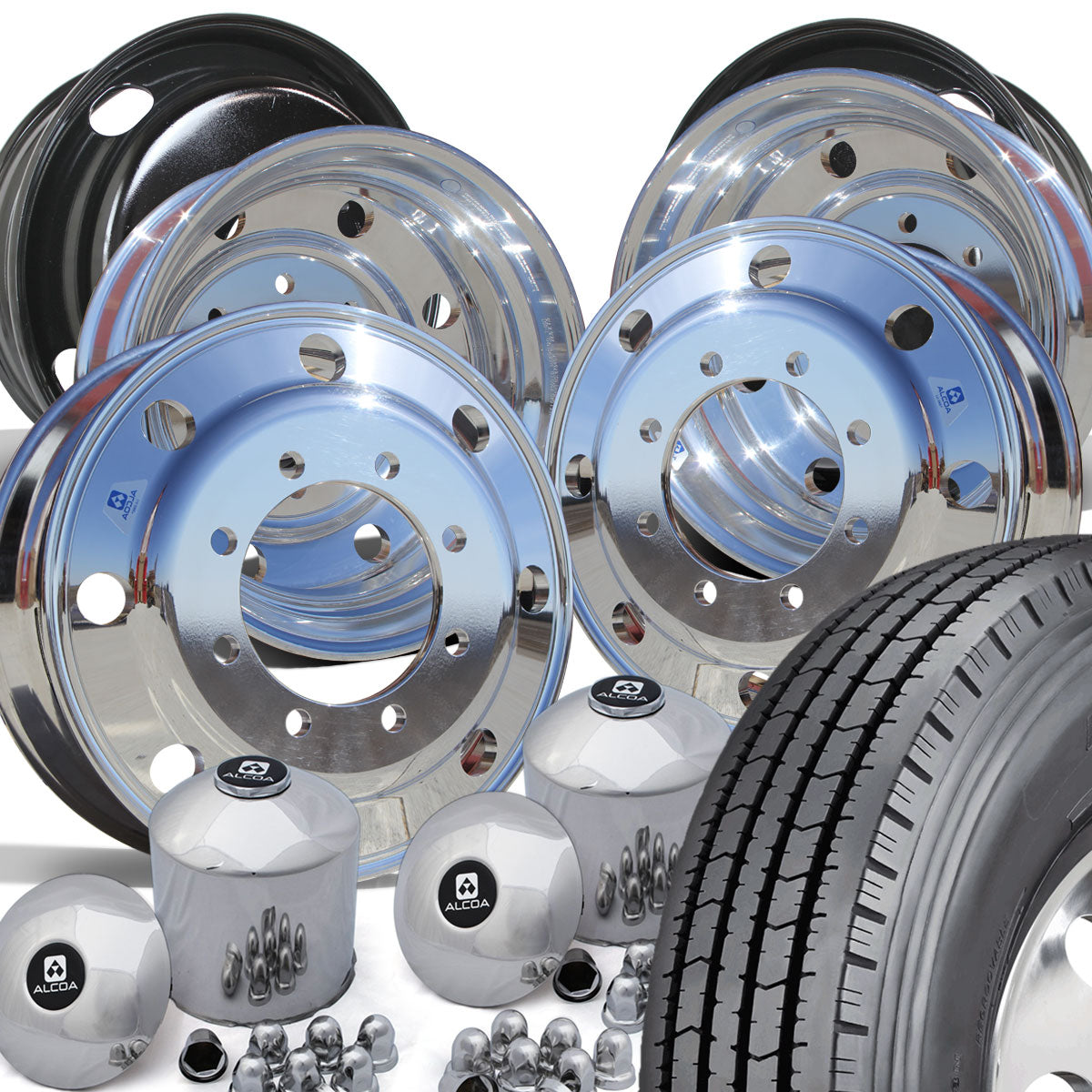

Ironman I-181 HIGHWAY TREAD MOUNTED ON 22.5 Alcoa Aluminum Polished Chevy 4500/5500 Wheel Kit (8x275)

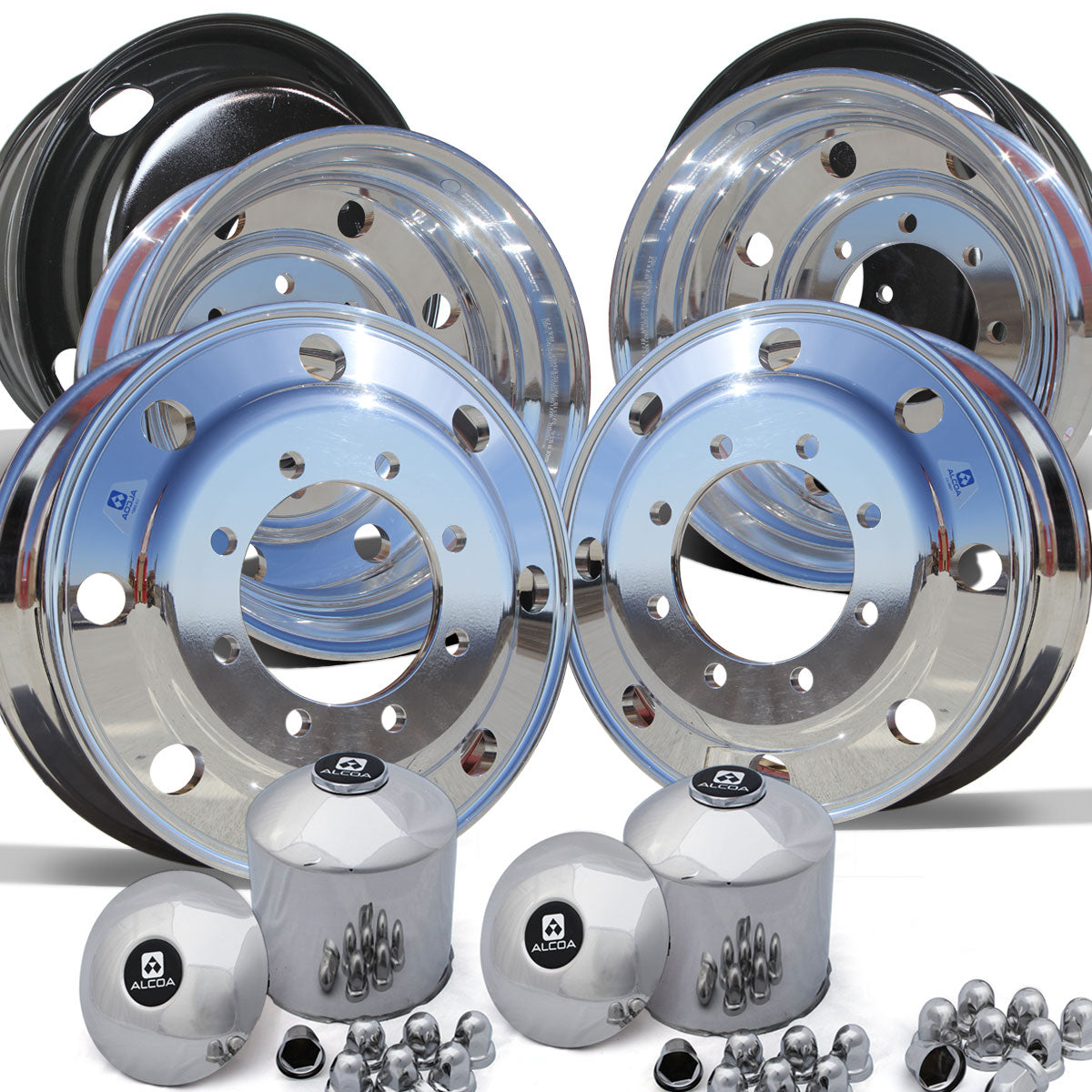

22.5" Alcoa High Polished Both Sides Chevy 4500/5500 Wheel Kit (8x275)

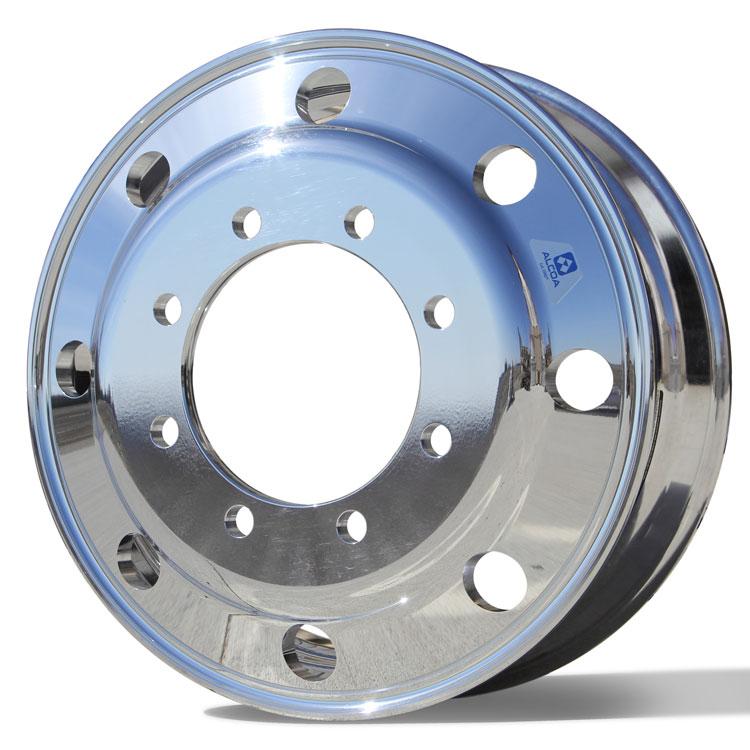

Front View of 22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides

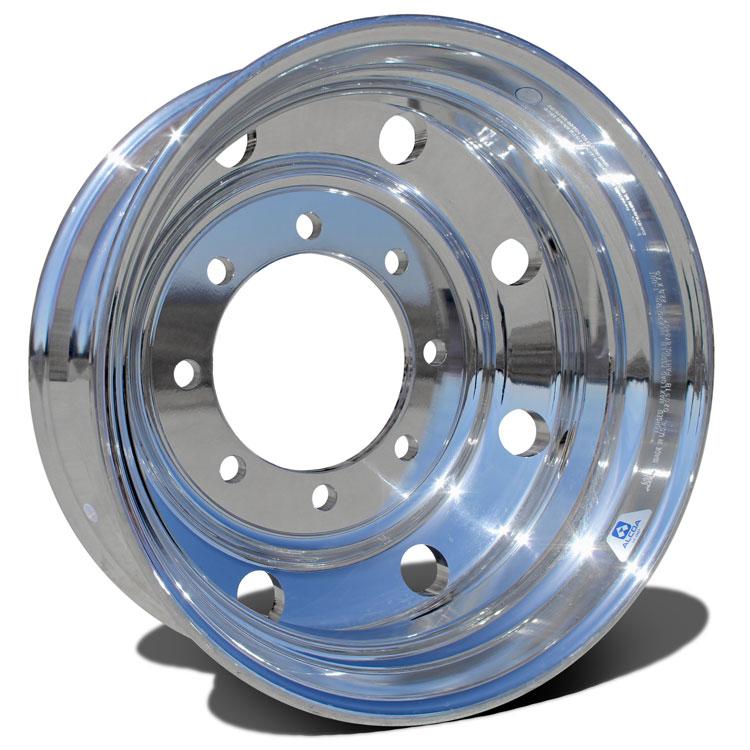

Rear View of 22.5x7.5 Alcoa 8x275mm Hub Pilot High Polished Both Sides

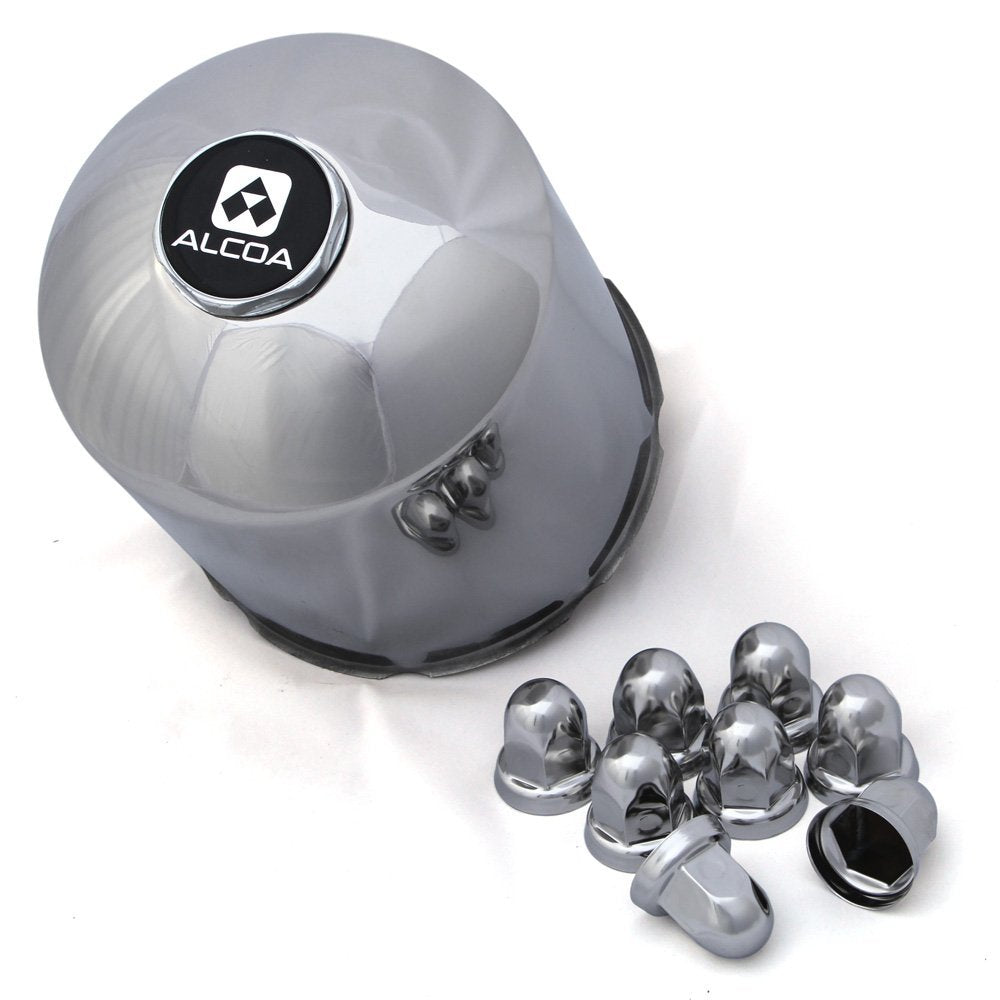

Front Alcoa Stainless Steel Hub & Lug Cover Kit (140230B)
Rear Alcoa Stainless Steel Hub & Lug Cover Kit (109176B)

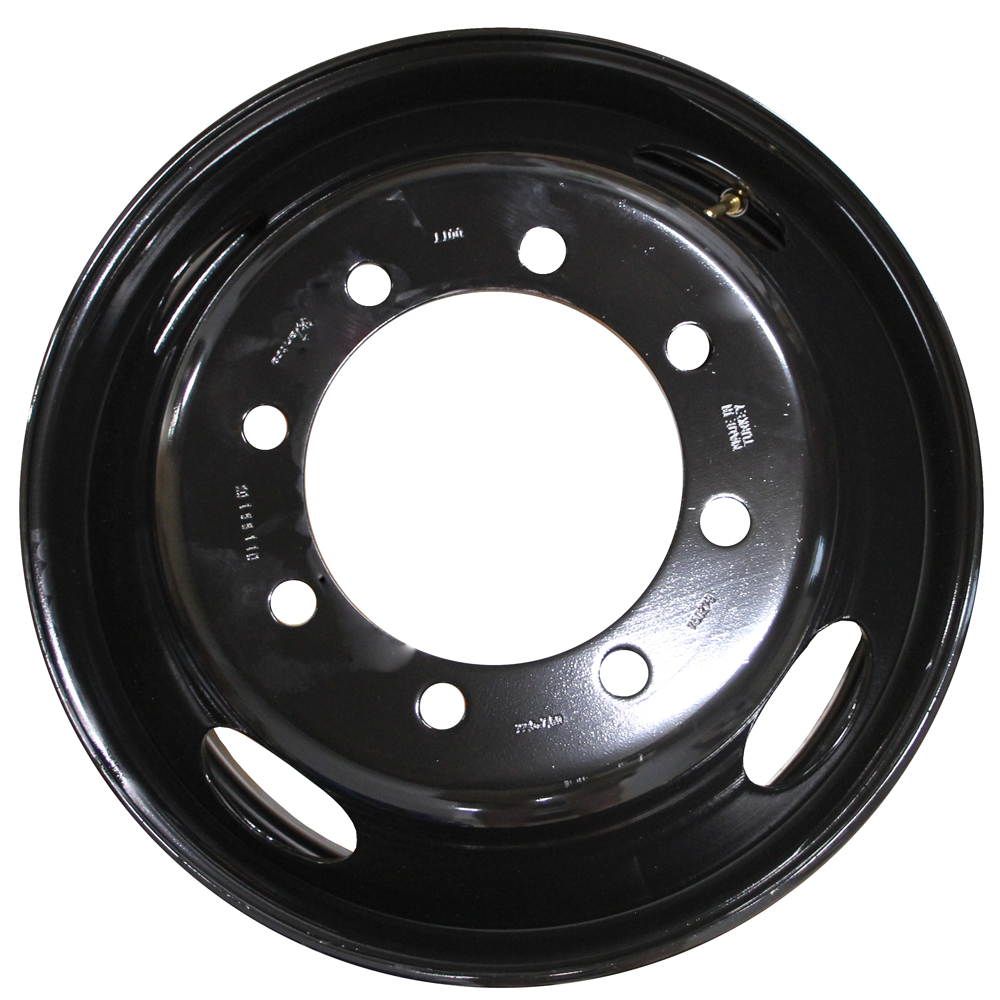

Front View 22.5x7.50 Jantsa 8x275mm Hub Pilot 4 Hand Hole Black Steel

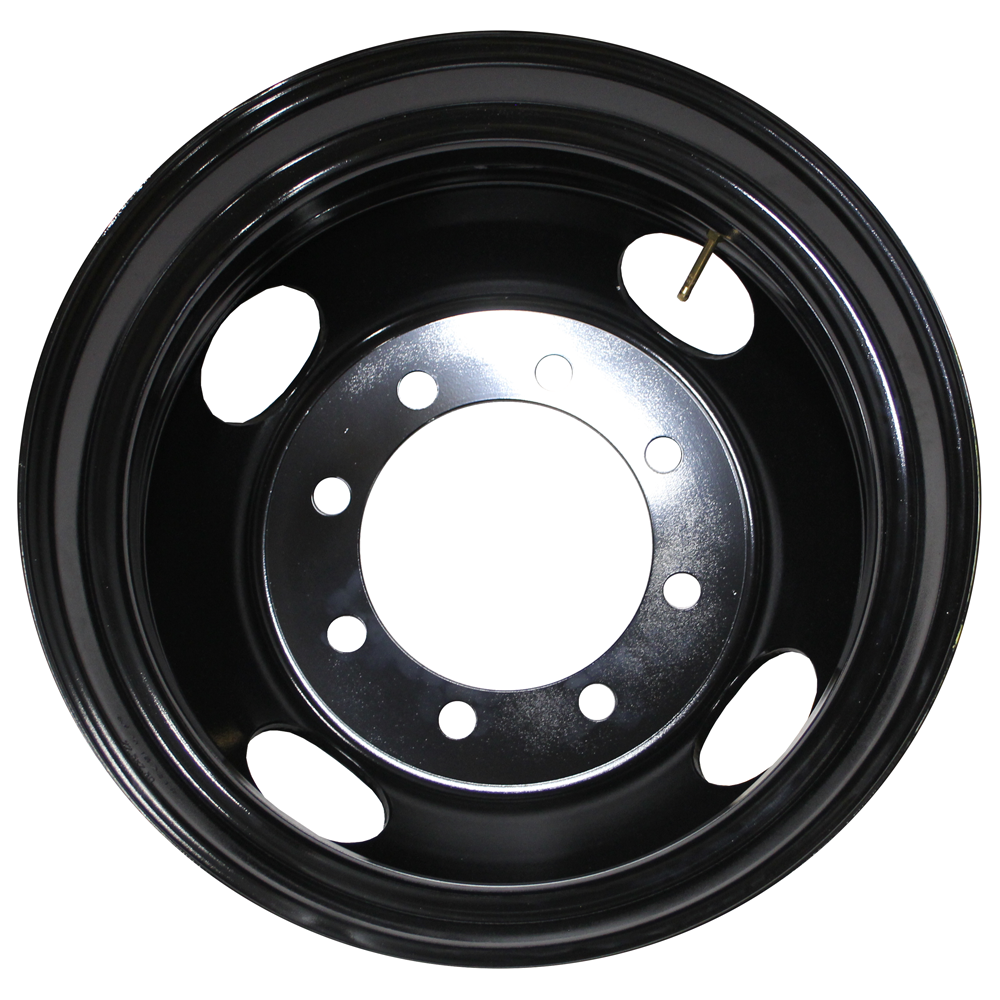

Rear View 22.5x7.50 Jantsa 8x275mm Hub Pilot 4 Hand Hole Black Steel
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all US orders*

Ironman I-181 HIGHWAY TREAD MOUNTED ON 22.5 Alcoa Aluminum Polished Chevy 4500/5500 Wheel Kit (8x275)

Alcoa Wheels
87340-I181
Out of stock

$5,249.00

Free Shipping on All Orders!

Step up to a set of 22.5” Direct Bolt On high polished aluminum wheels (8x275). Fits most 8 lug medium duty trucks, including GMC & Chevrolet 4500, 5500 & Freightliner Motor Homes. Ironman highway tread tires come mounted and balanced.

Customers are Viewing this Product
Ironman I-181 HIGHWAY TREAD MOUNTED ON 22.5 Alcoa Aluminum Polished Chevy 4500/5500 Wheel Kit (8x275)

Thinking of stepping up to 22.5" wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5" x 6.75" wheels up to the 22.5" x 7.5" for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height. The 8x275 bolt pattern also fits most class A motorhomes.

Ironman I-181 Tires are all position ribbed tires that have excellent directional stability to alleviate abnormal wear. The five rib design delivers long mileage and shoulder wear resistance on steer axle use. Microsipes fight onset of irregular wear and provide better mileage. Backed by a 60 month limited warranty and covers 1 retread.

Through years of innovation and advanced technology, Alcoa has proven itself as the leader in aluminum wheel manufacturing. Their forged aluminum wheels are both lightweight and durable. They increase your fuel economy and boost your productivity by requiring less maintenance. More vehicles on the road are fitted with forged aluminum wheels from Alcoa than any other brand. That is why when you think aluminum wheels, you think Alcoa.

Kit Includes:

6 - Ironman Highway Tires (I181 255/70R22.5)
4 - Alcoa Aluminum Wheels (873407)
2 - Jantsa Black Steel Inner Dual Wheels (750279)
2 - Front Alcoa Hub & Lug Cover Kit (140230B)
2 - Rear Alcoa Hub & Lug Cover Kit (109176B)

Tire Specs:

Tire Size: 255/70R22.5 (36.61")
Ply & Load Range: 16 / H
Max Load Single: 5510 lbs @ 120 psi
Max Load Dual: 5070 lbs @ 120 psi
Tread Depth: 18.3/32"
Weight: 88.97 lbs

Aluminum Specs:

Material: 6061 Fully Forged Aluminum
Finish: High Polished Both Sides
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 8 x 2.00"
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .84"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D

Steel Specs:

Material: Steel
Finish: Painted Black
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 8x275
Hub Bore Diameter: 221.1mm
Hand/Vent Holes: 4
Wheel Offset: 6.02"
Backspacing: N/A
Disc Thickness: .43"
Weight: 76 lbs
Max Load & Inflation: 7100 lbs @ 120 psi
Installed Valve Stem: TR-573-E17

Additional Information:

Fits These Applications:
Motorhome & RV Workhorse Chassis
Chevrolet 4500/5500 Kodiak
GMC 4500/5500 Topkick
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)

Replaces Parts:
873401
873402
225750
29028
90614

Want a different tread pattern?



Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
