Rear Wheel, 16.5" x 5.5" Alcoa Dura-Bright EVO Aluminum. Has 6 Lug holes and 205mm Bolt Circle with 161.1mm Bore Diameter.
Beige Winnebago Navion Motor Home Riding on 16.5" x 5.5" Alcoa Dura-Bright EVO Aluminum. Has 6 Lugs and 205mm Bolt Circle
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    Fast shipping on all orders

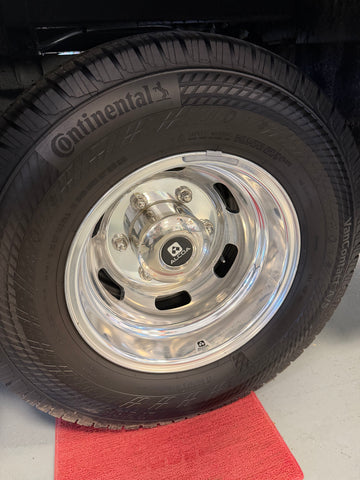

16" x 5.5" Alcoa 6x205mm Sprinter 3500 Dura-Bright® EVO Rear

Alcoa Wheels


Free Shipping on All Orders!

Transform your RV or Motorhome with a set of 16" Dura-Bright® EVO aluminum wheels from Alcoa. Aluminum wheels are bound to lighten the weight of your vehicle. This Alcoa wheel kit will fit your Mercedes-Benz Sprinter 3500 DRW Rear Axle. Dura-Brights keep your wheels shining with no additional polishing necessary.

Customers are Viewing this Product
16" x 5.5" Alcoa 6x205mm Sprinter 3500 Dura-Bright® EVO Rear

This new M-Series™ wheel is designed for the Sprinter 3500. It'll improve your styling and exterior design options for RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis. This fully forged aluminum wheel provides corrosion resistance, lighter weight and improved heat management for extended brake and tire life. In addition aluminum wheels enhance the resale value of used vehicles at trade-in.

The 16 x 5.5 J type wheel features 6 elongated hand holes, providing optimal venting in combination with the excellent heat dissipation properties of aluminum. This attractive fully forged aluminum wheel weighs 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the service for which the Sprinter 3500 is known.

Discover the no-polish, easy-maintenance way to bright, shiny wheels that stay that way. Because the Dura-Bright™ production process penetrates the aluminum, these wheels keep their shine, even after hundreds of washes and thousands of miles, without polishing. Dura-Brights are easy to care for, are guaranteed not to develop filiform corrosion for 10 years, and will not blister or peel due to loss of adhesion of the surface treatment.

Eliminate the need for caustic cleaning products, further protect the environment and reduce maintenance costs. The innovative surface treatment will not chip, crack or peel and prevents filiform corrosion to keep the wheel looking its best with a lot less effort, saving you time and money.

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Dura-Bright® EVO
Position: *Rear Only*
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16" x 5.5"
Bolt Pattern: 6x205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 - Elongated
Wheel Offset: 4.94"
Backspacing: N/A
Disc Thickness: .36"
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00
Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van

Replaces Part:

Need an Enitre Wheel Kit?

Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
